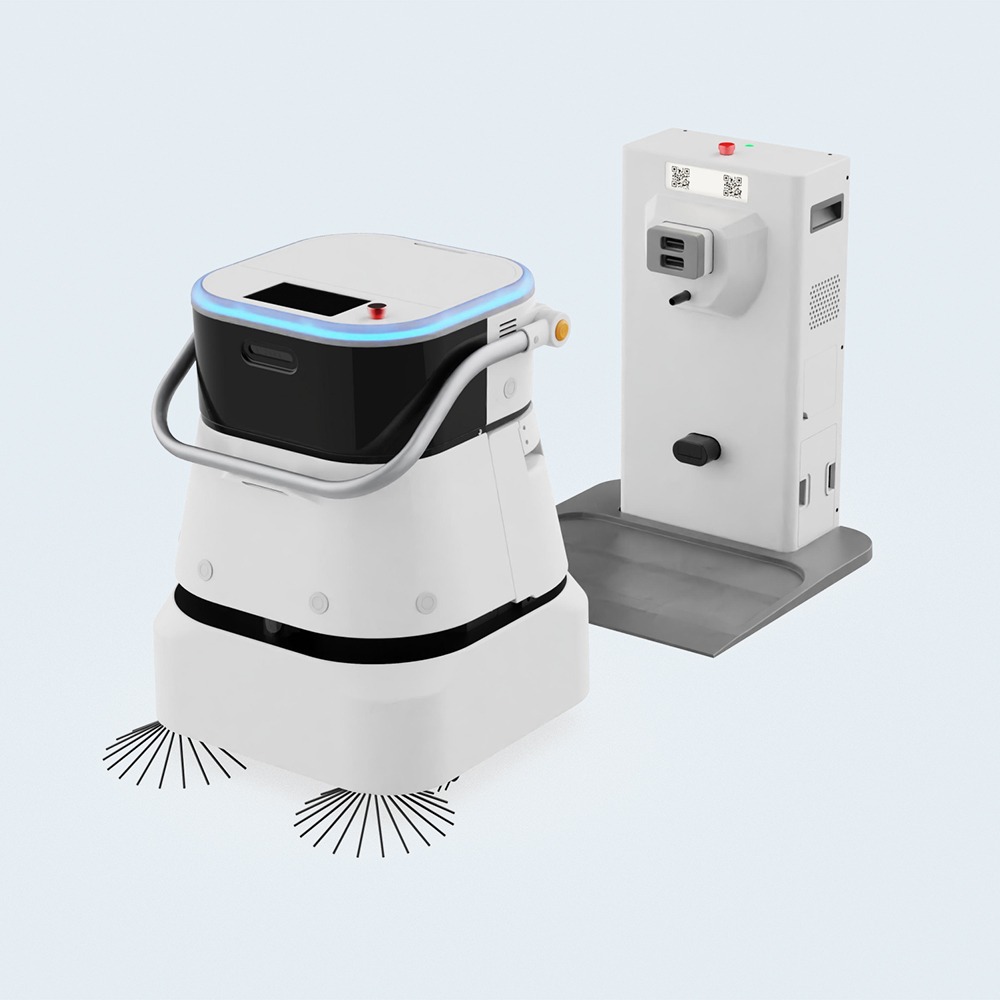

ACR-0440P 4-in-1 Cleaning Robot with Docking Station

Name: ACR-0440P 4-in-1 Cleaning Robot with Docking Station
Brand: PanPanTech
SKU: ACR-0440P

The ACR-0440P adds a fully automated smart docking station to its 4-in-1 cleaning capability, providing one-stop waste discharge, water refilling and charging — eliminating routine manual maintenance and supporting reliable 24/7 operation. Sweeping, vacuuming, scrubbing and mopping are independently controlled to handle soil on both soft and hard surfaces, extended side brushes reach 5 cm into gaps for precise zero-edge cleaning, and integrated AI recognises floors, obstacles and debris autonomously.

650/500m²/h sweep-vac / scrub

2.5–4 hruntime per charge

15 kPapeak suction

10,000 m²max. mapping area

Contact PanPanTech→Compare models

Product views

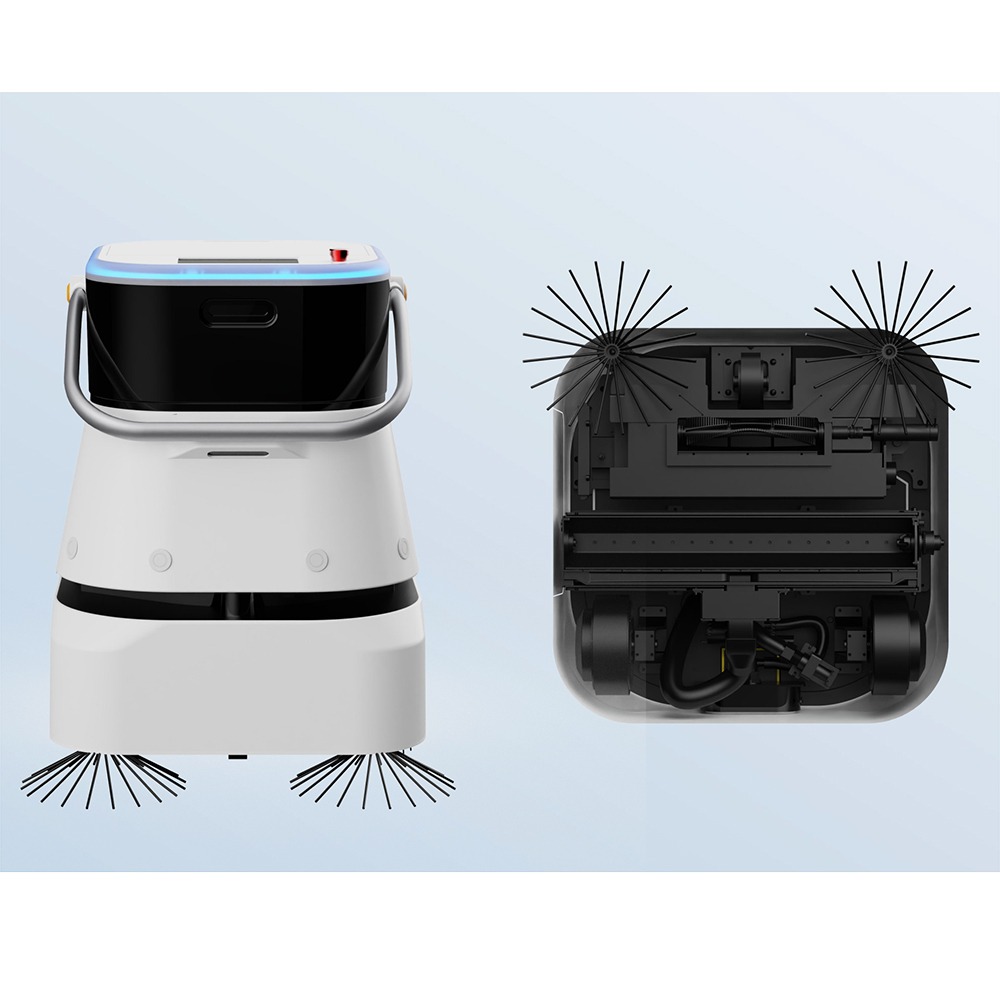

ACR-0440P photos and configuration views

Selected product images from the latest PanPanTech specification pack and matched supplier materials.

What it solves

Built around real site constraints

/01

Fully automated station for 24/7 operation

The station performs waste discharge, water refilling and charging in one place, removing routine manual maintenance and supporting round-the-clock operation.

/02

Four systems, independently controlled

Sweeping, vacuuming, scrubbing and mopping each have independent smart control for different soil types; sweeping and washing systems lift independently, with one-click mode switching.

/03

Extended side brushes reach 5 cm gaps

Densely bristled extended side brushes gather debris for precise zero-margin cleaning, reaching into gaps up to 5 cm deep.

/04

Dual dry/wet channel with 15 kPa peak suction

An efficient dual-channel system handles dry and wet waste with a peak suction power of 15 kPa.

/05

AI recognition of floors, obstacles and debris

Advanced AI enables precise autonomous recognition of floor types, obstacles and debris, overcoming the challenges of complex environments.

/06

Modular quick-release cleaning system

The cleaning system releases as modules for straightforward disassembly and maintenance, lowering the skill required for upkeep.

/07

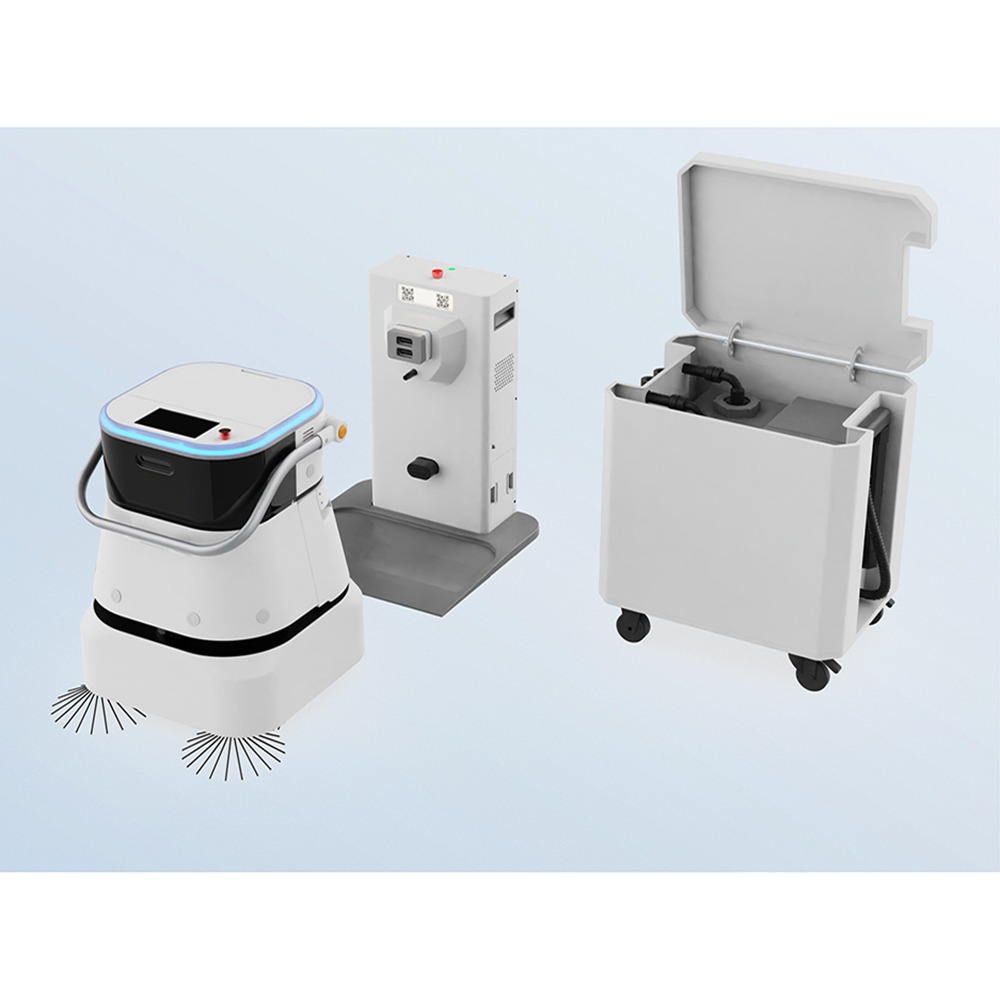

Optional mobile transfer station

An optional 600 × 450 × 725 mm transfer station (40 L / 40 L) addresses sites without fixed plumbing or undergoing reconfiguration.

Best-fit applications

Use these applications as the first filter, then send your route, floor material and operating schedule for model confirmation.

Shopping mallsOffices & business buildingsHospitals & healthcareHotels & convention centresAirports & transport hubsSchools & education parks

ACR-0440P

Technical specifications

Dimensions (L×W×H)506 × 506 × 660 mm

Weight50 kg

Ingress protectionIP33

Operating noise< 70 dB

Cleaning modesSweeping / vacuuming / scrubbing / mopping (4-in-1, independently controlled)

Scrubbing capacity500 m²/h

Sweeping & vacuuming capacity650 m²/h

Scrubbing / mopping width440 mm

Max. sweeping width600 mm

Max. suction15 kPa

Water flow rate80 – 200 mL/min

Roller brush speedScrubbing 167–500 rpm; vacuuming 200–500 rpm; side brush 100 rpm

Ground pressureScrubbing / mopping 20 N

Clean / recovery tank8 L / 8 L

Dust bag1.5 L

Battery capacity24 V / 36 Ah

Runtime2.5 h (sweeping & vacuuming) / 4 h (scrubbing)

Charging time3 hours

Charging parameters29.2 V / 13 A

Dimensions350 × 258 × 665 mm (excluding base)

Rated input100–240 V~ 50/60 Hz 5 A

Rated output29.2 V / 13 A

Automatic functionsWaste discharge / water refilling / charging

Dimensions600 × 450 × 725 mm

Clean / waste capacity40 L / 40 L

Sensor suite2D LiDAR, structured-light camera, RGB camera, ultrasonic radar

Max. mapping area10,000 m²

Narrowest passing width75 cm

Specifications are based on the latest PanPanTech product specification document. Final configuration should be confirmed through the website contact form.
