Indoor Cleaning

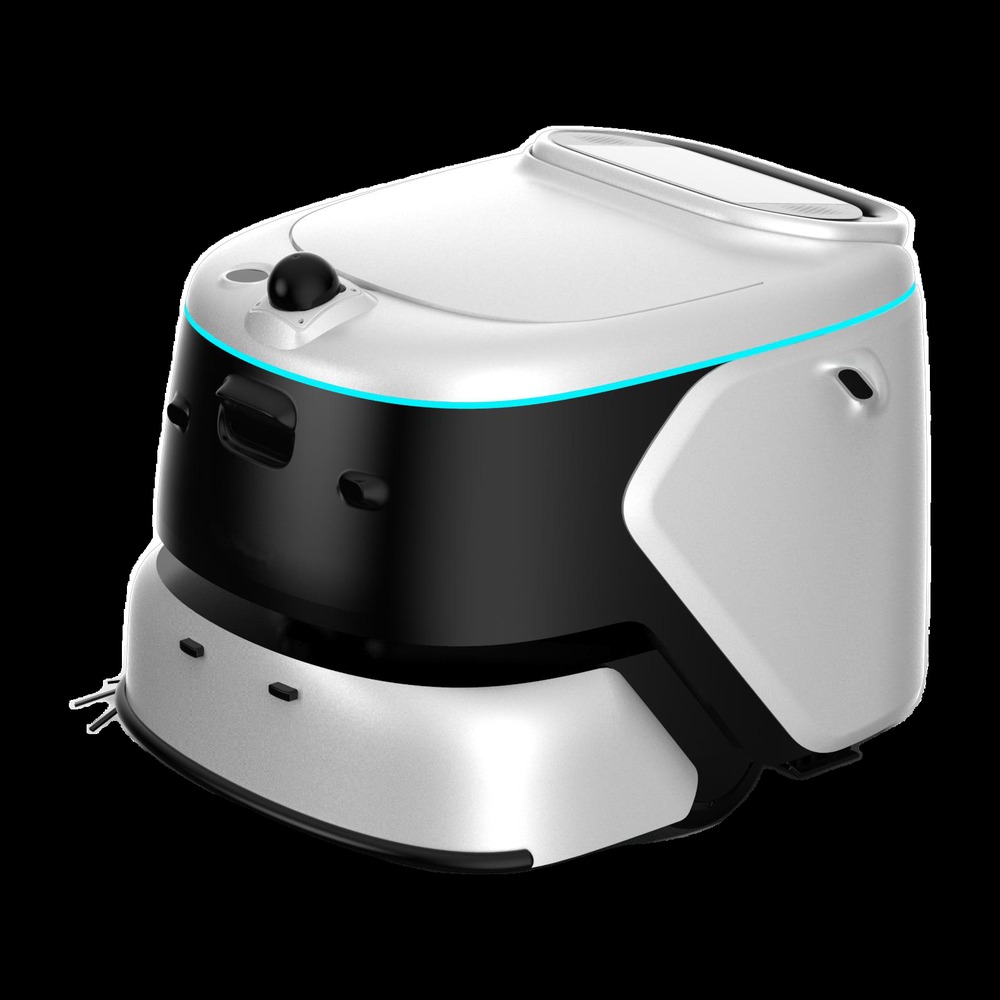

ACR-0520P Fully Autonomous Floor Scrubber with Working Station

Name: ACR-0520P Fully Autonomous Floor Scrubber with Working Station
Brand: PanPanTech
SKU: ACR-0520P

The ACR-0520P is the top configuration of the ACR-0520 platform, built for shopping centres, office towers, factories and transport hubs that need genuinely unattended 24/7 cleaning. Its working station connects directly to the water supply and drain: the robot refills and empties itself during work, the station washes the roller brush, and detergent is dosed automatically. A 3D LiDAR and a wide-angle depth camera provide dual perception, while AI vision recognises 20+ object and stain classes and adjusts the cleaning strategy on its own.

520mm scrubbing width

~1,197m²/h scrubbing

93% water recovery

1.5h fast charge

Contact PanPanTech→Compare models

Product views

ACR-0520P photos and configuration views

Selected product images from the latest PanPanTech specification pack.

What it solves

A station that removes the manual steps around the clean

/01

Truly unattended

The station is plumbed to water supply and drain for automatic refilling and emptying, washes the roller brush itself and doses detergent from a built-in reservoir.

/02

Safe in complex spaces

Industrial 3D LiDAR plus a wide-angle depth camera build a centimetre-level model of the environment, predict moving objects and re-plan in milliseconds.

/03

AI recognition

Identifies 20+ targets such as paper, sauce spills and table legs for millimetre-level avoidance; switches to intensive mode on stubborn stains; an auxiliary light keeps vision working in low light.

/04

Dry behind the robot

A quick-release squeegee and high-power vortex suction fan reach 93 % water recovery, reducing residual water and slip risk. Squeegee blades change by hand.

/05

Three power modes

Fast charging in about 1.5 h, modular battery swap, or conventional direct charging — top up between tasks for high-frequency operation.

/06

Ergonomic push handle

Move the robot between areas, spot-clean or map a new site by hand with one-handed control and no specialist training.

Best-fit applications

Use these applications as the first filter, then send your site conditions and operating schedule for model confirmation.

Shopping centresOffice towersFactoriesHealthcare facilitiesHotelsTransport hubs

ACR-0520P

Technical specifications

Dimensions & Weight

Dimensions (L×W×H)723 × 600 × 569 mm

Net weight (excl. water)70 kg

Ingress protectionIP43

Cleaning Performance

Modes and capacityStandard / intensive scrubbing ~1,197 m²/h; standard / quiet sweep-vacuum, sweep-vacuum-mop and dust-mopping ~1,368 m²/h

Effective cleaning width520 mm roller brush

Edge cleaning0 cm from wall (to side brush)

Clean / recovery tank / dust bin15 L / 12 L / 1 L

Water recovery rate93 %

Battery & Runtime

Battery25.6 V / 40 Ah

Charging time< 2 h (fast charge approx. 1.5 h)

Runtime (100 % → 10 %)Standard scrubbing 3 h; sweep-vacuum / sweep-vacuum-mop 3 h; dust-mopping 20 h

Power optionsFast charge / modular battery swap / direct charge

Motion & Sensing

Working speed (all modes)0.6 m/s

Max. travel speed1.2 m/s

Sensors3D LiDAR · wide-angle depth camera · AI vision · auxiliary light

Working Station

WaterDirect connection to supply and drain; automatic refill and discharge

Self-cleaningAutomatic roller-brush washing

DetergentBuilt-in reservoir with automatic dosing

Dimensions / installationConfirmed per project (water supply, drain and power required)

Management

Fleet managementCloud platform and mobile app; remote diagnostics and OTA updates

Specifications are based on the manufacturer's technical confirmation sheet. Performance figures are obtained under defined test conditions; actual results depend on site conditions and operating mode. Products are continuously improved; specifications are subject to change without notice. Final configuration should be confirmed through the website contact form.
