ACR-0670 High-Suction Sweeping & Vacuum Robot

Indoor Cleaning

ACR-0670 High-Suction Sweeping & Vacuum Robot

The ACR-0670 is a high-suction sweeping and vacuum robot developed specifically for the garment and textile industry. A 670 mm working width and 500–800 m²/h cleaning capacity are paired with a 16 L extra-large dust box, allowing roughly 4,000 m² to be cleaned on a single fill. Suction and brush design are optimised for fabric strips, cut pieces, thread, hair, fibres, fluff and cotton wadding — the debris conventional equipment struggles with.

500–800m²/h capacity
4–6 hruntime per charge
670 mmworking width
16 Ldust box
Contact PanPanTech→Compare models

Product views

ACR-0670 photos and configuration views

Selected product images from the latest PanPanTech specification pack and matched supplier materials.

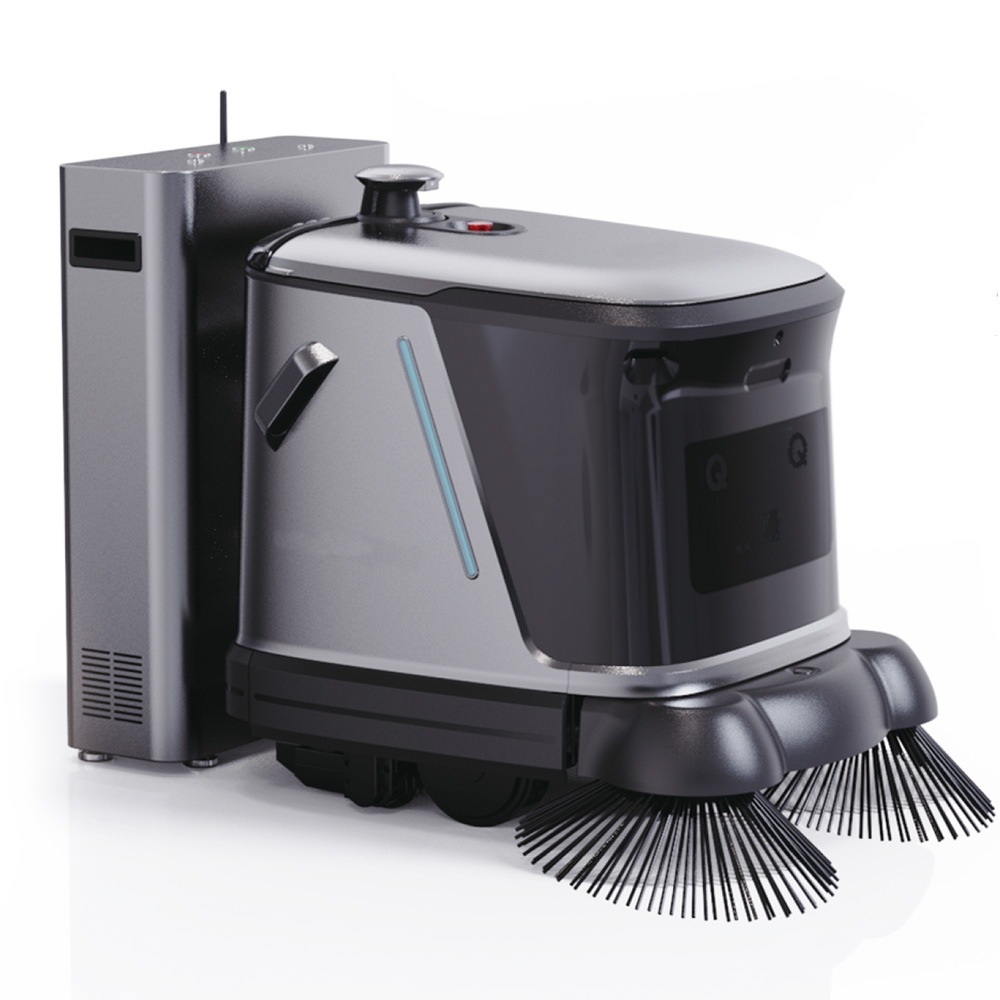

ACR-0670 product view 1

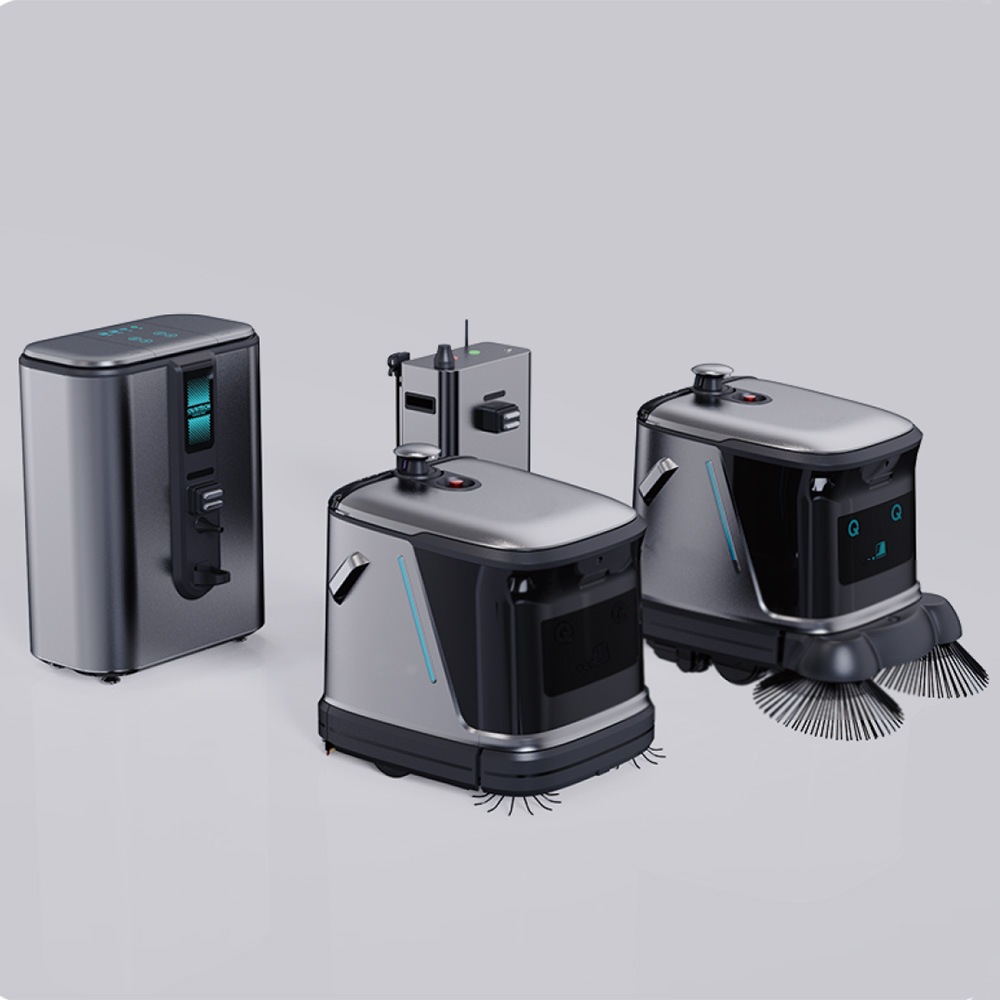

ACR-0670 product view 2

What it solves

Built around real site constraints

/01
Suction engineered for textile debris

Suction power and brush geometry are optimised for fabric strips, cut pieces, thread, hair, fibres, fluff and cotton wadding — collected in a single pass where standard equipment clogs or leaves residue.

/02
16 L dust box — about 4,000 m² per fill

The extra-large dust box sharply reduces emptying frequency; combined with 4–6 hours of runtime, production lines and large warehouses can be covered in one deployment.

/03
670 mm working width at 500–800 m²/h

A wide working path and steady travel speed significantly increase the area covered per hour.

/04
4–6 hours of runtime

A 60 Ah battery supports 4–6 hours of continuous work and recharges in 3 hours, covering a full production shift.

/05
Compact docking station

A 425 × 220 × 533 mm station with 100–240 V wide-voltage input suits power supplies worldwide, with a small footprint and flexible placement.

/06
Quiet operation below 70 dB

Operating noise stays under 70 dB, so the robot can run during production hours without interfering with communication on the floor.

/07
8° gradeability and stable travel

0.8 m/s travel speed with 8° gradeability handles the ramps and threshold transitions common in workshops.

Best-fit applications

Use these applications as the first filter, then send your route, floor material and operating schedule for model confirmation.

Garment factoriesTextile & fabric millsProduction & packing areasFinished-goods warehousesFabric storageLight industrial workshops

ACR-0670

Technical specifications

Dimensions (L×W×H)675 × 516 × 656 mm
Net weight56 kg
Operating noise< 70 dB
Cleaning modesSweeping / vacuuming
Cleaning capacity500 – 800 m²/h
Working width670 mm
Dust box capacity16 L
Area per fillApprox. 4,000 m²
Target debrisFabric strips & cut pieces, thread & hair, fibres, fluff and cotton wadding
Battery typeTernary lithium
Rated voltage46.8 V
Battery capacity60 Ah
Runtime4 – 6 hours
Charging time3 hours
Dimensions (L×W×H)425 × 220 × 533 mm
Weight14.5 kg
Input voltage100 – 240 V AC
Output voltage54.6 V
Travel speed0.8 m/s
Gradeability8°
NavigationLiDAR with multi-sensor fusion, autonomous navigation
SafetyOmnidirectional obstacle avoidance, emergency stop
Connectivity4G / Wi-Fi / offline
App languages19 languages supported
Access levelsStandard user / distributor / super user
CertificationCE, FCC
Battery transportSea, air, road and rail certified

Specifications are based on the latest PanPanTech product specification document. Final configuration should be confirmed through the website contact form.
