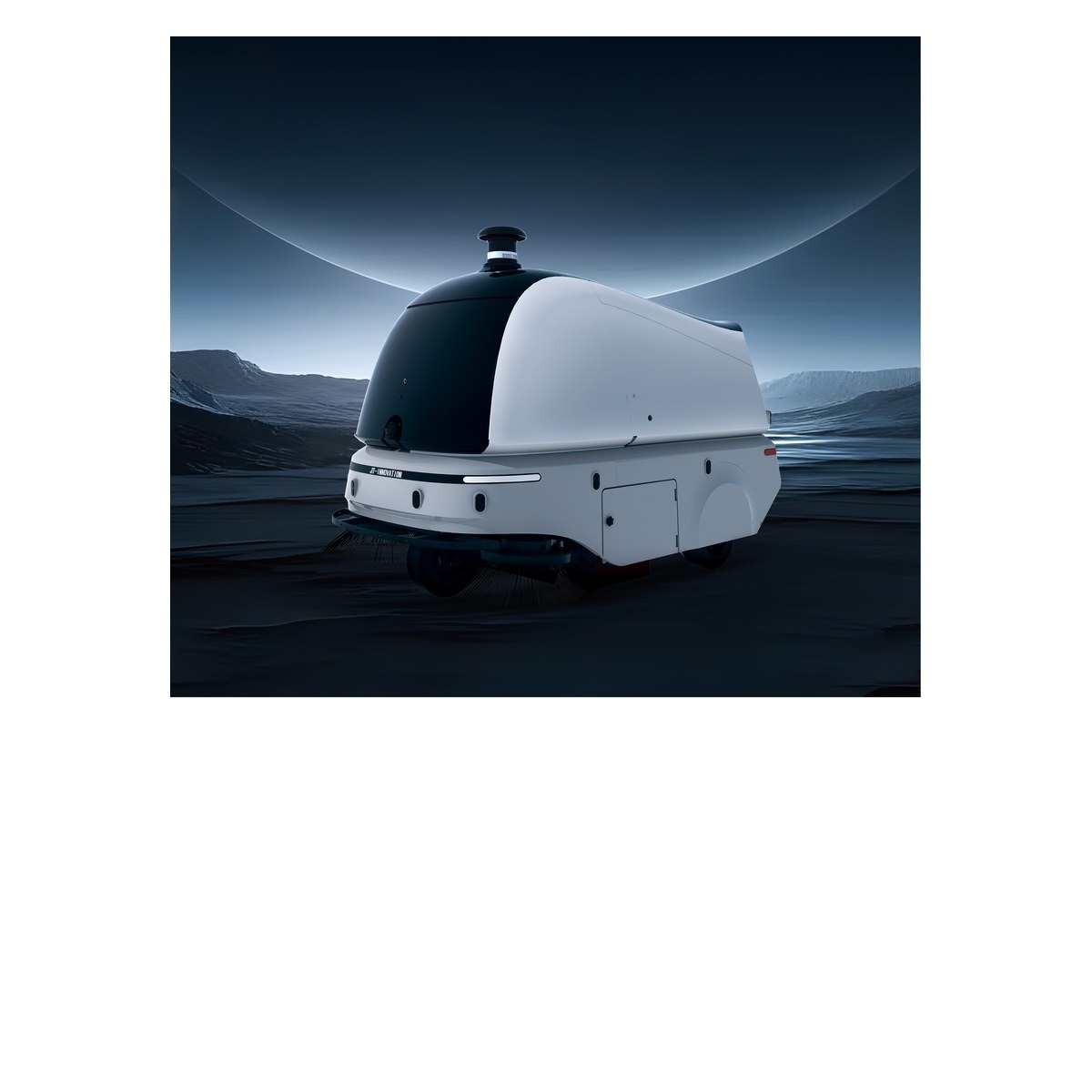

ACR-1200 Outdoor Autonomous Sweeping Robot

Outdoor Sweeping

ACR-1200 Outdoor Autonomous Sweeping Robot

The ACR-1200 is an intelligent outdoor sweeping robot designed for large open areas. A 1,200 mm sweeping path, up to 4,000 m²/h capacity and a 100 L waste bin are supported by a LiFePO₄ battery giving 6–8 hours of continuous operation, across an operating range of −20 to +50 °C. In service, one machine covers roughly the daily workload of four cleaning operatives — suitable for business parks, plazas, campuses and transport hubs.

4,000m²/h max. capacity
6–8 hruntime per charge
1,200 mmsweeping width
100 Lwaste bin
Contact PanPanTech→Compare models

Product views

ACR-1200 photos and configuration views

Selected product images from the latest PanPanTech specification pack and matched supplier materials.

ACR-1200 product view 1

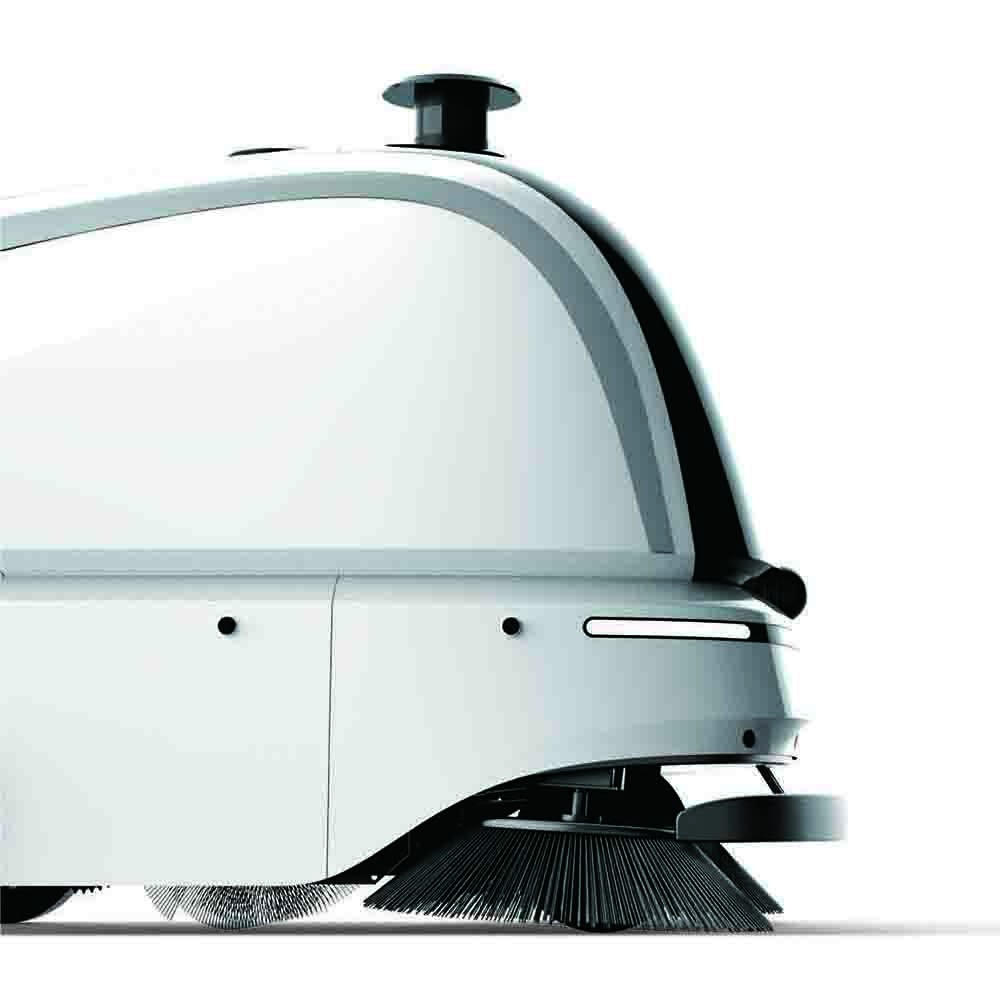

ACR-1200 product view 2

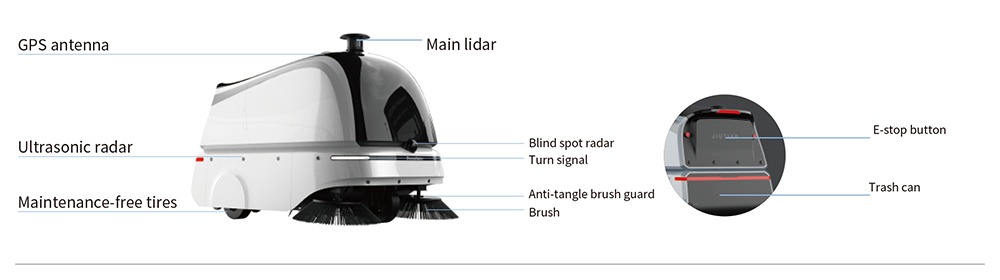

ACR-1200 product view 3
ACR-1200 product view 4

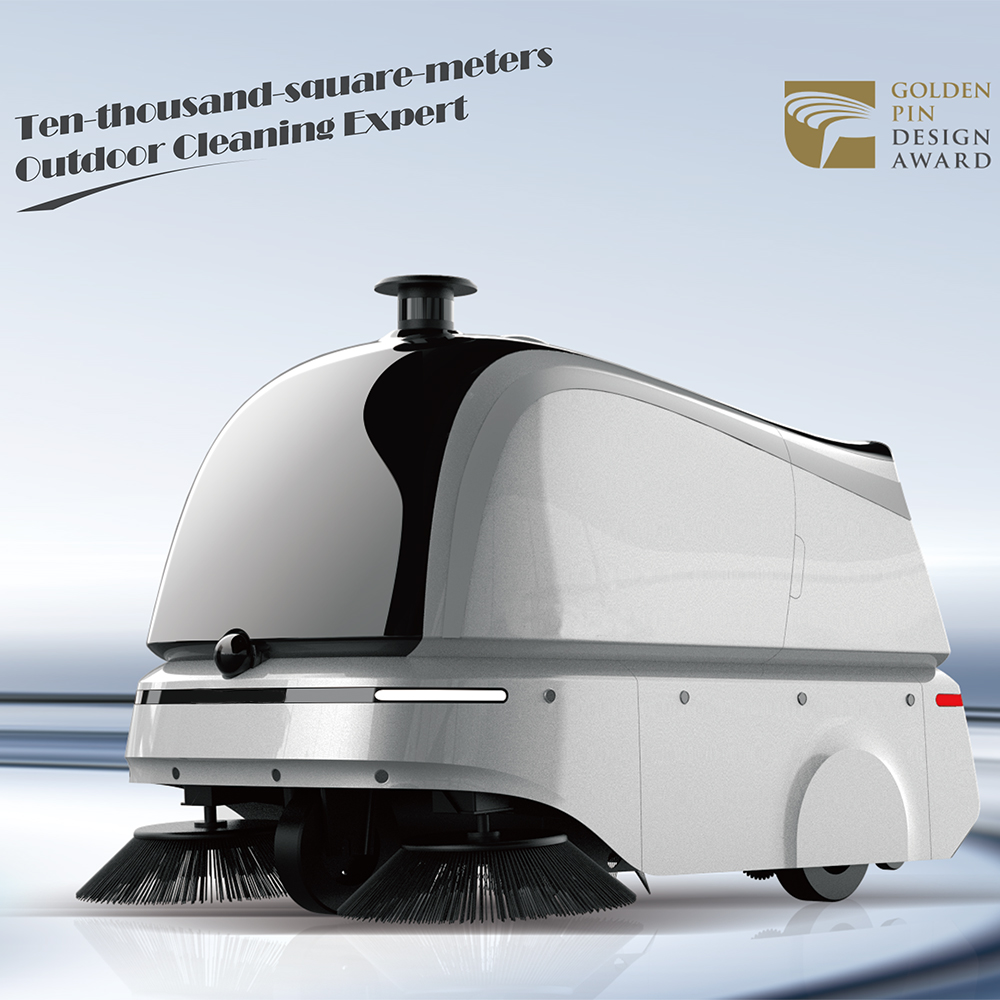

ACR-1200 product view 5

What it solves

Built around real site constraints

/01
One machine, the daily output of four cleaners

A 1,200 mm sweeping path combined with up to 4,000 m²/h means a single unit delivers roughly the daily sweeping output of four operatives, reducing manual sweeping and supervision workload.

/02
−20 to +50 °C — usable all year

The operating range covers −20 °C to +50 °C, so the machine keeps working through winter cold and summer heat without seasonal downtime.

/03
100 L high-capacity waste bin

The large bin reduces emptying trips and, together with 6–8 hours of runtime, allows an entire zone to be swept in a single deployment.

/04
Millimetre-level positioning, even without GNSS

Millimetre-level accuracy is maintained in GNSS-free and weak-GNSS areas; high-precision mapping and intelligent trajectory planning deliver full-area coverage.

/05
LiDAR + vision + ultrasonic fusion

Multi-sensor perception with no blind spots enables autonomous obstacle avoidance in complex environments, supported by blind-spot radar, turn indicators and an emergency stop.

/06
Auto-lifting side brush and anti-tangle design

Brush height is adjusted automatically during sweeping to maintain performance; an anti-tangle brush guard and maintenance-free tyres reduce daily upkeep.

/07
Cloud management and OTA updates

Scheduled sweeping, autonomous patrol monitoring, AI alerts, cleaning reports and automatic fault notification — with an open API for integration into existing park or facility management platforms.

Best-fit applications

Use these applications as the first filter, then send your route, floor material and operating schedule for model confirmation.

Industrial & technology parksPlazas & municipal open spacesSchools & campusesRail stations & airportsHospital campusesScenic areas & public parks

ACR-1200

Technical specifications

Dimensions (L×W×H)1,630 × 1,200 × 1,220 mm
Machine weight320 kg
Battery weight38 kg (included in machine weight)
Sweeping width1,200 mm
Cleaning capacityUp to 4,000 m²/h
Waste bin capacity100 L
CoverageSupports sites up to 100,000 m²
Cleaning modesFull-area auto coverage / designated zone / edge sweeping / scheduled cleaning
Battery typeLithium iron phosphate (LiFePO₄)
Rated voltage48 V
Runtime6 – 8 hours
Max. power2,000 W
Drive motor800 W
Brush disc motor90 W × 2
Main brush motor800 W
ChargingAutomatic return-to-charge at low battery
NavigationHigh-precision mapping + intelligent trajectory planning + dynamic memory sweeping
Sensor suiteLiDAR + vision system + ultrasonic sensors; blind-spot radar and GPS antenna
Positioning accuracyMillimetre-level in GNSS-free and weak-GNSS areas
Safety360° blind-spot-free obstacle avoidance, automatic parking recognition, emergency stop, turn indicators
Travel speed0 – 8 km/h
GradeabilityApprox. 15°
TyresMaintenance-free
Operating temperature−20 °C to +50 °C
Operating noise55 – 70 dB(A)
ApplicationOutdoor paved surfaces
Cloud platformRemote monitoring, cleaning data reports, automatic fault notification
Autonomous patrolAutomatic cruising with security alerts and on-board camera monitoring

Specifications are based on the latest PanPanTech product specification document. Final configuration should be confirmed through the website contact form.

Share your floor plan or material-flow route.

For more product details, accessory options and deployment planning, contact PanPanTech through the website form or listed contact information.
