Outdoor Sweeping

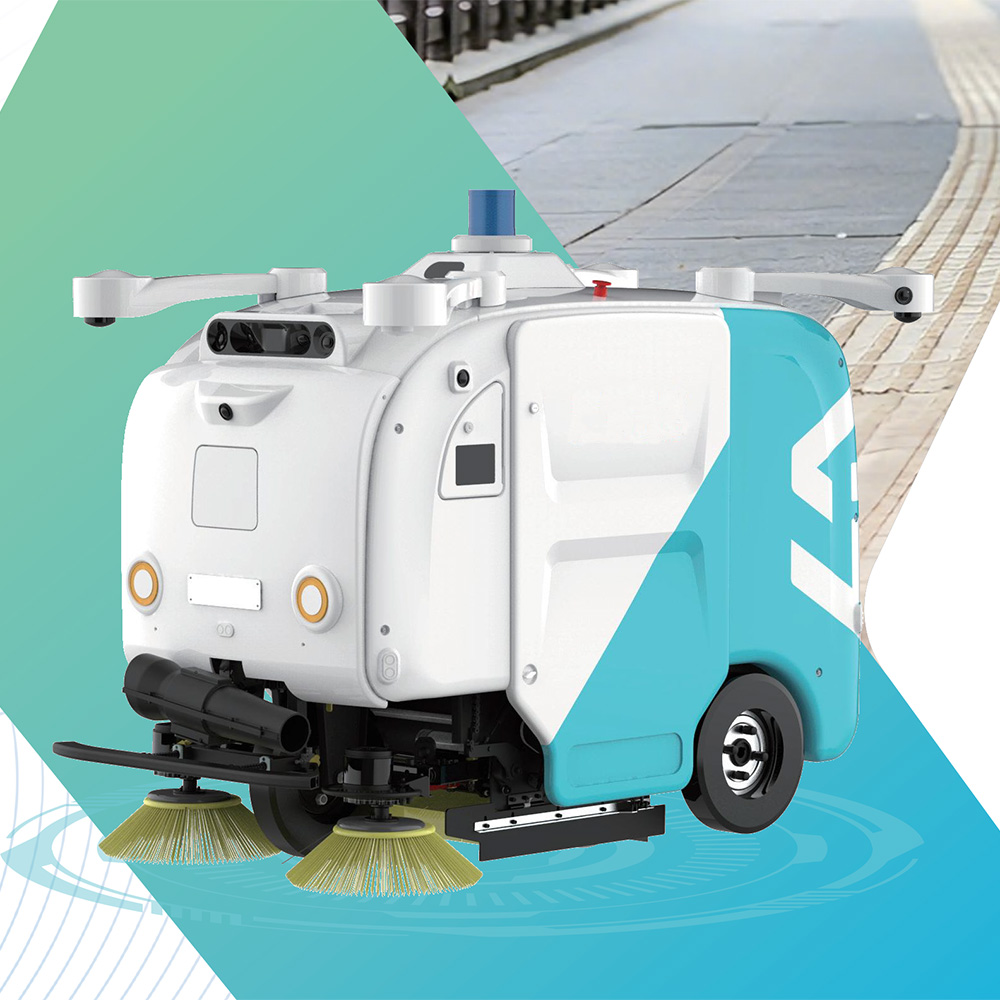

ACR-1300 L4 Compact Autonomous Sweeper

Name: ACR-1300 L4 Compact Autonomous Sweeper
Brand: PanPanTech
SKU: ACR-1300

The ACR-1300 is an L4 compact autonomous sweeper built for the narrow, complex spaces of the modern city. Combining autonomous driving with a sanitation-domain AI model, it plans its own route, sweeps autonomously and avoids obstacles precisely. Folded for transit it is only 1050 mm wide and needs a minimum passage of about 1.1 m, which makes it particularly suited to back lanes, footpaths, urban villages and residential estates. Its automatic waste bagging and discharge function requires no manual handling, greatly improving continuity of work. Available in Standard and Pro (ACR-1300P) configurations.

1,300 mmmax. working width

≥4,700m²/h sweeping efficiency

1.1 mmin. passage

6 hendurance

Contact PanPanTech→Compare models

Product views

ACR-1300 photos and configuration views

Selected product images from the latest PanPanTech specification pack and matched supplier materials.

What it solves

Built for lanes a full-size sweeper cannot enter

/01

Automatic waste bagging

Waste is sealed and bagged automatically, then discharged without human handling. This eliminates the risk of exposed waste and removes the dead travel time normally spent shuttling to a disposal point.

/02

1.1 m minimum passage

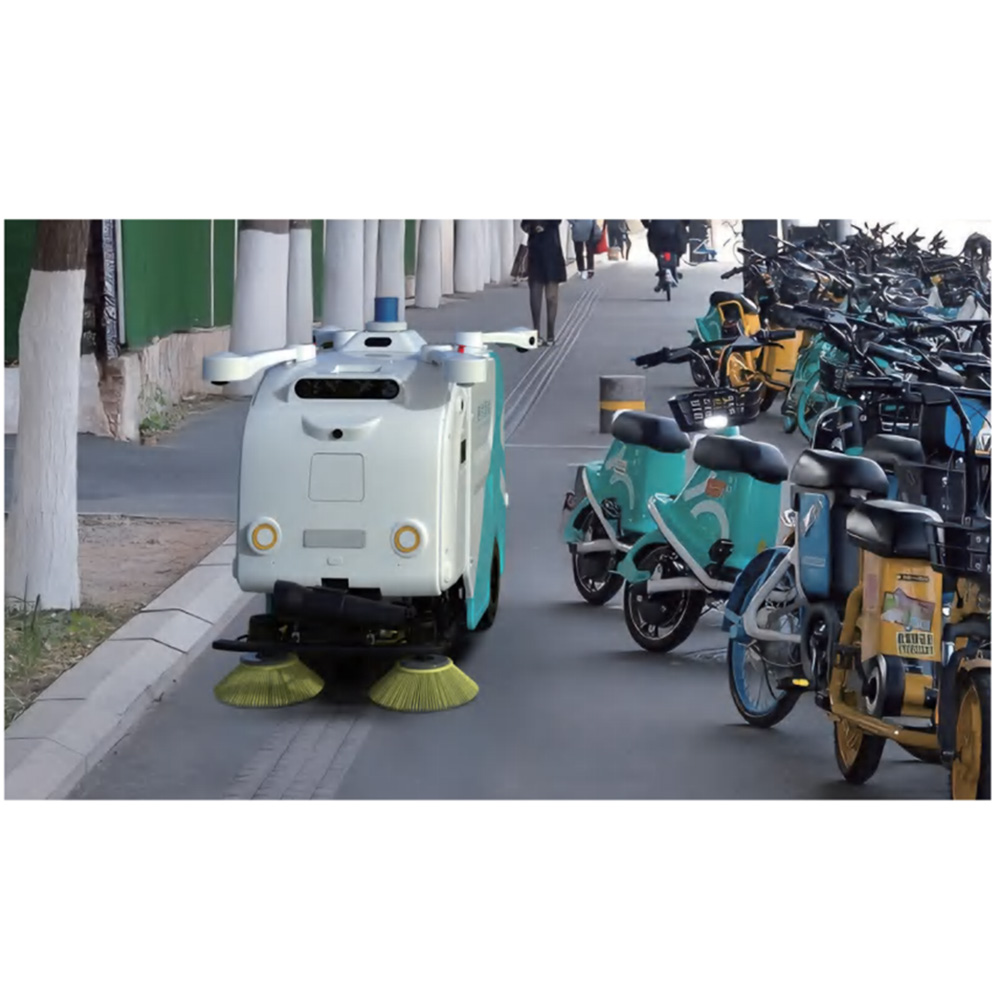

The machine extends to a 1300 mm working width and folds to 1050 mm for transit. A minimum passage of about 1.1 m and a very small turning radius allow it to work where full-size sweepers cannot go.

/03

L4 autonomous driving

Autonomous driving, a sanitation-domain AI model and embodied intelligence are combined for self-planned routing, autonomous sweeping and precise obstacle avoidance, including recognition of traffic lights and entangling objects and active yielding to pedestrians.

/04

360° safety architecture

Multi-sensor fusion and intelligent algorithms build a 360° recognition system that identifies road conditions and static or dynamic obstacles in real time, anticipating risk and selecting the safest strategy.

/05

Automatic charging and refilling

With the optional combined charging-and-water station, the machine returns to replenish on its own when battery or water runs low. A manual charging device is supplied as standard, so the machine can be deployed with or without a station.

/06

Multi-terminal cloud control

Fleet scheduling and real-time traceability of work data, operated through mini-program, mobile app, PC or the on-board terminal, with the option to integrate into the customer’s existing management system.

/07

Standard or Pro configuration

The Pro configuration (ACR-1300P) carries a 32-line LiDAR with a left-side blower; the Standard configuration carries a 16-line LiDAR with a right-side blower — selected according to site complexity and budget.

/08

IPX5 outdoor protection

Both the machine and the charging station are rated IPX5, operating from -10 to 50 °C at below 75 dB, which makes off-peak night work practical.

Best-fit applications

Use these applications as the first filter, then send your route, surface material and operating schedule for model confirmation.

Back lanesFootpathsUrban villagesResidential estatesPark greenwaysPedestrian streetsCampus roadsBusiness parksMunicipal plazas

ACR-1300

Technical specifications

Dimensions & Weight

Dimensions, extended (L×W×H)1,810 × 1,350 × 1,280 mm

Dimensions, folded (L×W×H)1,810 × 1,050 × 1,280 mm

Kerb weight470 kg

Minimum passage widthapprox. 1.1 m

Ingress protectionIPX5

Cleaning Performance

Maximum working width1,300 mm

Sweeping efficiency≥ 4,700 m²/h

Hopper capacity100 L

Water tank capacity50 L

Waste dischargeAutomatic bagging

BlowerLeft-side (Pro, ACR-1300P) / right-side (Standard)

Power & Endurance

Battery typeLiFePO₄

Battery capacity7.2 kWh

Endurance6 h

Charging time4 h

Drive power1,500 W

Charging & refillingAutomatic / manual

Travel & Mobility

Maximum travel speed6 km/h

Gradeability12° (20 %)

Step clearance7 cm

Sensing & Environment

Autonomy levelL4

LiDAR32-line (Pro, ACR-1300P) / 16-line (Standard)

Safety recognitionTraffic lights, entangling objects, static and dynamic obstacles, with active avoidance

Operating temperature−10 to 50 °C

Operating noise< 75 dB

Charging & Water Station (optional)

Dimensions (L×W×H)610 × 1,130 × 1,370 mm

Weight55 kg

Power supplyAC 220 V / 10 A

Charging power2,044 W

Charging & refilling modesAutomatic / manual

Operating temperature−10 to 50 °C

Storage temperature−25 to 50 °C

Ingress protectionIPX5

Specifications are based on the manufacturer's technical confirmation sheet and are theoretical values obtained under defined test conditions; actual results depend on surface material, debris density, gradient and operating mode. Products are continuously improved; specifications are subject to change without notice. Final configuration should be confirmed through the website contact form.
