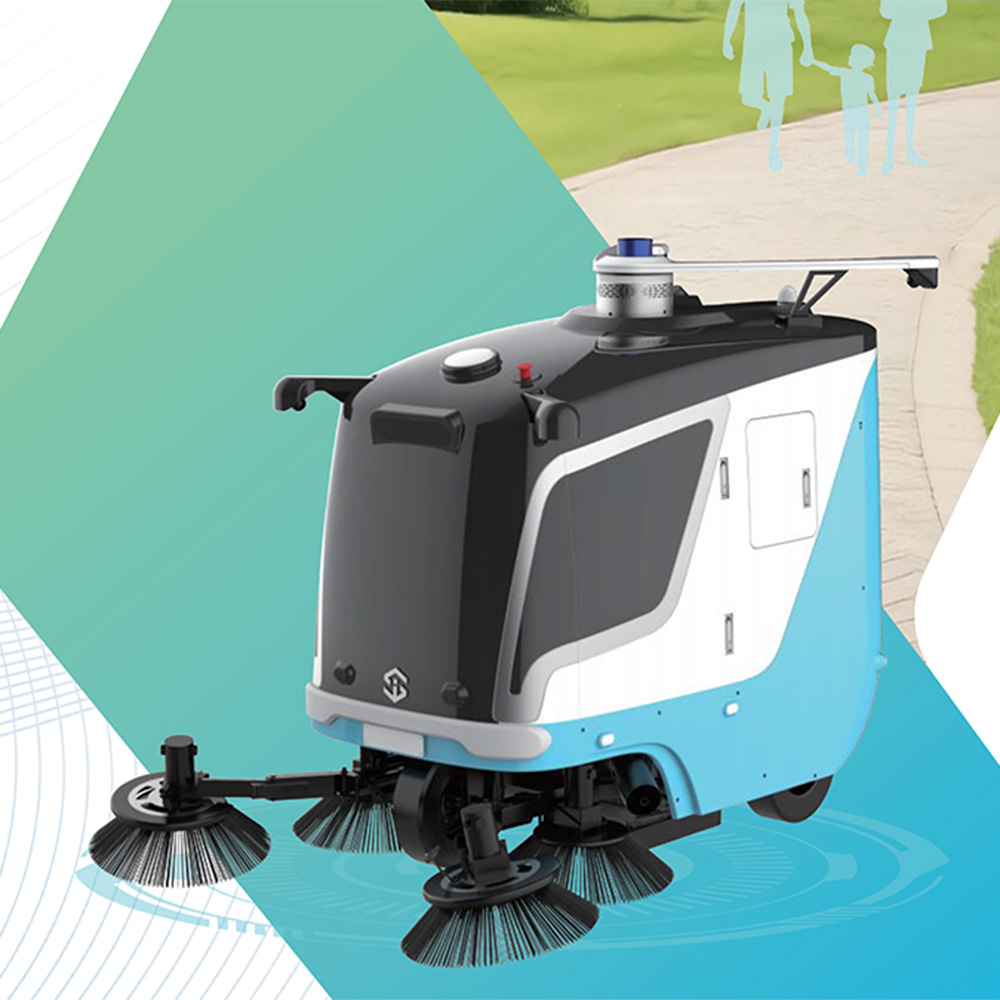

ACR-1900 Wide-Sweep Autonomous Sweeper

Outdoor Sweeping

ACR-1900 Wide-Sweep Autonomous Sweeper

The ACR-1900 is an autonomous sweeper for large-area outdoor sanitation work. With a maximum working width of 1900 mm and a sweeping efficiency of 6,900 m²/h or more, it works continuously for 8 hours on a single charge. Sweeping, water spraying and dust suppression are integrated in one machine, with a 150 L hopper and a 100 L water tank, automatic full-load detection and self-discharge. When battery or water runs low it returns to the combined charging-and-water station on its own, making it well suited to municipal roads, large business parks, plazas and transport hubs measured in tens of thousands of square metres.

1,900 mmmax. working width
≥6,900m²/h sweeping efficiency
8 hendurance
150 Lhopper capacity

What it solves

Wide-sweep coverage for sites measured in hectares

/01
1900 mm wide-sweep working width

A maximum working width of 1900 mm and sweeping efficiency above 6,900 m²/h allow a single machine to cover sites of tens of thousands of square metres, substantially reducing cost per square metre.

/02
8-hour endurance with self-replenishment

A 9.6 kWh LiFePO₄ battery supports 8 hours of continuous work. When battery or water runs low the machine returns to the combined charging-and-water station on its own, closing the unattended operating loop.

/03
Sweeping, spraying and dust control

Sweeping, water spraying and dust suppression are integrated. A 100 L water tank feeding the spray system significantly reduces airborne dust and secondary pollution — important in public areas where air quality matters.

/04
Self-discharge with full-load detection

A 150 L hopper with automatic full-load detection discharges without human intervention, cutting the number of disposal trips.

/05
Adaptive centimetre-level edge sweeping

An adaptive side-brush mechanism maintains centimetre-level edge cleaning on straight sections, curves and S-bends, clearing dust and leaves along kerbs and planter edges.

/06
Blower mode for difficult areas

A dedicated blower clears the edges of planting beds, step joints and other awkward areas, significantly extending effective coverage.

/07
Weather-adaptive operation

Rainfall and light-level detection allow the machine to move to shelter when it rains and switch on its lights automatically in low light, supporting all-weather outdoor work.

/08
Remote fleet scheduling

Fleet management and intelligent data analysis monitor the health of the battery, drive and other core systems in real time, providing early warning and fault alerts.

Best-fit applications

Use these applications as the first filter, then send your route, surface material and operating schedule for model confirmation.

Municipal roadsLarge business parksCity plazasTransport hubsAirport landsideLogistics parksCampus main roadsScenic area main routesLarge car parks

ACR-1900

Technical specifications

Dimensions & Weight
Dimensions, extended (L×W×H)2,120 × 1,900 × 1,670 mm
Dimensions, folded (L×W×H)2,430 × 1,200 × 1,670 mm
Kerb weight700 kg
Ingress protectionIPX5
Cleaning Performance
Maximum working width1,900 mm
Sweeping efficiency≥ 6,900 m²/h
Hopper capacity150 L
Water tank capacity100 L
Waste dischargeFull-load detection with automatic discharge
Dust controlIntegrated sweeping, spraying and mist dust suppression
Edge sweepingAdaptive side brushes, centimetre-level on straights, curves and S-bends
BlowerDedicated blower with blow-sweep mode for difficult areas
Power & Endurance
Battery typeLiFePO₄
Battery capacity9.6 kWh
Endurance8 h
Charging time4 h
Drive power2,500 W
Travel & Mobility
Maximum travel speed6 km/h
Gradeability15°
Step clearance8 cm
Sensing & Environment
PerceptionMulti-sensor fusion with layered safety protection
Weather sensingRainfall detection with automatic move to shelter; light detection with automatic lights
Operating temperature−10 to 50 °C
Operating noise< 75 dB

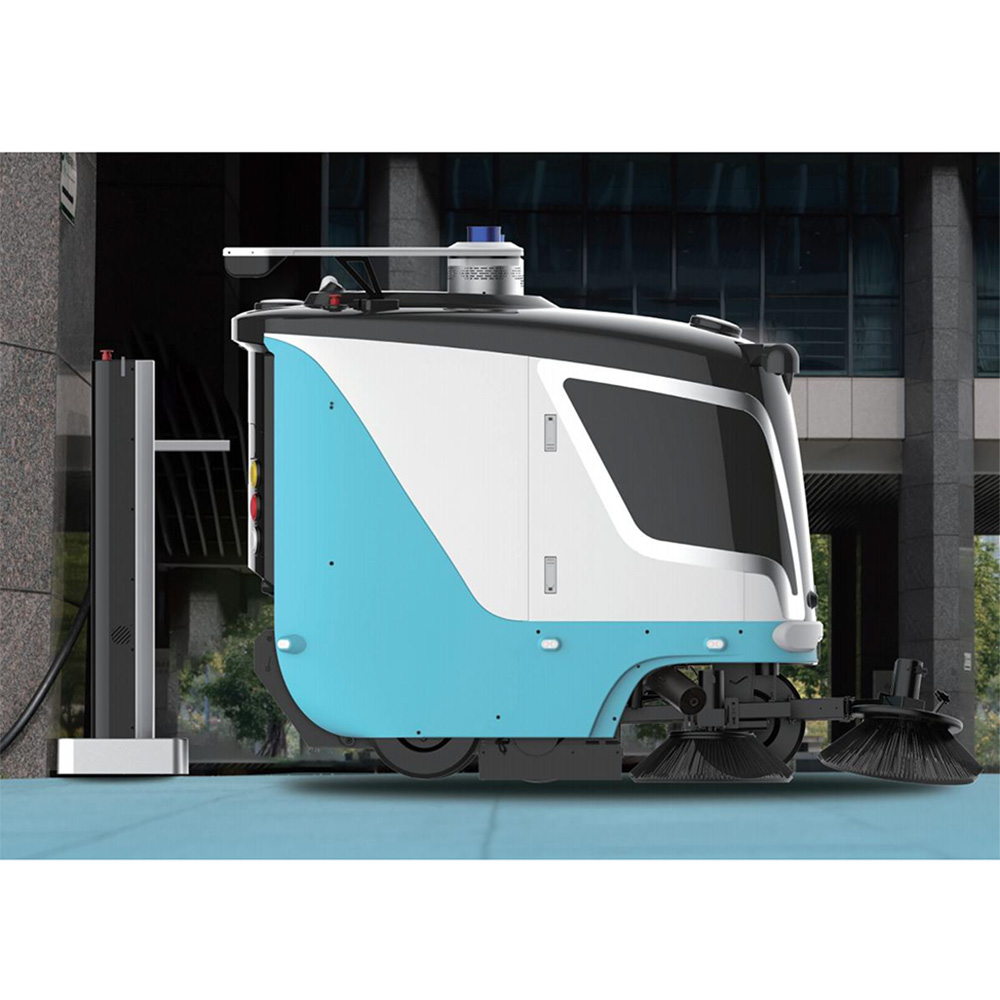

Charging & Water Station
Dimensions (L×W×H)750 × 410 × 1,300 mm
Weight45 kg
Supply voltageAC 220 V
Rated power3,340 W
Rated outputDC 48 V / 50 A
ChargingAutomatic / manual
Water refillingAutomatic / manual
Ingress protectionIPX5
Operating / storage temperature−10 to 50 °C / −25 to 50 °C

Specifications are based on the manufacturer's technical confirmation sheet and are theoretical values obtained under defined test conditions; actual results depend on surface material, debris density, gradient and operating mode. Products are continuously improved; specifications are subject to change without notice. Final configuration should be confirmed through the website contact form.
