AMR-0300 Industrial Transport Robot (300 kg class)

Name: AMR-0300 Industrial Transport Robot (300 kg class)
Brand: PanPanTech
SKU: AMR-0300

The AMR-0300 is an autonomous mobile robot platform for industrial logistics and heavy-duty commercial delivery, available in Standard, Lifting, Conveyor, Tray and Towing configurations. Built on a high-load chassis with an open architecture, it carries up to 300 kg (400 kg in the Towing version) and runs 12 hours unloaded. A 10.1-inch on-board touchscreen and IoT capabilities including elevator control, e-door access and call buttons allow it to integrate directly into existing production and warehouse systems.

300 kgmax. payload

12 hruntime, unloaded

±1 cmprecise docking

5configurations

Contact PanPanTech→Compare models

Product views

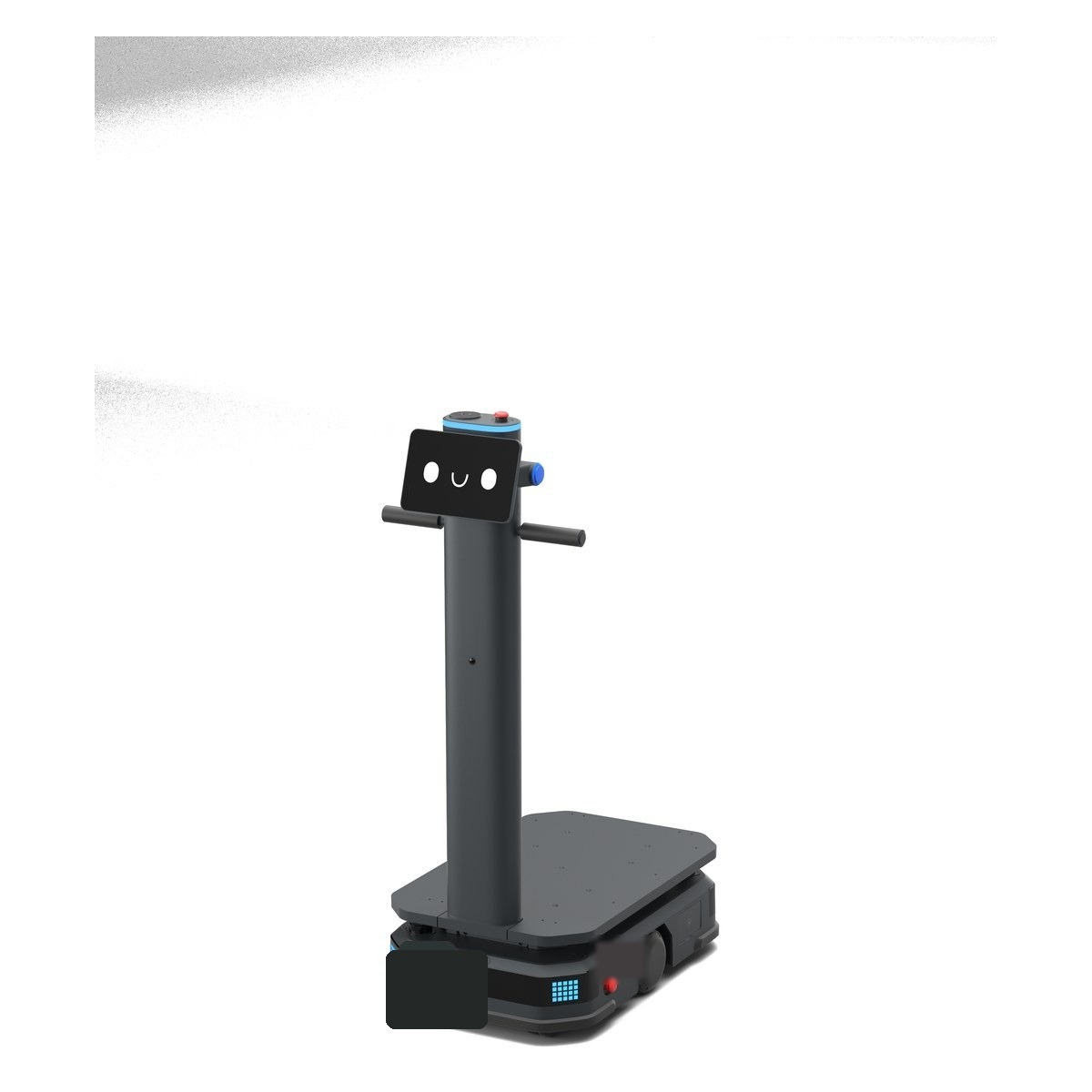

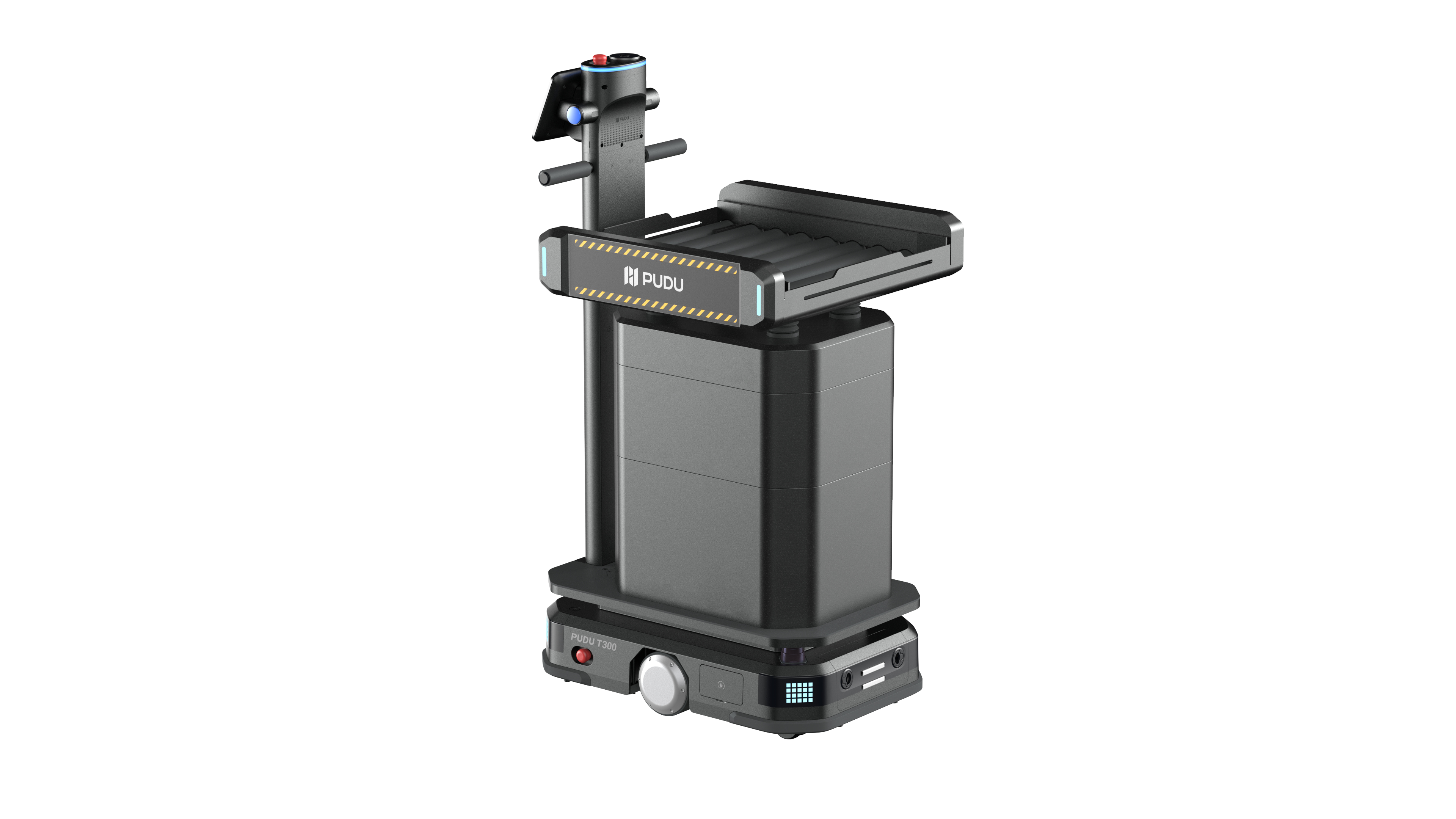

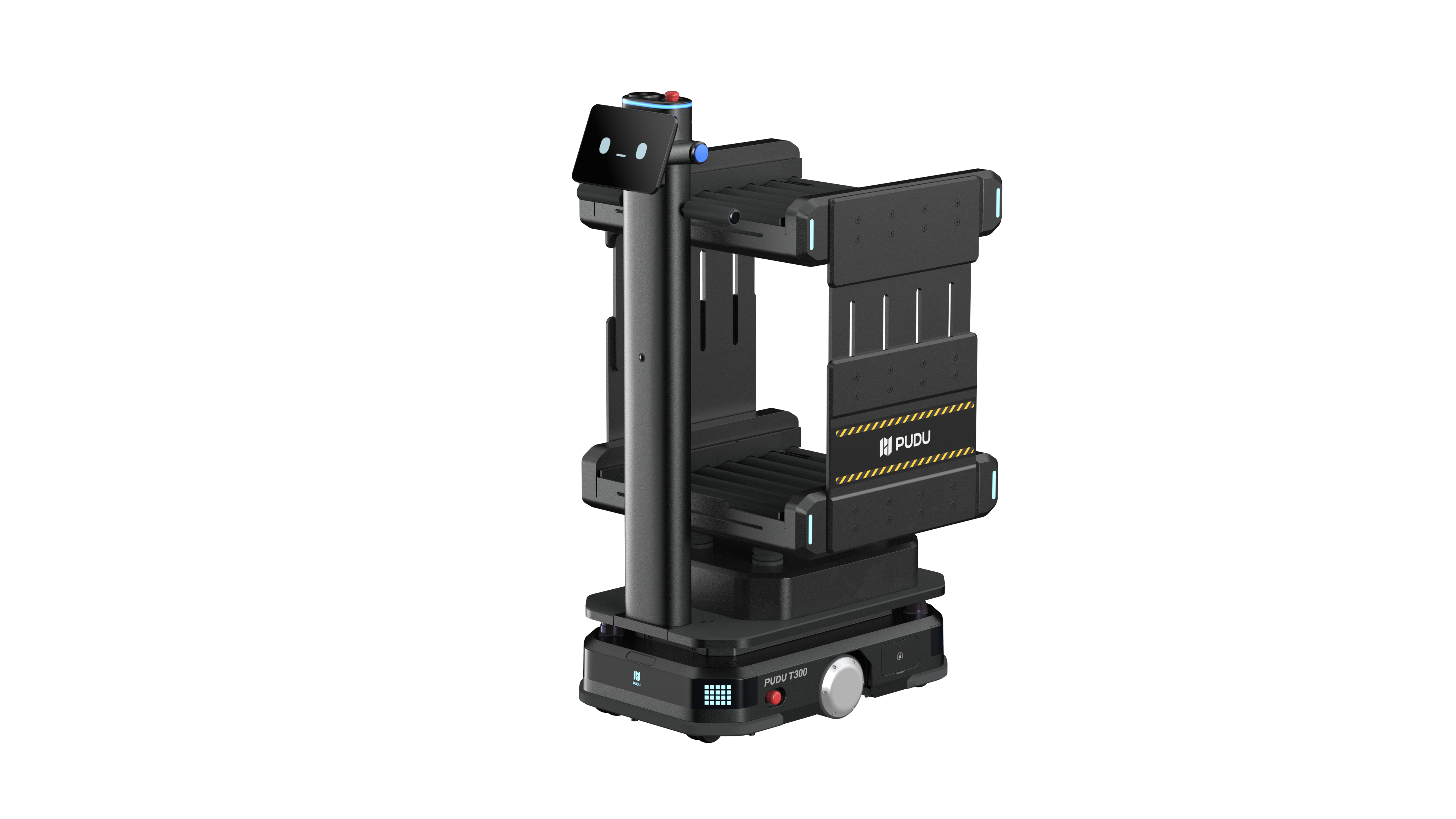

AMR-0300 photos and configuration views

Selected product images from the latest PanPanTech specification pack and matched supplier materials.

What it solves

Built around real site constraints

/01

Five configurations on one platform

Standard, Lifting, Conveyor, Tray and Towing versions share the same chassis platform — specify by process need while keeping spare parts and training common across the fleet.

/02

300 kg payload with open architecture

A high-load chassis with open software and hardware interfaces simplifies system integration and hardware expansion; the Towing version pulls multiple carts up to 400 kg.

/03

12-hour runtime with 30 Ah swappable battery

Twelve hours unloaded and a 2-hour charge to 90%; charging station, wired charging and manual battery swap are all supported for multi-shift operation.

/04

±1 cm precise docking

Standard positioning accuracy is ±5 cm, tightening to ±1 cm in precise-connection mode — sufficient for automated pick-up and delivery at production lines.

/05

VSLAM + LiDAR SLAM fusion navigation

Vision and LiDAR SLAM are fused for positioning without QR codes or magnetic tape, with push-to-deploy commissioning and minimal site modification.

/06

Full IoT integration

Elevator control, e-door access, call buttons, dashboard, conveyor docking and Bluetooth speaker enable autonomous operation across floors and zones.

/07

Designed to ISO 3691-4

Engineered to the industrial mobile robot safety standard for use in factories and warehouses where people are present.

Best-fit applications

Use these applications as the first filter, then send your route, floor material and operating schedule for model confirmation.

Production line feedingWarehousing & distributionElectronics & precision manufacturingAutomotive component plantsHospital & laboratory logisticsHeavy-duty commercial delivery

AMR-0300

Technical specifications

TypeIndustrial delivery / transport autonomous mobile robot (AMR)

ConfigurationsStandard / Lifting / Conveyor / Tray / Towing

Safety standardISO 3691-4

Dimensions (L×W×H)835 × 500 × 1,350 mm

Max. payload300 kg (Towing version 400 kg)

Weight by versionStandard 65 kg; Tray 103 kg; Lifting 81 kg; Towing 90 kg

Path clearance600 mm

Cruise speed0.2 – 1.2 m/s

Max. surmountable height20 mm (Conveyor version 5 mm)

Max. surmountable gap35 mm

NavigationVSLAM + LiDAR SLAM fusion

Positioning accuracyStandard ±5 cm; precise connection ±1 cm

SchedulingDistributed self-organising network scheduling

DeploymentPush-to-deploy

Battery30 Ah swappable

Run-time (no load)12 hours

Charging time2 hours (0 to 90%)

Charging methodCharging station / wired charging / manual battery swap

Display10.1-inch on-board touchscreen

IoT capabilitiesElevator, e-door access, call button, dashboard, conveyor, Bluetooth speaker

Core functionsDelivery, patrol, lifting, following, power-assistance, conveyor, towing

Single-layer payload80 kg per layer

Double-layer payload120 kg single / 180 kg double

Conveyor width650 mm

Conveyor height120 – 540 mm adjustable

Docking accuracy±10 mm, ±1°

Ground clearance≥ 305 mm

IntegrationIntegrated PLC communication for automated pickup/delivery notifications

Specifications are based on the latest PanPanTech product specification document. Final configuration should be confirmed through the website contact form.
