AMR-0300R Underride Lifting AMR (Rock Series)

Warehouse AMR

AMR-0300R Underride Lifting AMR (Rock Series)

The AMR-0300R is an underride lifting autonomous mobile robot for material transfer in factories and industrial campuses. At only 310 mm in height, it drives beneath a rack or trolley and lifts it, carrying a rated payload of 300 kg with a 50 mm lifting stroke. The machine is built for a wide temperature range of −10 °C to +65 °C, with UV and corrosion-resistant treatment, IP43 chassis protection and an IP66 battery pack, allowing operation in suitable outdoor campus environments as well as indoors. Twin LiDAR and a 215° wide-angle RGB camera support free, tracked, hybrid and follow navigation, with ±5 mm / ±1° positioning accuracy.

300 kgRated payload
9 hRuntime
5°Gradeability
±5 mmPositioning
Contact PanPanTech→Compare models

Product views

AMR-0300R photos and configuration views

Selected product images from the latest PanPanTech specification pack.

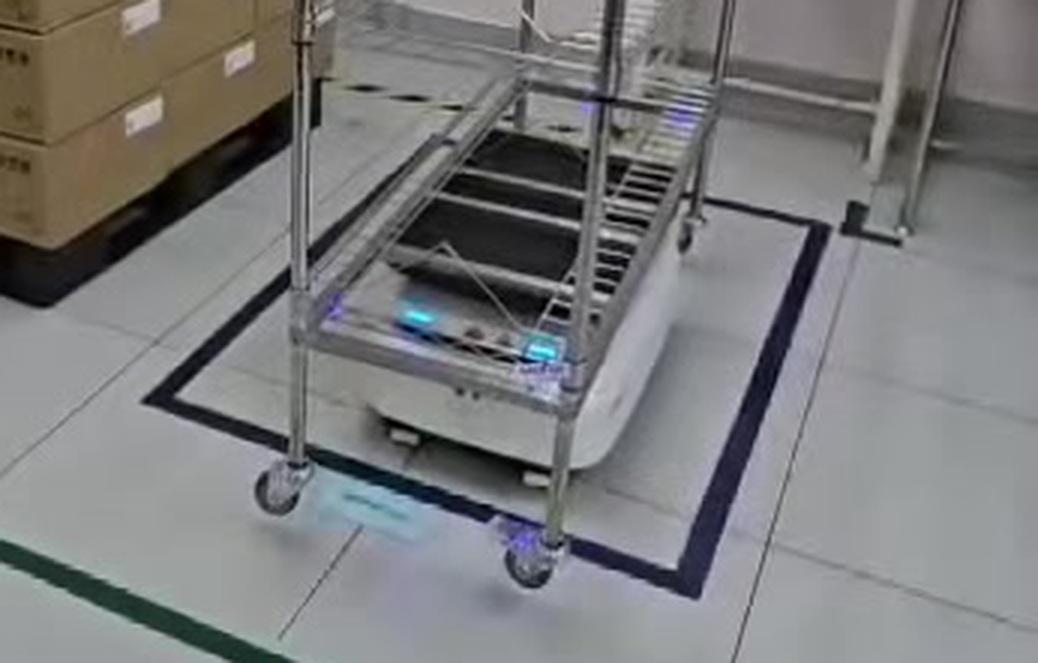

AMR-0300R — Underride lifting · rack transfer

What it solves

Built for yards, ramps and the weather between buildings

/01
Wide temperature −10 to +65 °C, UV and corrosion resistant Rated for −10 °C to +65 °C with UV and corrosion-resistant treatment, so cold winters and hot summers are both within range — and suitable outdoor campus areas are usable, not only indoor floors.

IP43 chassis / IP66 battery pack IP43 protection on the chassis and IP66 on the battery pack, suited to dusty and damp duty and reducing downtime caused by environmental ingress.

/02
20 mm obstacle clearance · 35 mm gap crossing Crosses 20 mm steps and 35 mm floor gaps, handling the tile joints, expansion joints and threshold transitions found in most factories.

5° gradeability Rated at 5° over a 10 m run. Underride AMRs carry the load above the chassis, so gradeability in this class is inherently limited.

/03
Four navigation modes Free, tracked, hybrid and follow navigation are all supported, so one machine adapts to different line layouts and working practices.

9-hour runtime with auto-recharge Nine hours on a charge and around 5.5 hours to full; with a charging dock deployed the robot supports 7×24 continuous service.

/04
Twin LiDAR plus 215° wide-angle vision A 360° primary LiDAR (40 m) and a 140° secondary LiDAR (12 m) fuse with a 215° RGB camera and a 6-DOF IMU for full-perimeter perception.

4G / WiFi dual channel with cloud platform Built-in 4G and dual-band WiFi, with a cloud platform for remote deployment, live monitoring, cross-area dispatch and data visualisation — no on-site server required.

Best-fit applications

Use these applications as the first filter, then send your site conditions and operating schedule for model confirmation.

Production line material transferWarehouse rack handlingElectronics & precision manufacturingInter-building campus deliveryHospital & laboratory logisticsIndoor–outdoor transition areas

AMR-0300R

Technical specifications

Dimensions & Load HandlingDimensions & Load Handling
Overall dimensions (L×W×H)740 × 500 × 310 mm
Body materialABS and sheet metal
Lifting height50 mm
Standard rack size660 × 700 × 350 mm (custom racks supported)
Motion & AccessMotion & Access
NavigationFree / tracked / hybrid / follow
Max obstacle clearance20 mm
Floor gap crossing35 mm
Lift / gate clearance≥ 700 mm
Outdoor useSuitable campus areas supported
PerceptionPerception
LiDAR 1360° scan, 0.02 – 40 m
RGB camera215° FOV, 1280 × 720
Wheel encoderOdometer
Power & EndurancePower & Endurance
Battery25.2 V / 30,000 mAh
Full charge timeapprox. 5.5 hours
Charging dock375 × 160 × 355 mm, 4.35 kg
EnvironmentalEnvironmental
Chassis ingress protectionIP43
Operating temperature−10 °C to +65 °C; UV and corrosion resistant
Charging temperature5 °C to 40 °C (indoor)
Control & ConnectivityControl & Connectivity
Operating systemLinux (Ubuntu)
Chassis GPUVideoCore VI
4GFDD B1/B3/B5/B8; TDD B38/39/30/41
WiFi2.4 GHz & 5 GHz, 802.11 a/b/g/n/ac
Data allowance2 GB per robot per month
HMI & SafetyHMI & Safety
DisplayNo screen; controlled via cloud / PC / phone / tablet
Emergency stop2 buttons
Software & PlatformSoftware & Platform
Mini-programme / appRemote management: task dispatch, map editing, task statistics — no installation required
Remote monitoringLive status, fault alerting and remote handling
Remote dispatchCross-area scheduling

Specifications are based on the manufacturer's technical confirmation sheet. Performance figures are obtained under defined test conditions; actual results depend on site conditions and operating mode. Products are continuously improved; specifications are subject to change without notice. Final configuration should be confirmed through the website contact form.
