AMR-0600 Heavy-Payload Industrial Transport Robot (600 kg class)

Warehouse AMR

AMR-0600 Heavy-Payload Industrial Transport Robot (600 kg class)

The AMR-0600 is a heavy-payload industrial autonomous mobile robot rated at 600 kg, substantially reducing trip frequency and improving efficiency per run. Two configurations are freely selectable: the mast version carries a built-in 10.1-inch screen and operates without a central control system, while the underride version stands just 255 mm tall, travelling beneath rack units and lifting loads from the centre with minimal path clearance. It supports the VDA5050 protocol and on-premises deployment, with rack group recognition and idle-elevator priority scheduling.

600 kgmax. payload
12 hruntime, unloaded
VDA5050protocol support
±1 cmprecise docking
Contact PanPanTech→Compare models

Product views

AMR-0600 photos and configuration views

Selected product images from the latest PanPanTech specification pack and matched supplier materials.

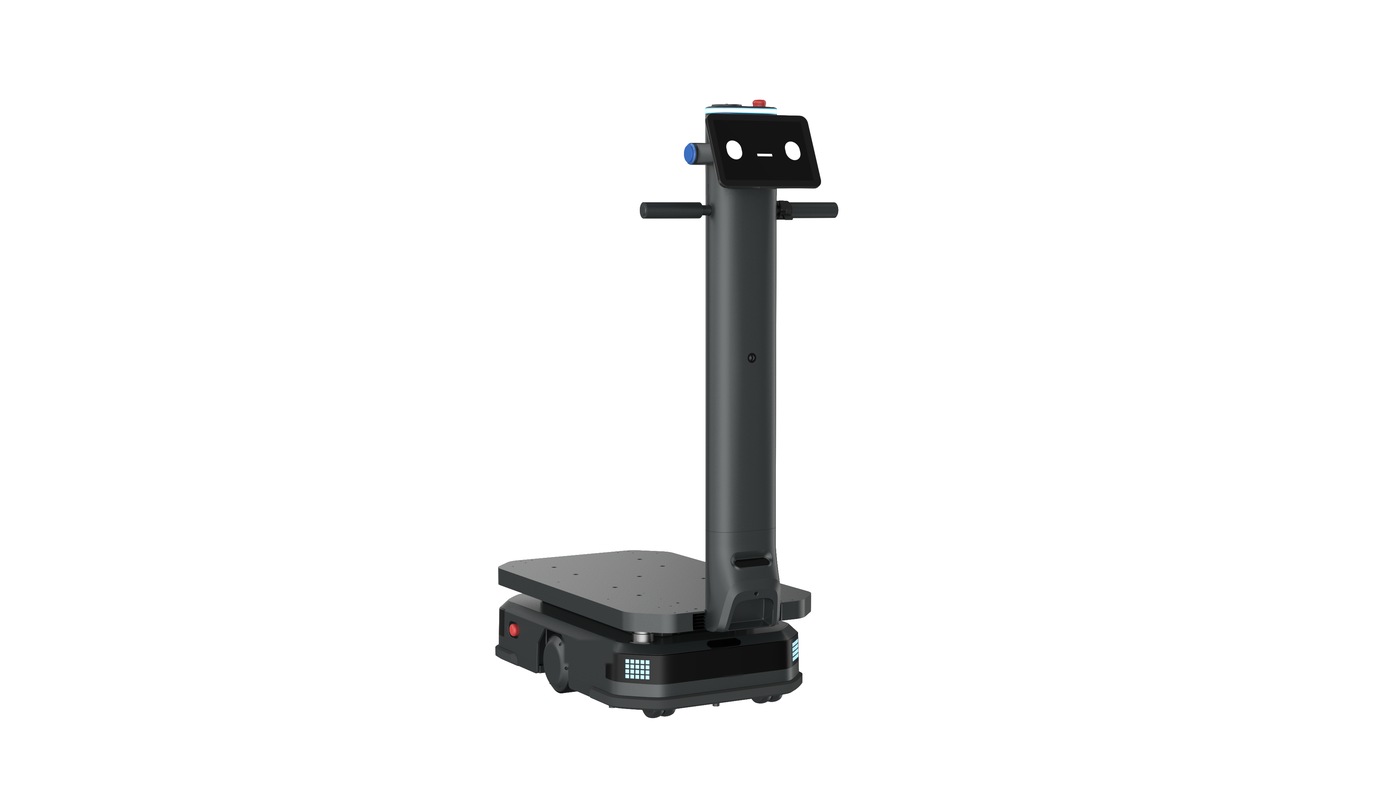

AMR-0600 product view 1

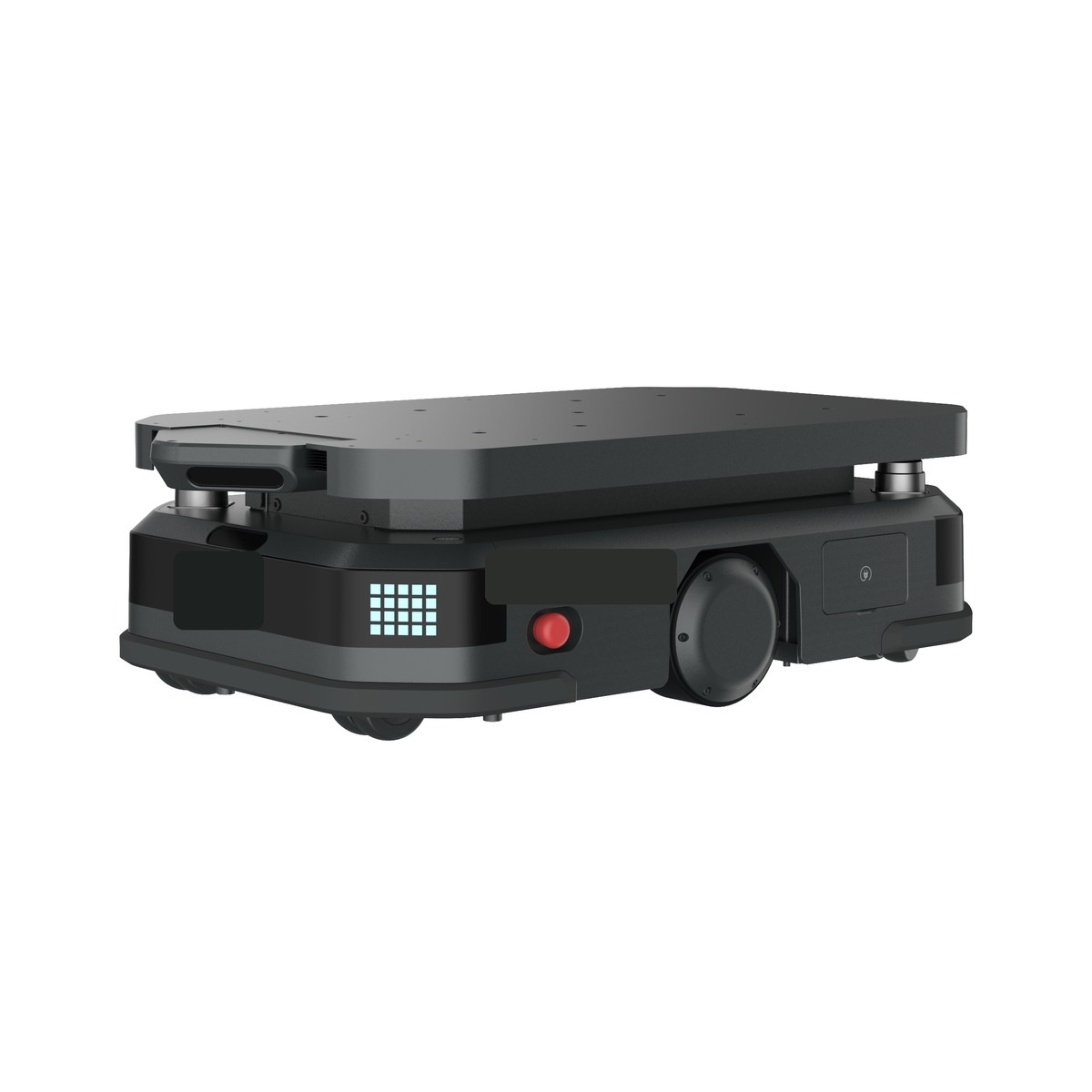

AMR-0600 product view 2
AMR-0600 product view 3
AMR-0600 product view 4

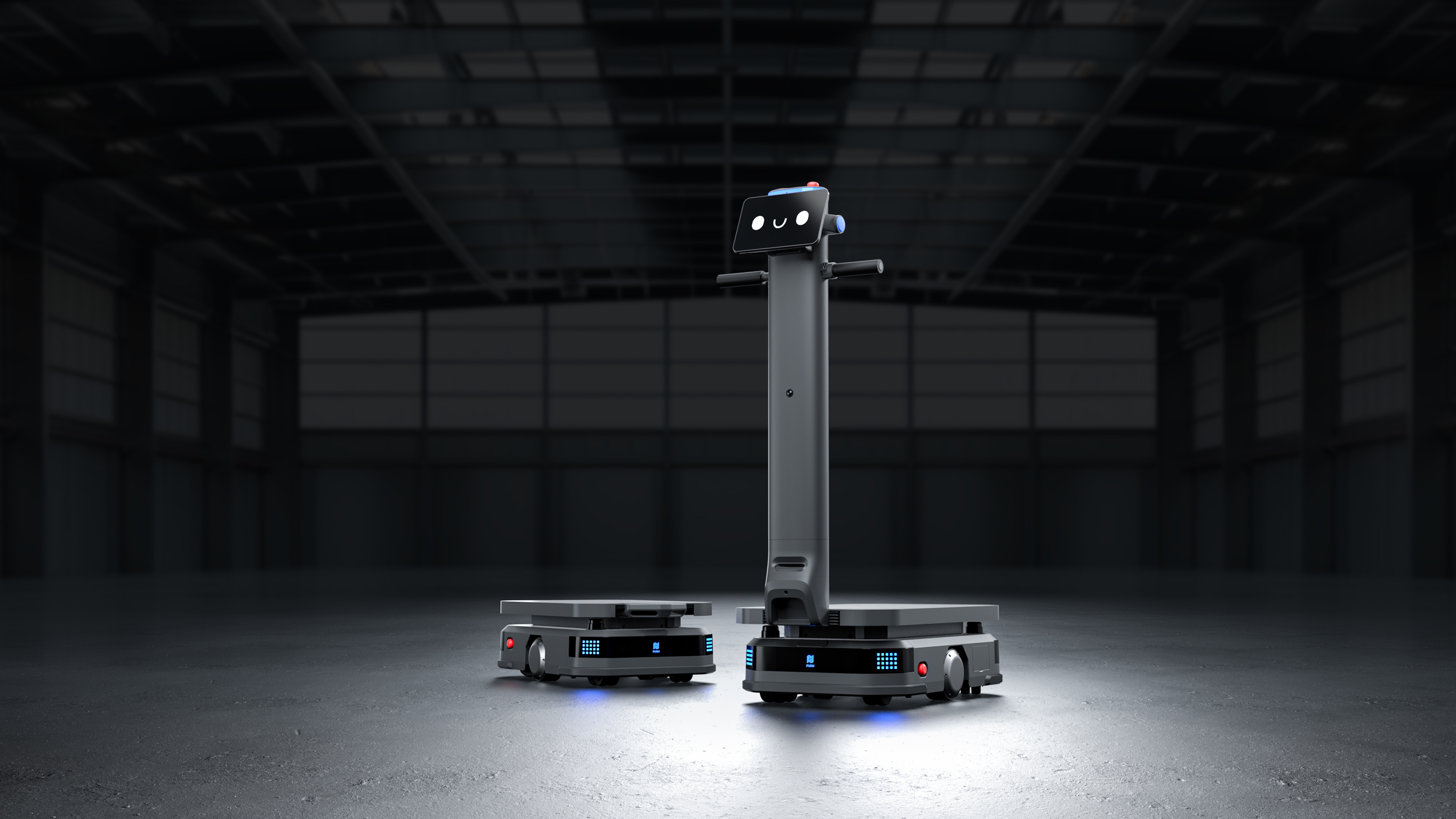

AMR-0600 product view 5

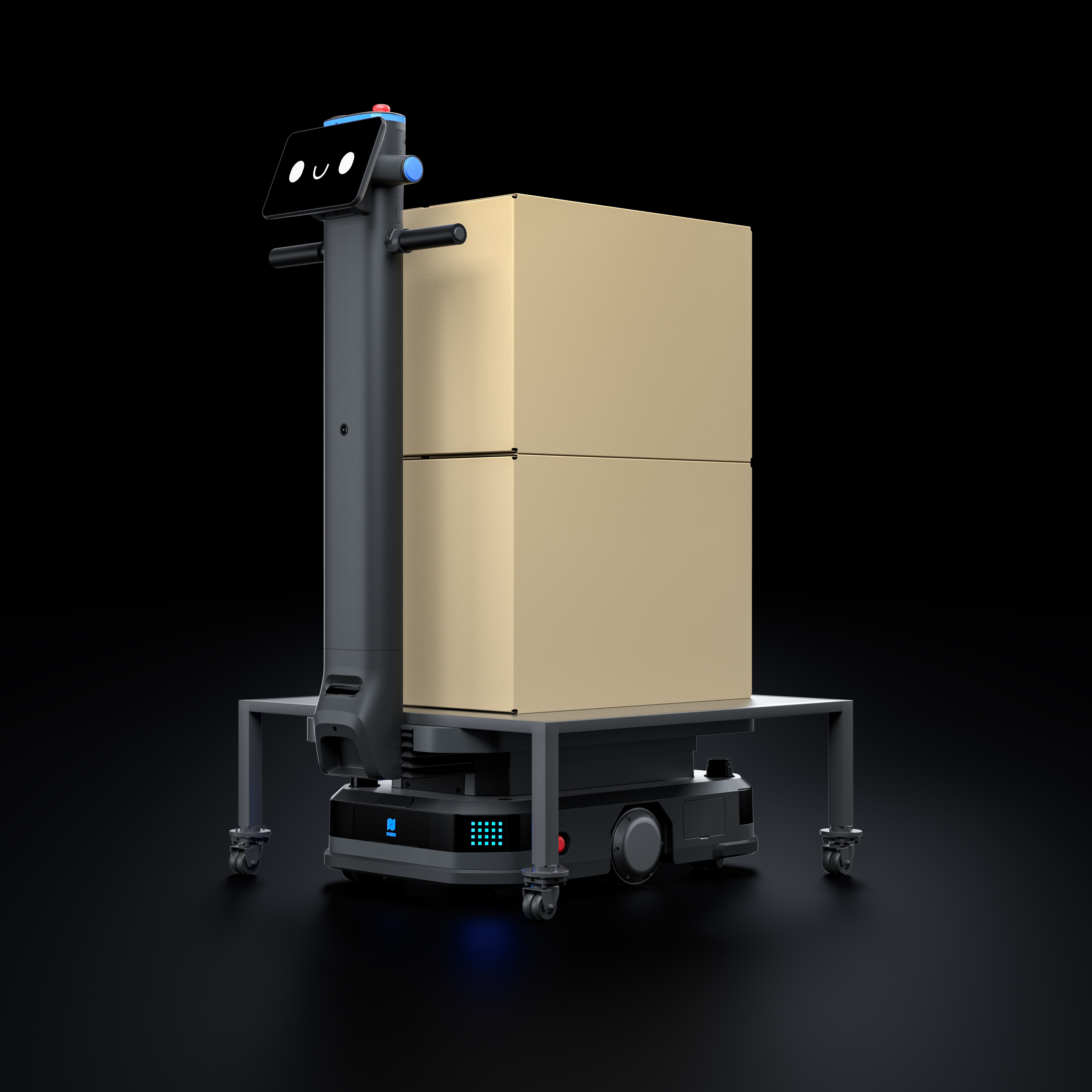

AMR-0600 product view 6

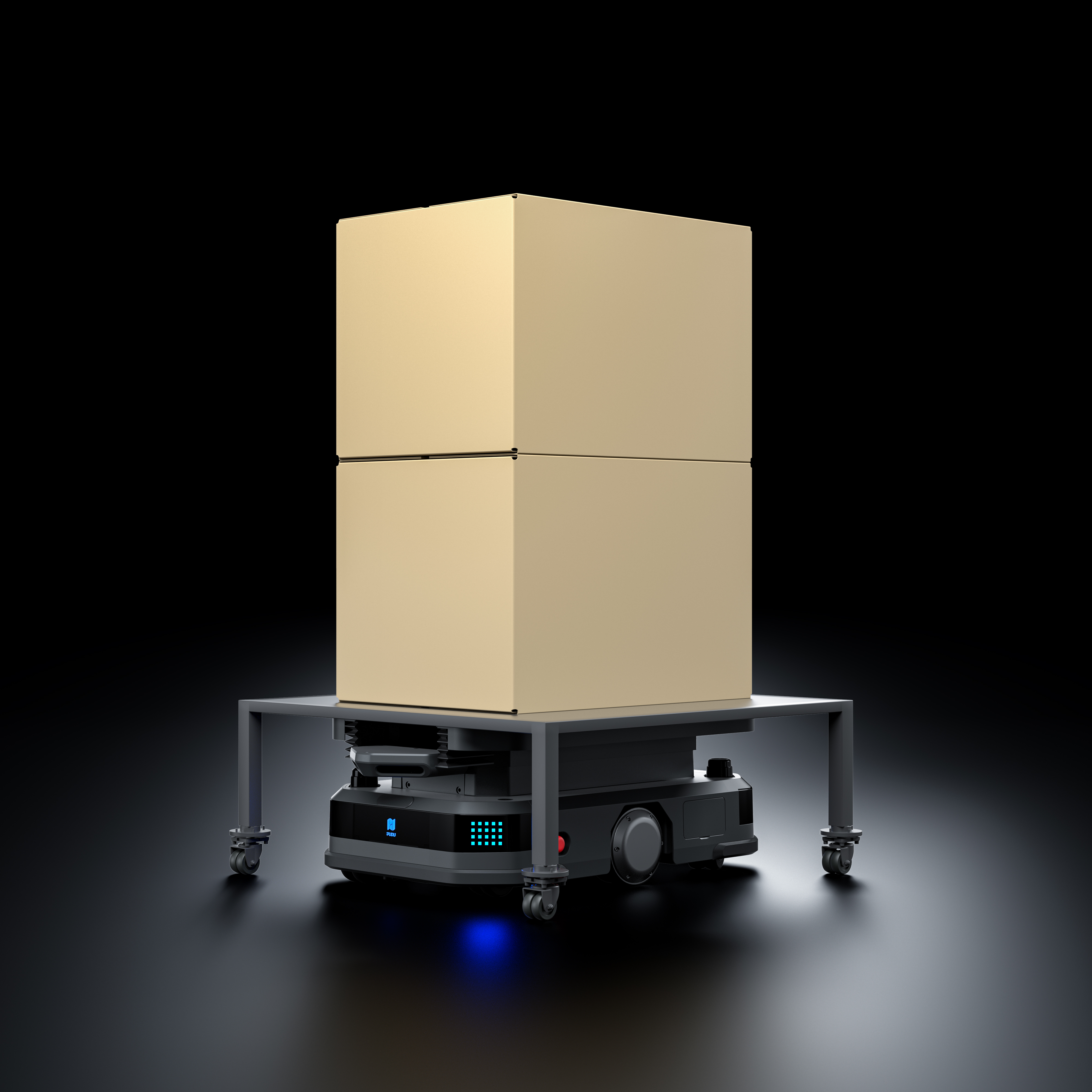

AMR-0600 product view 7

What it solves

Built around real site constraints

/01
600 kg payload doubles output per trip

A 600 kg payload capacity is built for heavy material transport, greatly reducing delivery frequency and improving efficiency per trip.

/02
Mast and underride versions, freely selectable

The mast version has a built-in screen and runs without a central control system, with power-assist switch, quick-access buttons and front indicator; the underride version is just 255 mm high, travelling beneath racks and lifting from the centre with minimal path clearance.

/03
Rack group recognition

Advanced navigation and perception systems intelligently identify target storage locations and autonomously perform pick-and-place operations.

/04
VDA5050 protocol support

Compliance with the VDA5050 communication standard simplifies integration with existing WMS/MES and third-party fleet managers, avoiding vendor lock-in.

/05
Idle elevator priority scheduling

In busy multi-elevator scenarios the system monitors elevator status in real time and calls idle elevators first, avoiding peak-time congestion and wasted waiting.

/06
Narrow-aisle intelligent traffic strategy

Based on path width and the robots' real-time load dimensions, the system determines whether to apply single-lane or dual-lane traffic modes.

/07
On-premises deployment

Private on-site deployment keeps operational data inside the customer network, meeting requirements where data residency matters.

Best-fit applications

Use these applications as the first filter, then send your route, floor material and operating schedule for model confirmation.

Heavy material transferLarge warehouses & distribution centresAutomotive & equipment manufacturingAppliance & building material linesThird-party logisticsMulti-floor heavy delivery

AMR-0600

Technical specifications

TypeHeavy-payload industrial delivery / transport AMR
ConfigurationsMast version / Underride version
Mast version (L×W×H)960 × 500 × 1,350 mm
Underride version (L×W×H)845 × 500 × 255 mm
Max. payload600 kg (both versions)
WeightMast approx. 112 kg; underride approx. 94 kg
Path clearanceMast 700 mm; underride 650 mm
Cruise speed0.2 – 1.2 m/s
Max. surmountable height10 mm
Max. surmountable gap35 mm
NavigationMast: VSLAM + LiDAR SLAM; underride: LiDAR SLAM
Positioning accuracyStandard ±5 cm; precise connection ±1 cm
SchedulingDistributed self-organising network scheduling
ProtocolVDA5050 supported
DeploymentPush-to-deploy
Run-time (no load)12 hours
Charging time2 hours (0 to 90%)
Charging methodCharging station / wired charging / manual battery swap
Display10.1-inch (mast version; underride has no screen)
IoT capabilitiesElevator, e-door access, call button, dashboard
Core functionsDelivery, patrol, lifting, conveyor, towing (mast version also supports following and power-assistance)
ControlsPower-assist switch, quick-access buttons, front indicator
Rack group recognitionIdentifies target locations and performs pick-and-place autonomously
Elevator schedulingIdle-elevator priority with real-time status monitoring
Traffic strategySingle- or dual-lane mode selected automatically by path width and load dimensions
Deployment modeOn-premises (private) deployment supported
AccessoriesStandard rack / tray / towing module / conveyor

Specifications are based on the latest PanPanTech product specification document. Final configuration should be confirmed through the website contact form.

Share your floor plan or material-flow route.

For more product details, accessory options and deployment planning, contact PanPanTech through the website form or listed contact information.
