AMR-0600R Underride Lifting AMR (Rock Series)

Warehouse AMR

AMR-0600R Underride Lifting AMR (Rock Series)

The AMR-0600R is an underride lifting autonomous mobile robot for heavy material transfer. It carries a rated payload of 600 kg, stands 365 mm high, and drives beneath a pallet rack or heavy trolley to lift and move it with a 50 mm lifting stroke. Built for a wide temperature range of −10 °C to +65 °C with UV and corrosion-resistant treatment, IP43 chassis protection and an IP66 battery pack, it is suitable for outdoor campus operation as well as indoor duty. Three LiDAR units and a 215° wide-angle RGB camera provide perception, with an optional depth camera and physical bumpers front and rear. The 48 V pack recharges fully in approximately 1.1 hours.

600 kgRated payload
8 hRuntime
1.1 hFull charge
±5 mmPositioning
Contact PanPanTech→Compare models

Product views

AMR-0600R photos and configuration views

Selected product images from the latest PanPanTech specification pack.

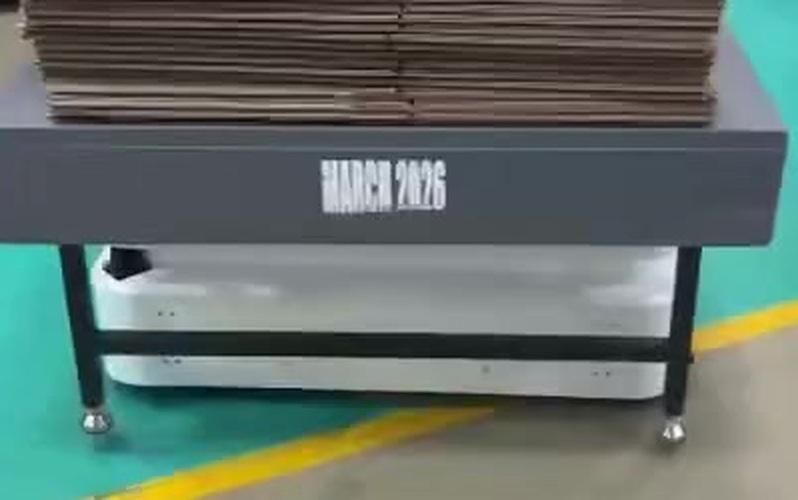

AMR-0600R — Underride lifting · pallet rack transfer

What it solves

Heavier payloads on the same wide-temperature platform

/01
600 kg payload doubles transfer efficiency A 600 kg rated payload moves heavy pallets and racks in a single trip, cutting round-trip frequency and raising throughput per hour.

1.1-hour fast recharge A 48 V / 22,500 mAh pack with a 54.7 V / 20 A dock reaches full charge in around 1.1 hours, cutting charging downtime sharply.

/02
Wide temperature −10 to +65 °C, UV and corrosion resistant Rated for −10 °C to +65 °C with UV and corrosion-resistant treatment, suitable for outdoor campus operation as well as indoors.

Three LiDAR, wide-angle vision, optional depth camera Two 360° primary LiDAR units (40 m) and a 140° secondary unit (12 m) combine with a 215° RGB camera and an optional depth camera for full-perimeter perception.

/03
Front and rear bumpers · dual emergency stop Physical bumpers front and rear work alongside two emergency stop buttons and 360° sensing to give both hardware and software layers of protection.

IP43 chassis / IP66 battery pack IP43 on the chassis and IP66 on the battery pack, suited to dusty and damp duty and reducing environmental downtime.

/04
Four navigation modes and wide peripheral support Free, tracked, hybrid and follow navigation; peripherals include lifts, automatic doors, notification lights and speakers, call buttons, follow wristbands, rollers, bins and racks.

Cloud platform for remote operation Remote deployment, live monitoring, cross-area dispatch and data visualisation, with no on-site server or network equipment required.

Best-fit applications

Use these applications as the first filter, then send your site conditions and operating schedule for model confirmation.

Heavy pallet transferWarehousing & distribution centresAutomotive component linesAppliance & large-part manufacturingPaper & packaging industryHeavy campus inter-area transfer

AMR-0600R

Technical specifications

Dimensions & Load HandlingDimensions & Load Handling
Overall dimensions (L×W×H)950 × 650 × 365 mm
Body materialABS and sheet metal
Lifting height50 mm
Standard rack outer size920 × 860 × 423 mm (custom racks supported)
Motion & AccessMotion & Access
NavigationFree / tracked / hybrid / follow
Max obstacle clearance20 mm
Floor gap crossing35 mm
Lift / gate clearance≥ 800 mm
Outdoor useSuitable campus areas supported
Perception & SafetyPerception & Safety
LiDAR 1 & 2360° scan, 0.1 – 40 m
Depth camera (optional)FOV H 72°±3° / V 50.5°±3°, 0.4 – 2 m
IMU6-DOF, ±2000 dps, 0.01° accuracy
BumpersFront and rear
Power & EndurancePower & Endurance
Battery48 V / 22,500 mAh
Full charge timeapprox. 1.1 hours
Charging dock270 × 600 × 348 mm, 15 kg
EnvironmentalEnvironmental
Chassis ingress protectionIP43
Operating temperature−10 °C to +65 °C; UV and corrosion resistant
Charging temperature5 °C to 40 °C (indoor)
Control & ConnectivityControl & Connectivity
Operating systemLinux (Ubuntu)
Chassis GPUVideoCore VI
4GFDD B1/B3/B5/B8; TDD B38/39/30/41
WiFi2.4 GHz & 5 GHz, 802.11 a/b/g/n/ac
Data allowance2 GB per robot per month
HMI & ExpansionHMI & Expansion
DisplayNo screen; controlled via cloud / PC / phone / tablet
Speaker2 units
Software & PlatformSoftware & Platform
Mini-programme / appRemote management: task dispatch, map editing, task statistics — no installation required
Remote monitoringLive status, fault alerting and remote handling
Remote dispatchCross-area scheduling

Specifications are based on the manufacturer's technical confirmation sheet. Performance figures are obtained under defined test conditions; actual results depend on site conditions and operating mode. Products are continuously improved; specifications are subject to change without notice. Final configuration should be confirmed through the website contact form.
