ACR-0290 Compact Autonomous Floor Scrubber with Station

Name: ACR-0290 Compact Autonomous Floor Scrubber with Station
Brand: PanPanTech
SKU: ACR-0290

The ACR-0290 is a compact scrubbing robot for showrooms, offices, restaurants, hotel public areas and small to mid-size shops. At 429 × 480 × 283 mm and 22.3 kg it reaches under tables and into narrow spaces. Its all-in-one station refills clean water, drains dirty water, and washes and dries the robot automatically, while multi-camera vision handles mapping, navigation and obstacle avoidance — daily floor cleaning without manual handling.

290mm roller brush

350m²/h capacity

20kPa suction

22.3kg net weight

Contact PanPanTech→Compare models

Product views

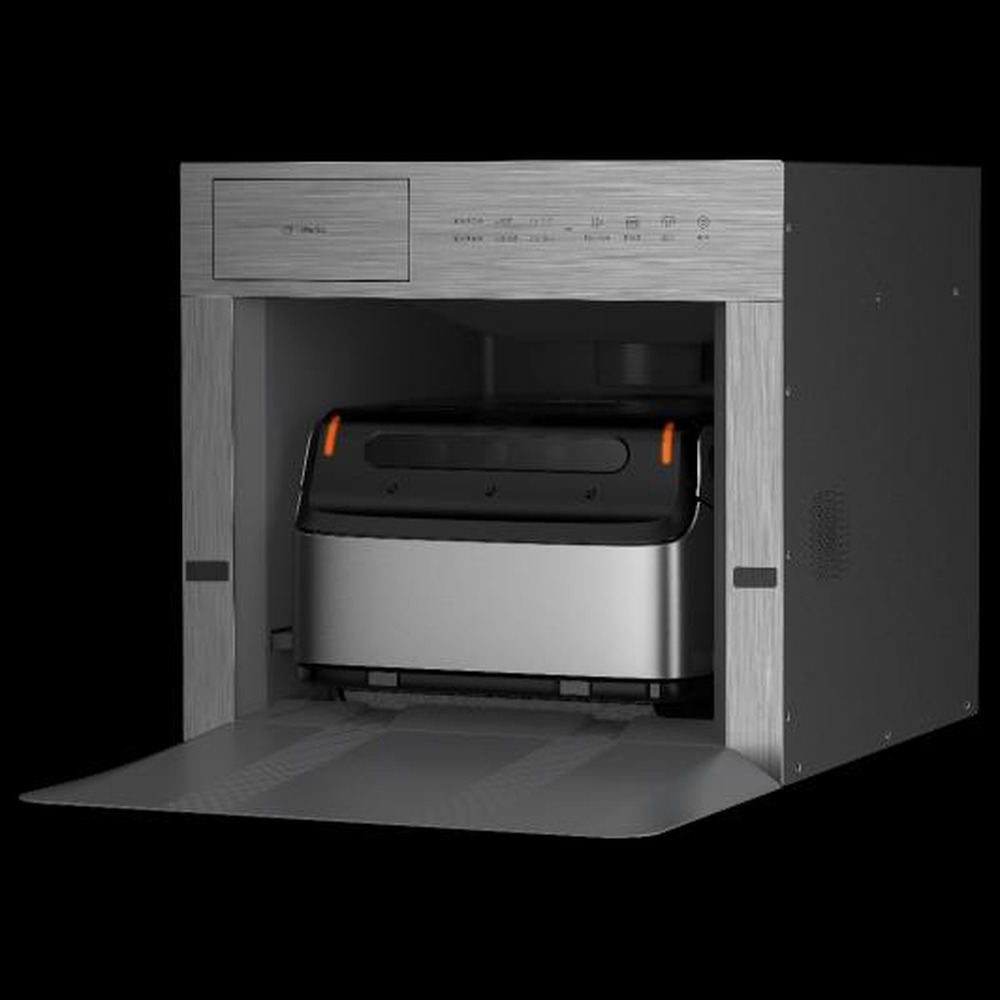

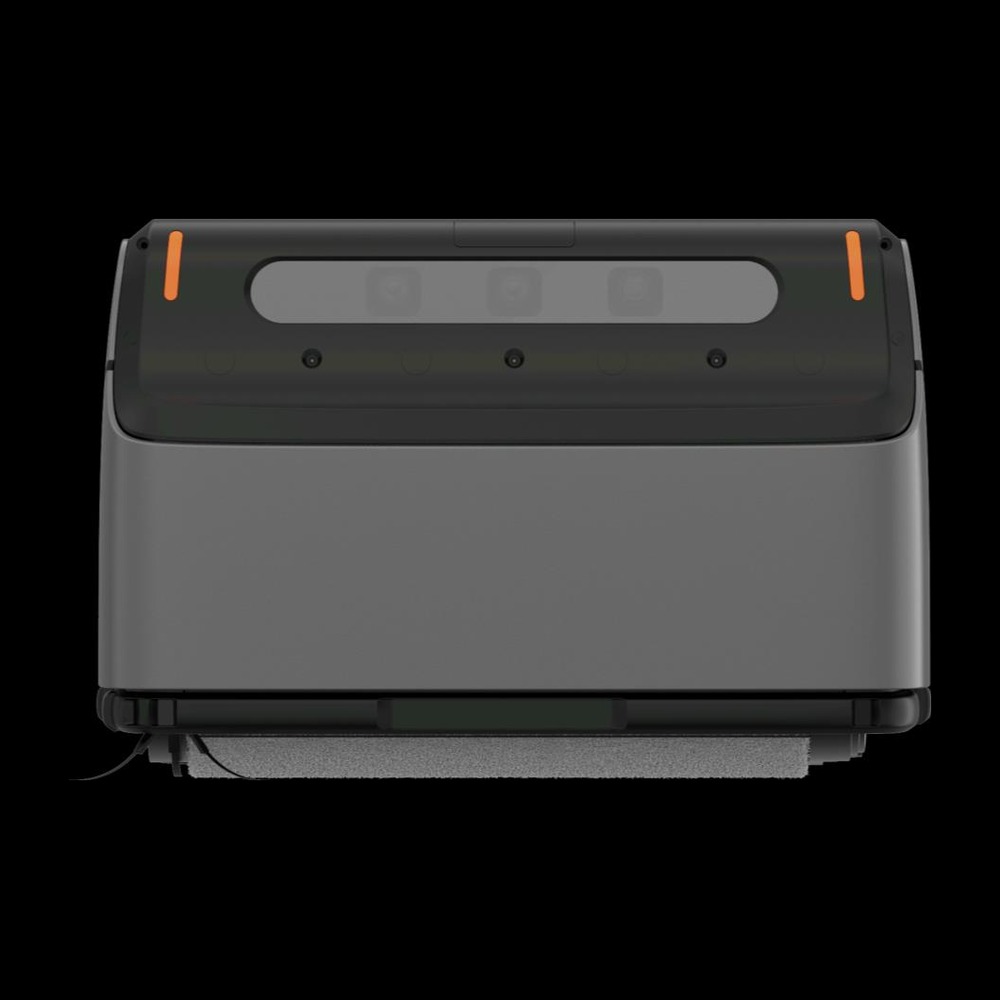

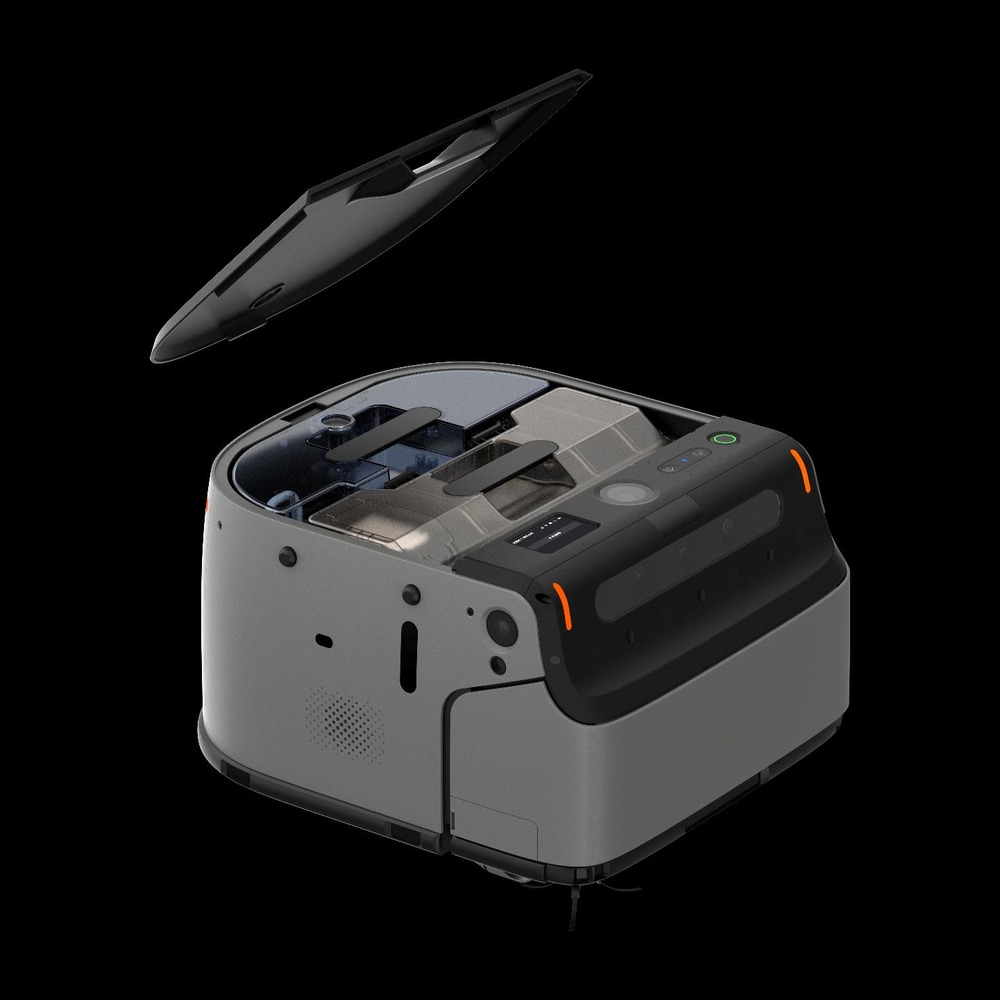

ACR-0290 photos and configuration views

Selected product images from the latest PanPanTech specification pack.

What it solves

Compact enough for the spaces a full-size machine cannot reach

/01

Compact body

429 × 480 × 283 mm and 22.3 kg: gets under tables and into narrow aisles, and one person can carry it between areas.

/02

Fully automatic station

Refills and drains water automatically, then self-cleans and dries the robot — no daily tank handling.

/03

Multi-camera vision

One-key mapping, visual obstacle avoidance and autonomous navigation; a floor-material sensor detects the surface type.

/04

20 kPa suction, 290 mm roller

A 20 mm wide debris intake with 20 kPa suction handles wet and dry soil together, with near-zero edge cleaning.

/05

Five cleaning modes

Including detergent scrubbing and floor sanitising, at up to 0.8 m/s.

/06

Fast charging

2 h runtime and 1.5 h fast charge; returns to the station between tasks.

Best-fit applications

Use these applications as the first filter, then send your site conditions and operating schedule for model confirmation.

Corporate showroomsOfficesRestaurants and canteensHotel public areasBank branchesSmall and mid-size shops

ACR-0290

Technical specifications

Dimensions & Weight

Robot (W×L×H)429 × 480 × 283 mm

Robot net weight (excl. water)22.3 kg

Station (L×W×H)600 × 581 × 556 mm

Station weight26.3 kg

Cleaning Performance

Roller brush width290 mm

Cleaning capacity350 m²/h

Cleaning speed0.8 m/s

Suction20 kPa (rated)

Cleaning modes5, including detergent scrubbing and floor sanitising

Clean / recovery tank3.5 L / 3.5 L (recovery tank with solid-liquid separation and drain pump)

Obstacle clearance2 cm

Battery & Electrical

Battery capacity20 Ah

Rated voltage / power24 V / 220 W

Runtime / fast charge2 h / 1.5 h

Sensing & Interface

NavigationMulti-camera vision; visual obstacle avoidance; autonomous navigation; one-key mapping

SensorsFront, side and top cameras; ranging sensors; IR illuminators; 6 × cliff sensors; floor-material sensor

Display / connectivity3.0-inch colour display / Wi-Fi · Bluetooth · 4G

Station

FunctionsAutomatic refill, drain, self-cleaning, self-drying and charging

Rated input220 V~

Rated output / power25 V ⎓ 15 A / 350 W

ConnectionsWater inlet, drain outlet, power

Operating Environment

Robot0 – 40 °C, ≤ 95 % RH

Station0 – 40 °C

Specifications are based on the manufacturer's technical confirmation sheet. Performance figures are obtained under defined test conditions; actual results depend on site conditions and operating mode. Products are continuously improved; specifications are subject to change without notice. Final configuration should be confirmed through the website contact form.
