ACR-0350 Compact Full-Stack Cleaning Robot

Name: ACR-0350 Compact Full-Stack Cleaning Robot
Brand: PanPanTech
SKU: ACR-0350

The ACR-0350 is a compact cleaning robot built for small and mid-size indoor spaces and narrow aisles. At just 400 × 400 × 360 mm and 27 kg unloaded, it delivers full-stack cleaning — sweeping, vacuuming, mopping and scrubbing — in a single pass using a sweep-front, vacuum-centre, scrub-rear layout. It passes aisles as narrow as 60 cm, runs below 60 dB, and its actively extending side brush achieves genuine zero-edge cleaning.

Full-stacksweep·vac·mop·scrub

60 cmnarrowest aisle

< 60 dBoperating noise

15 kPasuction per channel

Contact PanPanTech→Compare models

Product views

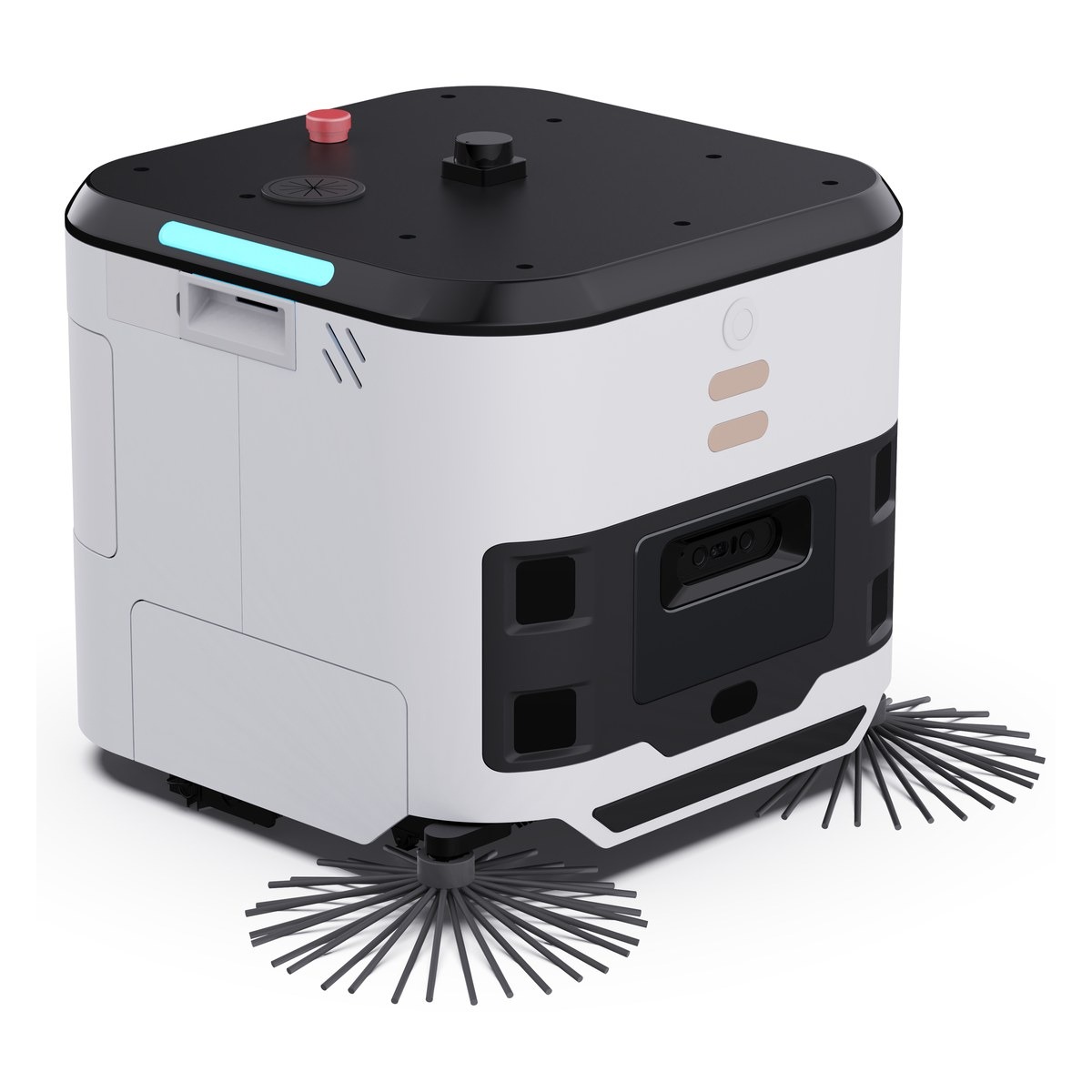

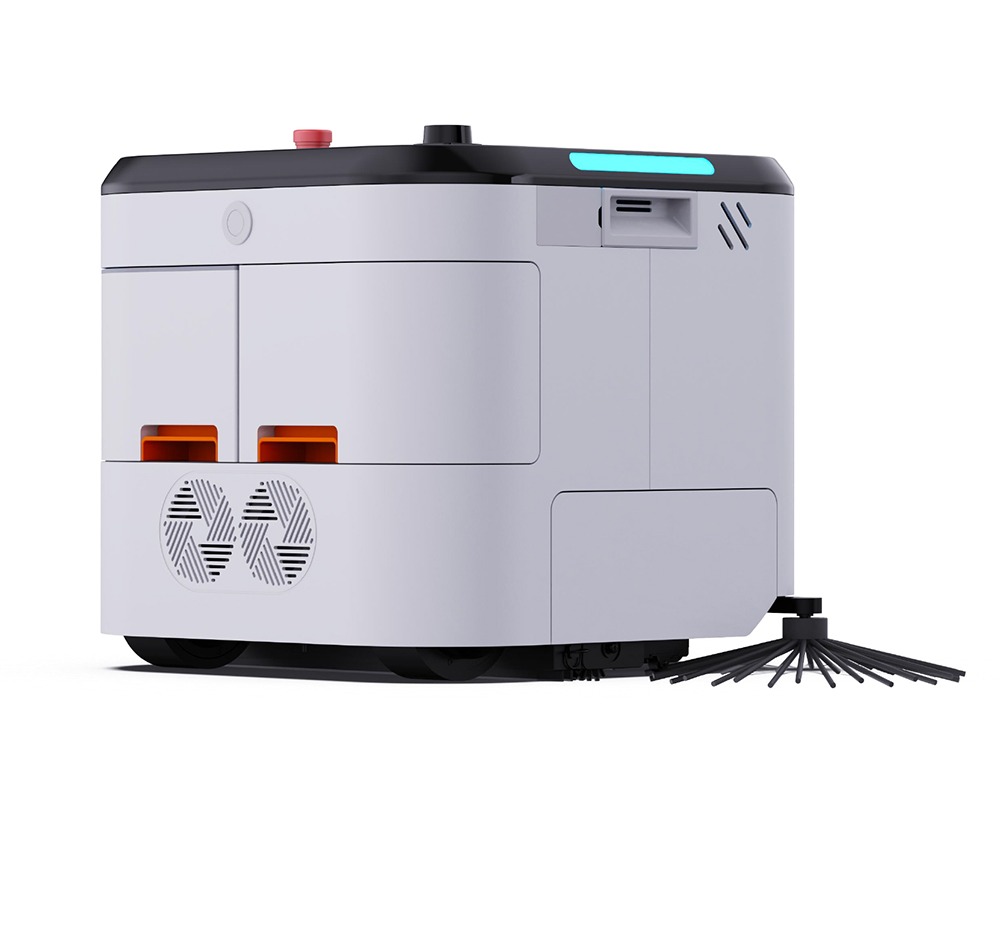

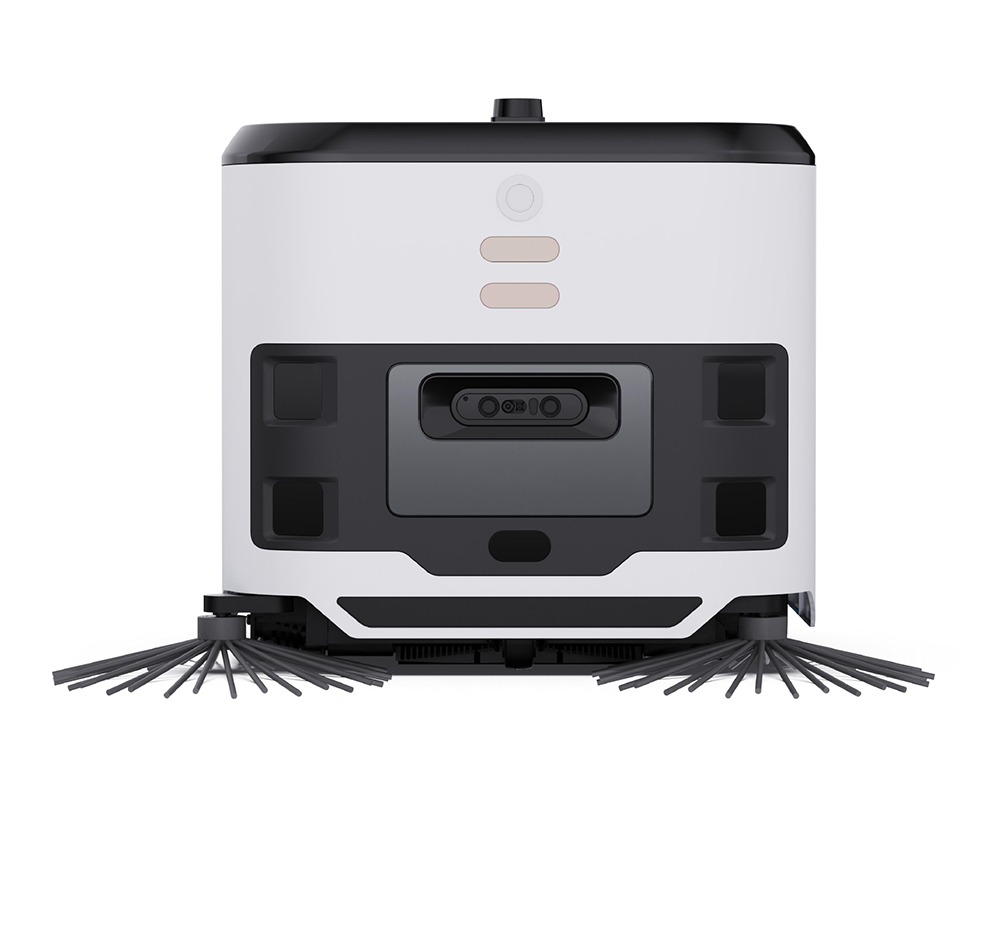

ACR-0350 photos and configuration views

Selected product images from the latest PanPanTech specification pack and matched supplier materials.

What it solves

Built around real site constraints

/01

Sweep, vacuum and scrub in one pass

Dry and wet soil are handled simultaneously — three cleaning stages completed in a single pass, with no need to cover the same area twice.

/02

Passes 60 cm aisles

A 400 mm body width clears aisles down to 60 cm, reaching between racking, office partitions and corridors that conventional machines cannot enter.

/03

Actively extending side brush for true zero-edge cleaning

The side brush extends to work along the edge with a minimum wall distance of zero, leaving no residue at skirting boards and corners.

/04

Separate dry and wet channels prevent recontamination

Independent dry and wet paths with multi-stage antibacterial filtration keep fine particles contained and avoid secondary contamination.

/05

Twin fans with independent ducts, 15 kPa suction

A twin-fan design with separate air ducts delivers 15 kPa per channel for effective deep cleaning.

/06

AI debris recognition with spot cleaning

An intelligent debris recognition algorithm identifies soiled areas and cleans them directly, reducing unproductive travel.

/07

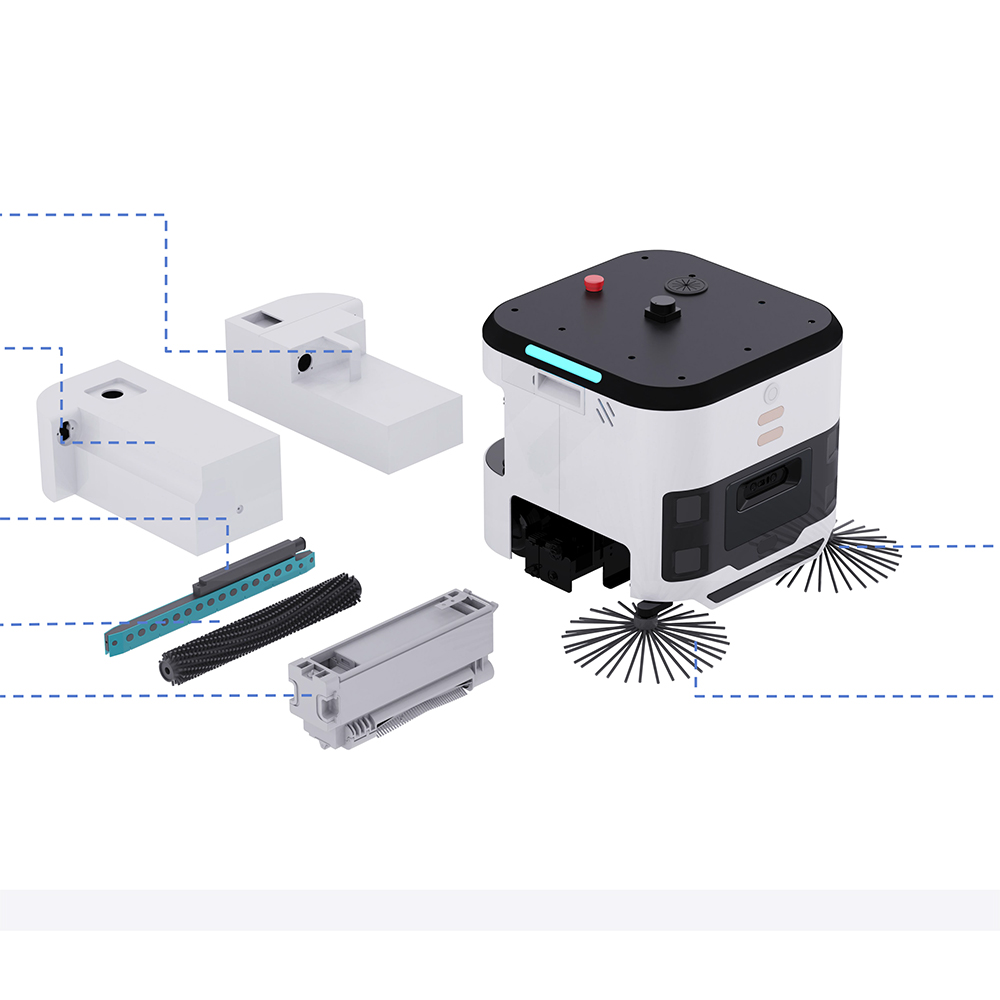

Quiet operation and modular servicing

Below 60 dB the robot can run during business hours; a modular component design keeps routine maintenance simple.

Best-fit applications

Use these applications as the first filter, then send your route, floor material and operating schedule for model confirmation.

Small & mid-size officesRetail chains & specialty storesClinics & care homesHotel guest areas & corridorsNarrow aisles & racking areasShowrooms & reception areas

ACR-0350

Technical specifications

Dimensions (L×W×H)400 × 400 × 360 mm (excl. side brush)

Weight27 kg unloaded

Operating noise< 60 dB

Cleaning modesSweeping / vacuuming / mopping / scrubbing (full-stack)

Cleaning capacity200 m²/h

Sweeping width530 mm

Scrubbing width350 mm

Brush disc diameter180 mm (under pressure)

Scrubbing roller length310 mm

Vacuum roller length165 mm

Roller brush speed300 rpm

Max. suction15 kPa (per channel)

Clean / recovery tank5 L / 3.5 L

Dust box0.7 L

Water flow rate50 mL/min

Battery24 V / 15 Ah

Runtime1.5 hours

Charging time1.5 hours

Sensor suite2D LiDAR + structured-light camera + line laser + ultrasonic radar

Max. mapping area5,000 m²

Minimum wall distance0 (actively extending side brush)

Min. fall detection height5 cm

Max. travel speed0.5 m/s

Narrowest passing width60 cm

Minimum passing height50 cm

ConstructionModular design with quick-release components

Side brushActively extending disc brush (fixed type also available)

FiltrationSeparate dry/wet channels with multi-stage antibacterial filtration

Specifications are based on the latest PanPanTech product specification document. Final configuration should be confirmed through the website contact form.
