ACR-0370 4-in-1 Commercial Cleaning Robot

Name: ACR-0370 4-in-1 Commercial Cleaning Robot
Brand: PanPanTech
SKU: ACR-0370

The ACR-0370 combines scrubbing, sweeping, vacuuming and dust-mopping in a single 4-in-1 commercial cleaning robot. A compact 580 × 500 × 600 mm body weighing 68.5 kg carries 21 sensors for full 360° protection, and is available with either 2D single-line LiDAR or 3D multi-line LiDAR navigation. The matching docking station handles waste discharge, water refilling and charging automatically — suited to workshops, offices, hotels, hospitals, metro stations and campuses.

4-in-1scrub·sweep·vac·mop

2–3.5 hruntime per charge

370 mmscrubbing width

21sensors

Contact PanPanTech→Compare models

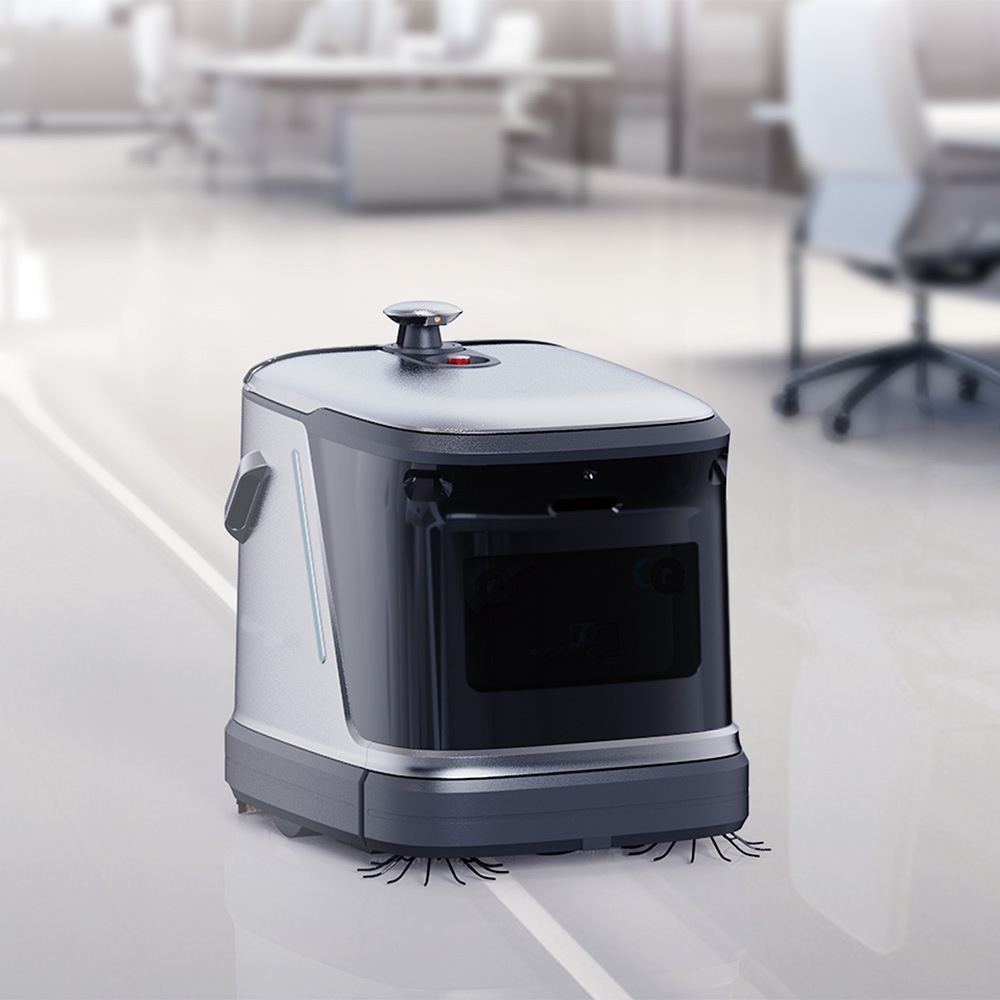

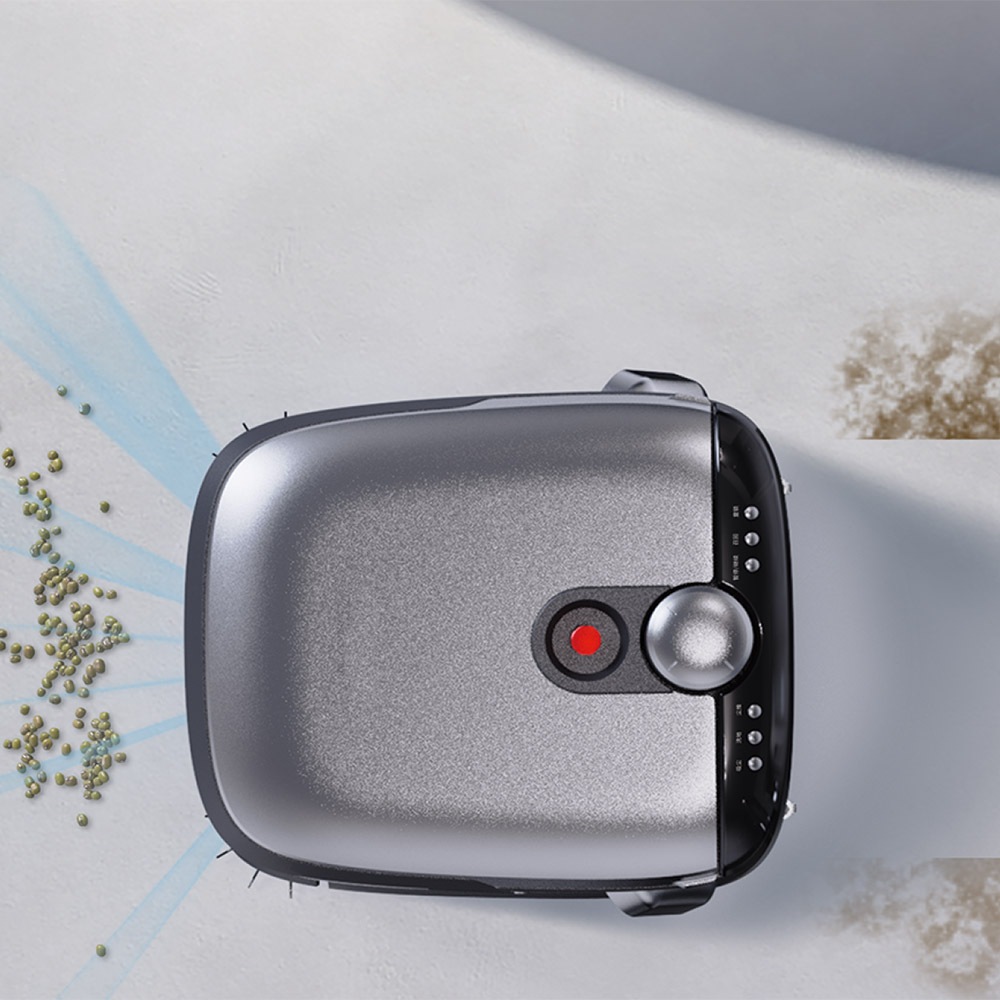

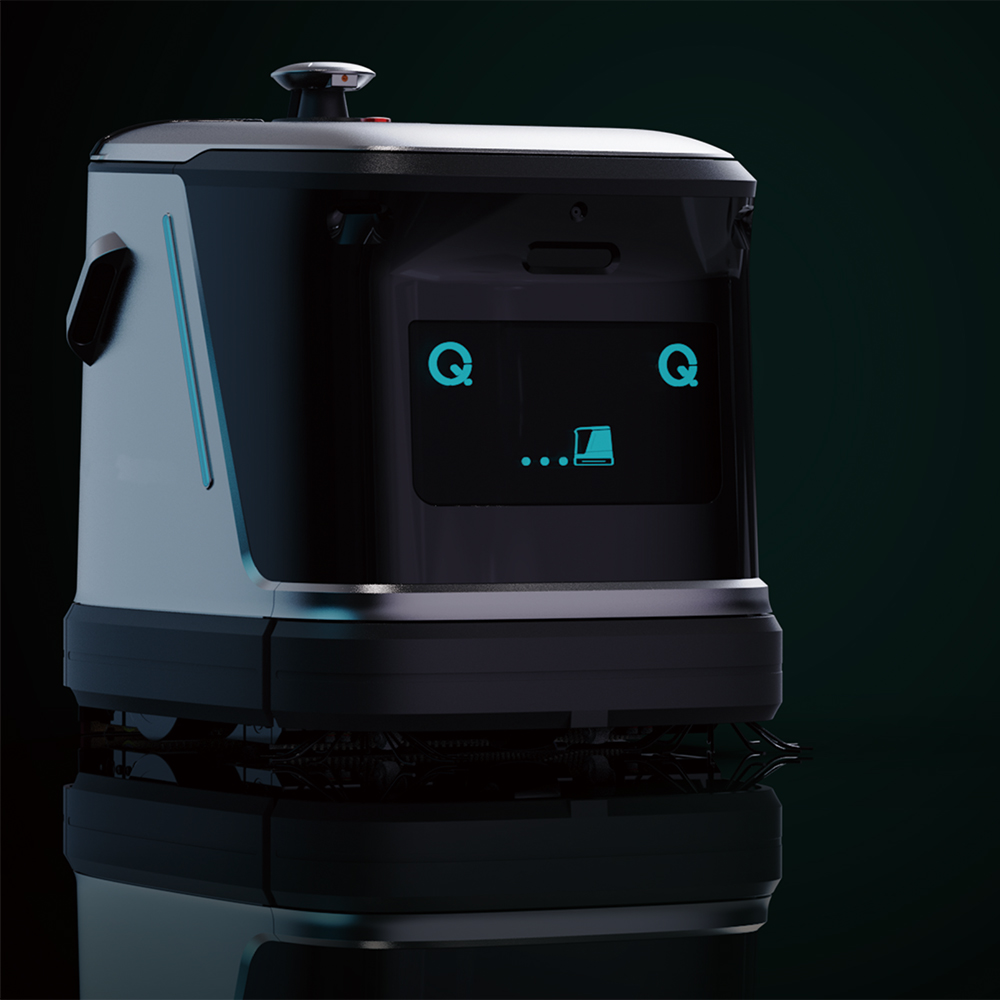

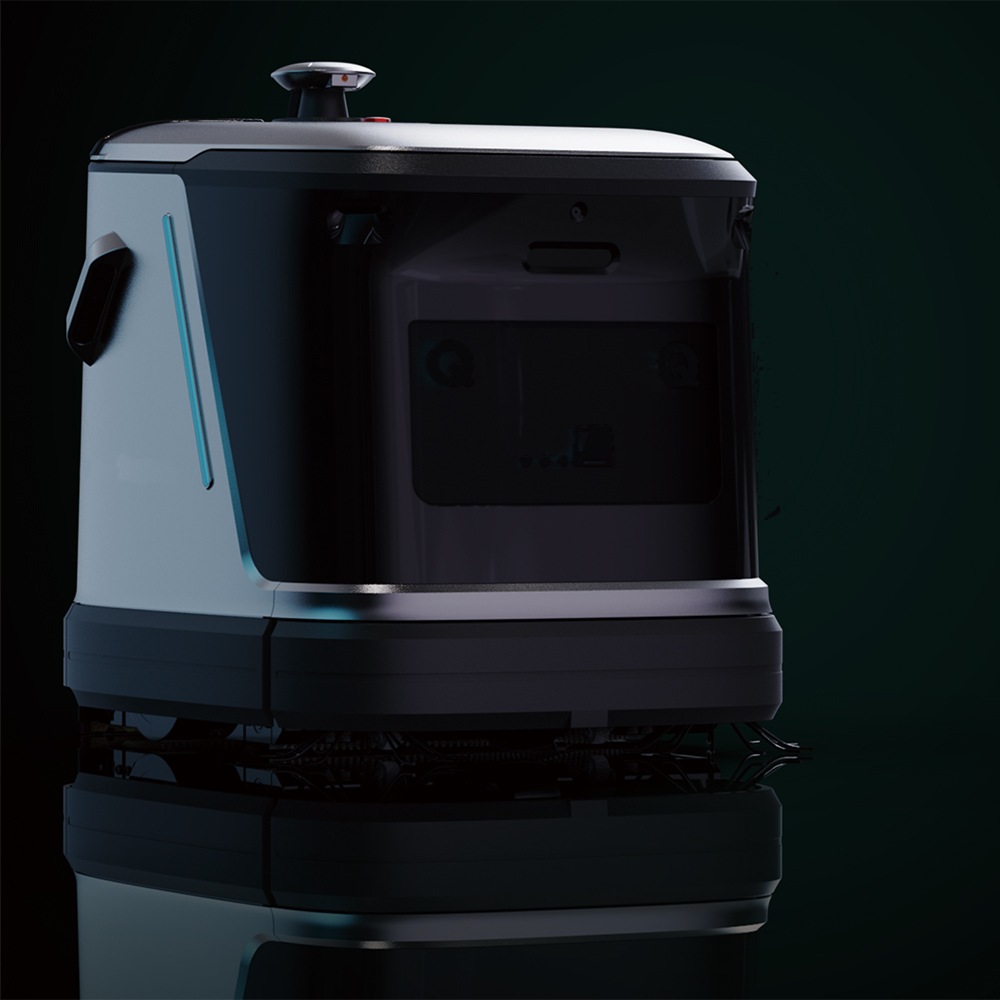

Product views

ACR-0370 photos and configuration views

Selected product images from the latest PanPanTech specification pack and matched supplier materials.

What it solves

Built around real site constraints

/01

Four cleaning functions, switched in one tap

Scrubbing, sweeping, vacuuming and dust-mopping in a single machine, switched by mode to match the task — one unit covers the full daily floor-care routine.

/02

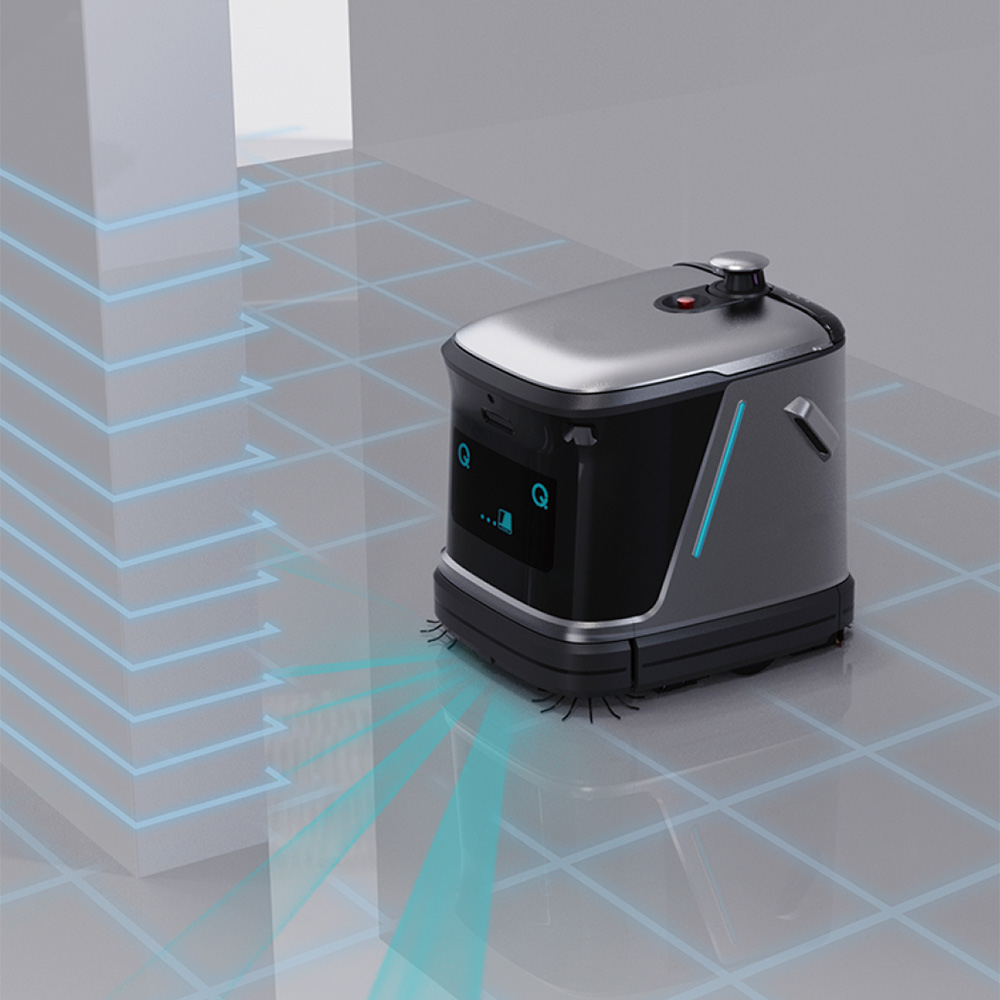

21 sensors with 360° protection

A multi-sensor fusion package derived from autonomous-driving technology delivers blind-spot-free perception for safe operation in occupied environments.

/03

Choice of 2D or 3D navigation

Available with 2D single-line LiDAR or 3D multi-line LiDAR, so the specification can be matched to site complexity and budget.

/04

Docking station: auto discharge, refill and charge

A 25 L clean / 25 L waste station performs water refilling, waste discharge and charging automatically, reducing manual intervention and supporting long unattended shifts.

/05

Three scrubbing module configurations

Roller brush + roller mop, twin roller brush or twin roller mop — selected to suit the floor material and soil type on site.

/06

4G, Wi-Fi or fully offline operation

Sites with restricted connectivity can run the robot offline; the app supports 19 languages for multi-region deployment and management.

/07

Compact body for varied indoor floors

A 580 mm body width passes standard aisles; suitable for marble, terrazzo, ceramic tile, PVC, epoxy, engineered stone and short-pile carpet.

Best-fit applications

Use these applications as the first filter, then send your route, floor material and operating schedule for model confirmation.

Workshops & production hallsOffices & commercial buildingsHotels & restaurantsHospitals & campusesMetro & transport hubsWarehousing & logistics

ACR-0370

Technical specifications

Dimensions (L×W×H)580 × 500 × 600 mm

Net weight68.5 kg (incl. 7 kg battery)

Operating noise< 70 dB

Cleaning modesScrubbing / sweeping / vacuuming / dust-mopping (4-in-1)

Scrubbing capacity350 – 500 m²/h

Sweeping capacity400 – 600 m²/h

Vacuuming capacity350 – 500 m²/h

Dust-mopping capacity400 – 650 m²/h

Scrubbing width370 mm

Sweeping width490 mm

Clean / recovery tank8 L / 6 L

Dust bag2 L

Scrubbing module optionsRoller brush + roller mop / twin roller brush / twin roller mop

Battery typeTernary lithium or LiFePO₄ (selectable)

Rated voltage25.9 V / 25.6 V

Battery capacity46 Ah

Runtime2 – 3.5 hours

Charging time2.5 hours

Station weight25 kg

Clean / waste tank25 L / 25 L

Automatic functionsWater refilling / waste discharge / charging

Discharge modesDirect / manual / automatic

Navigation options2D single-line LiDAR / 3D multi-line LiDAR

Sensor count21 units, 360° protection

Sensor typesLiDAR, 3D camera, infrared, area-array laser, ultrasonic, Hall, gyroscope, collision sensors

Travel speed0.8 m/s

Gradeability8°

Connectivity4G / Wi-Fi / offline

Specifications are based on the latest PanPanTech product specification document. Final configuration should be confirmed through the website contact form.
