Indoor Cleaning

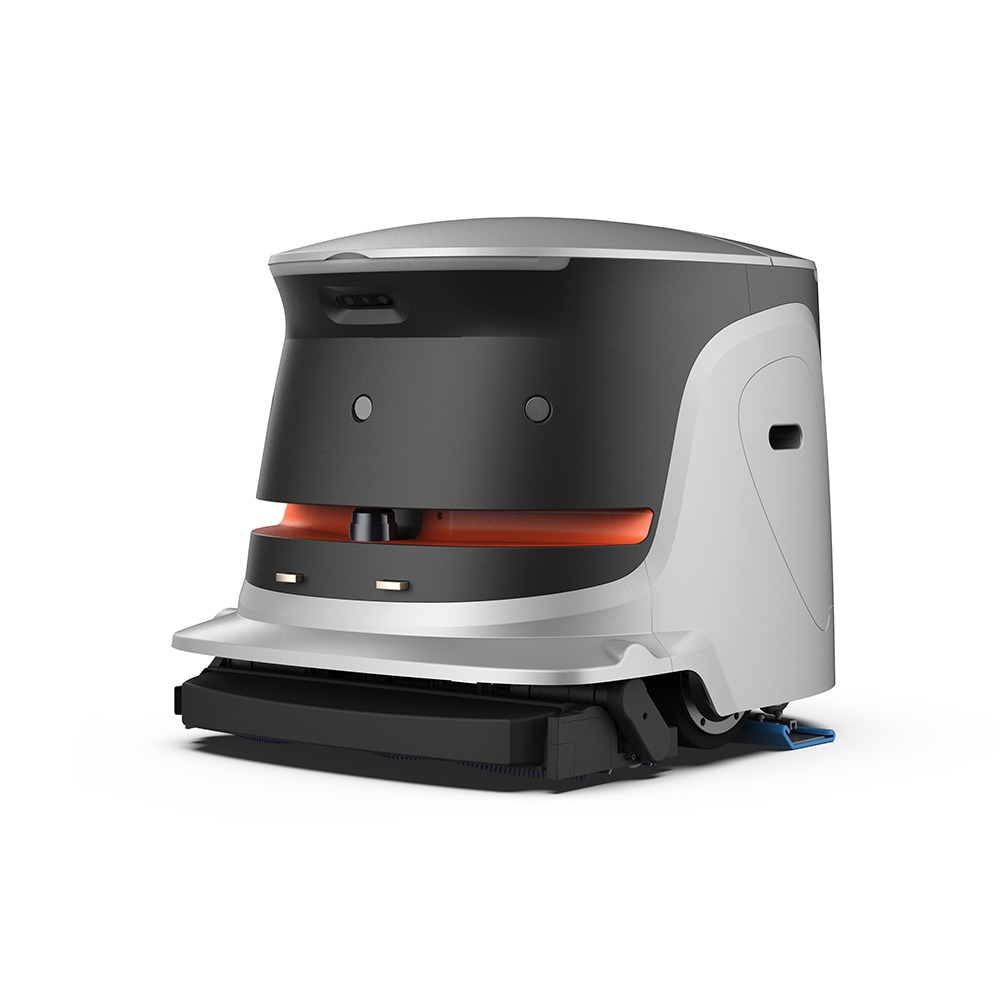

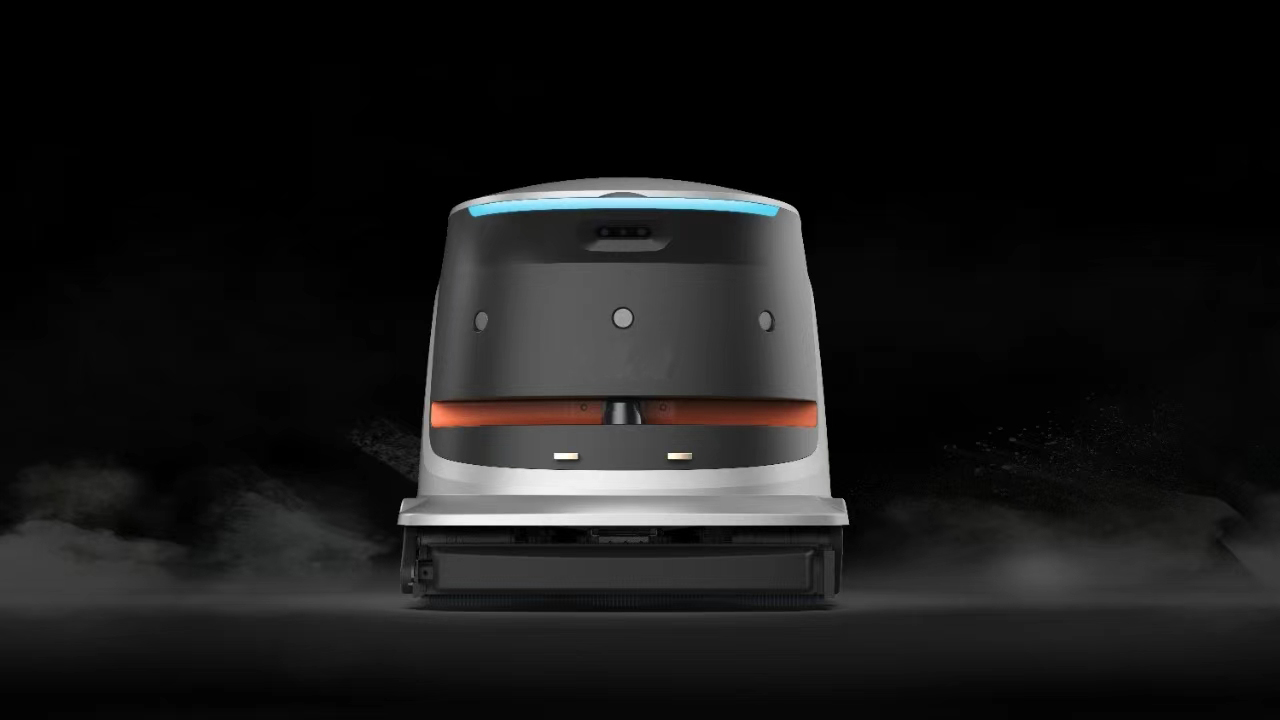

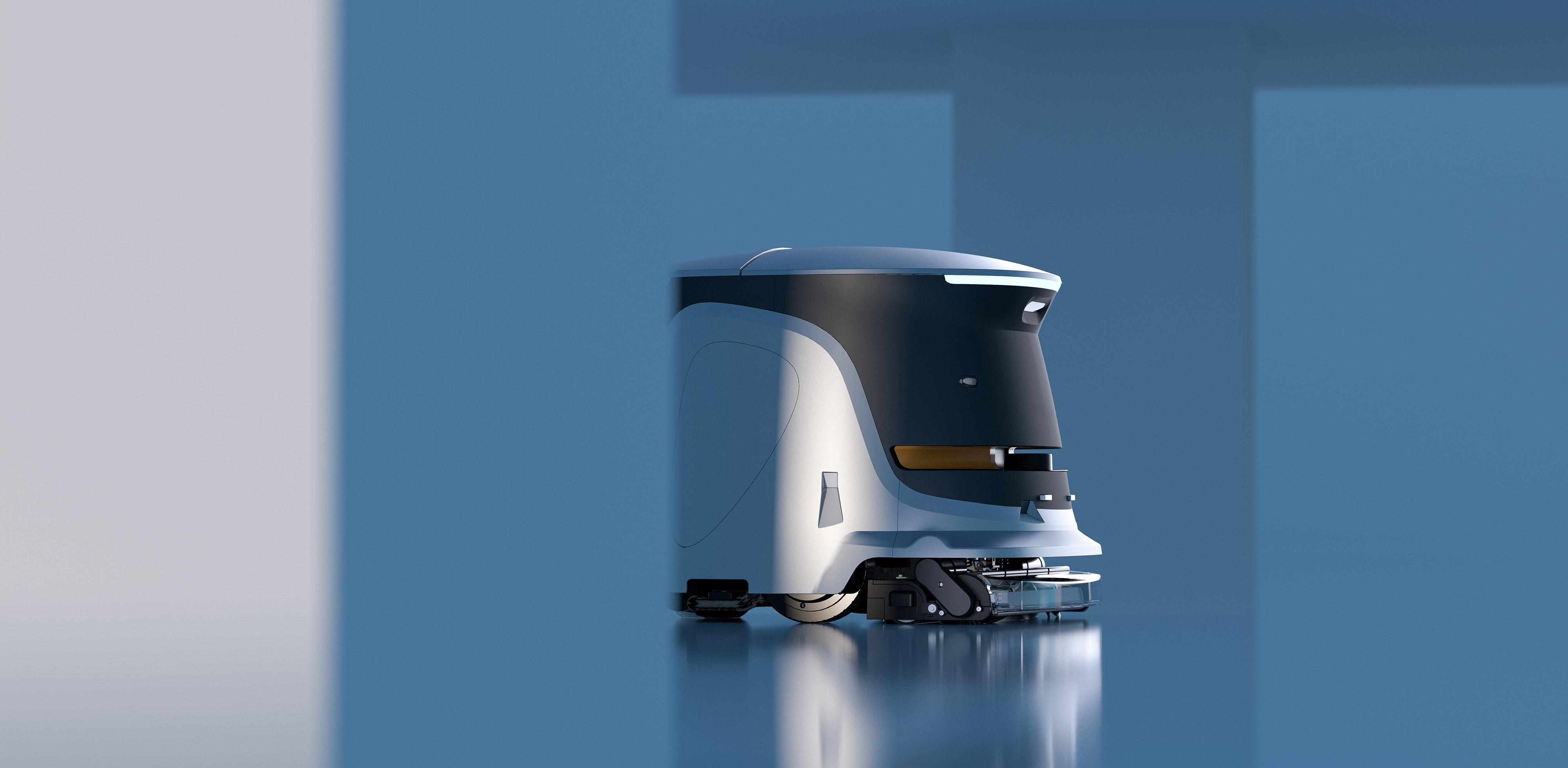

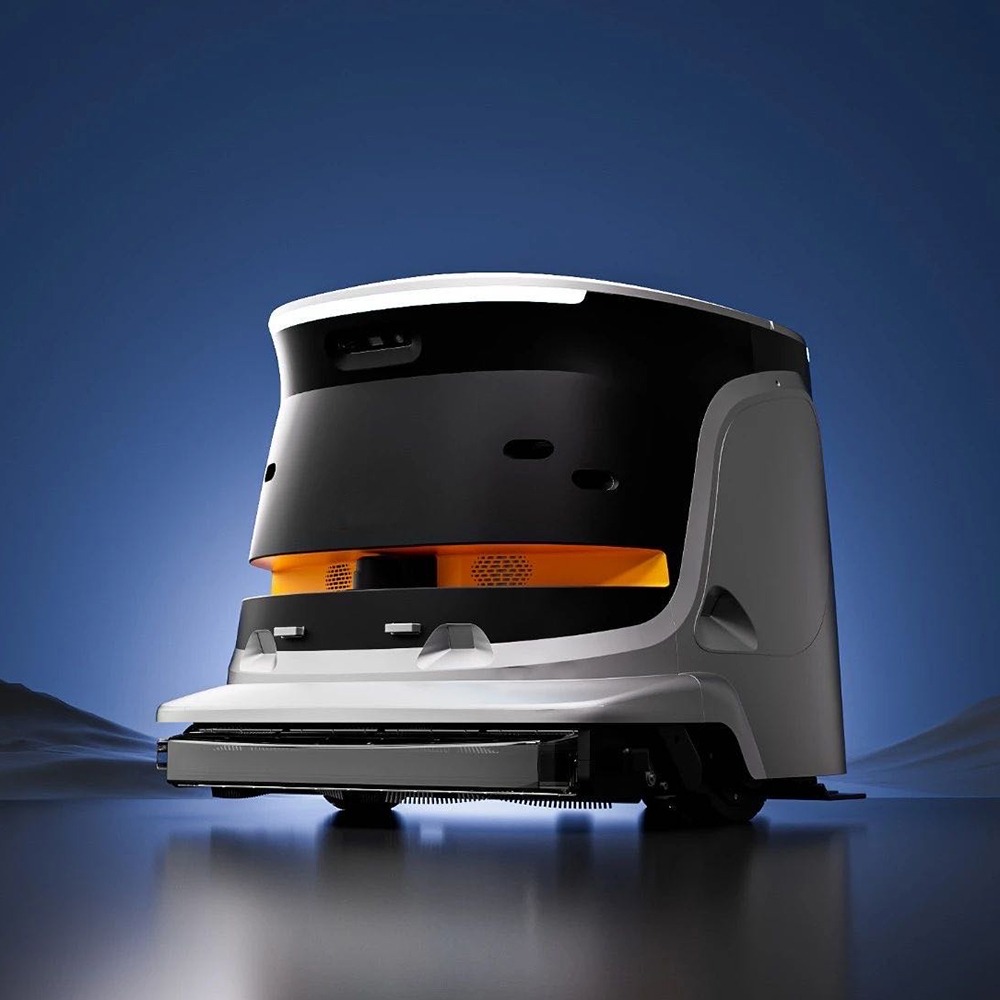

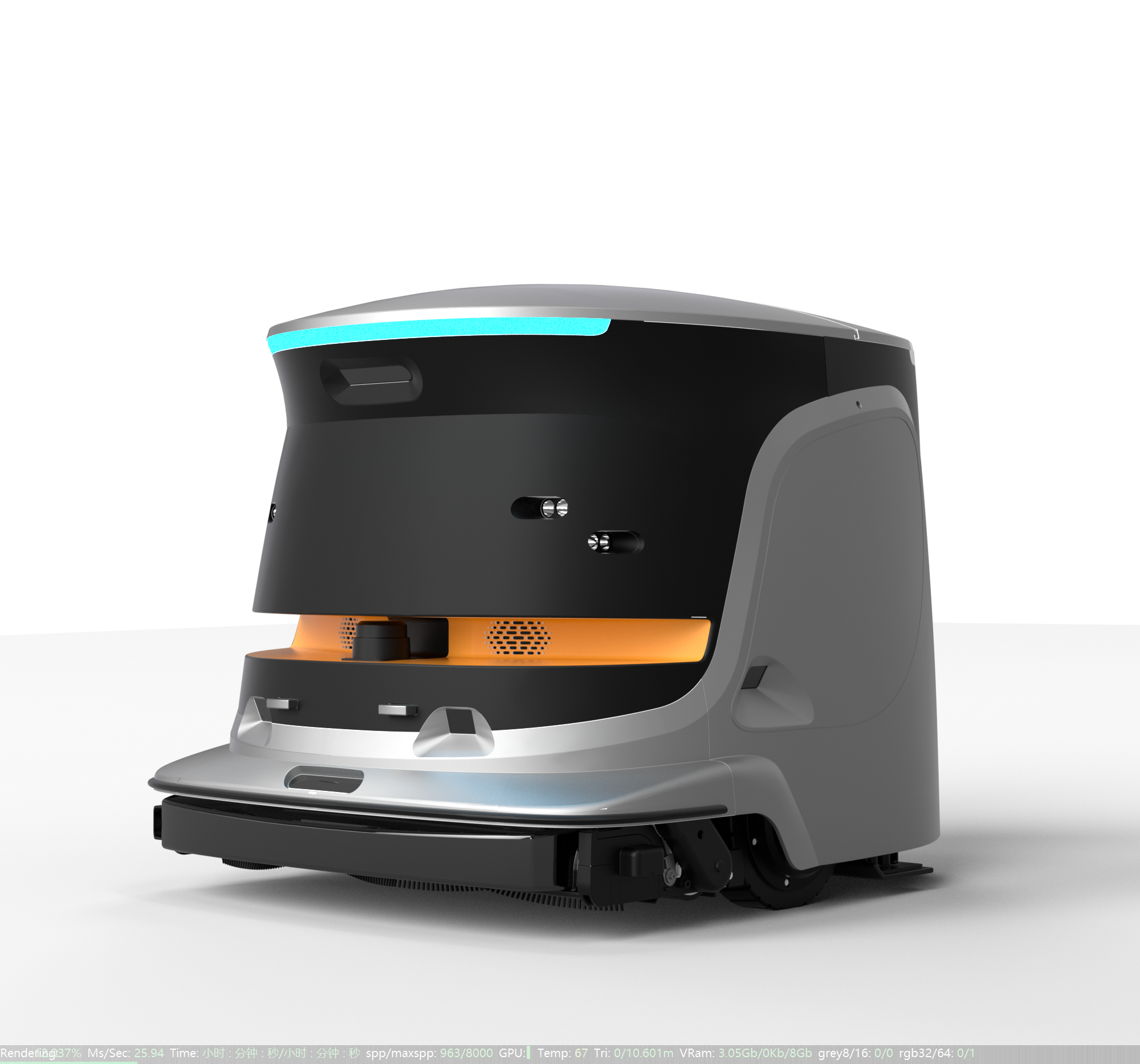

ACR-0520 All-in-One Commercial Cleaning Robot

Name: ACR-0520 All-in-One Commercial Cleaning Robot
Brand: PanPanTech
SKU: ACR-0520

The ACR-0520 combines sweeping, scrubbing, vacuuming, dust-mopping, self-cleaning and sanitising in a single 6-in-1 machine. At just 650 × 580 × 550 mm and 70 kg, it switches between cleaning modes with one tap — no parts to change — delivering up to 1,197 m²/h of scrubbing with 4.5 hours of runtime. Built for offices, hotels, healthcare and small to mid-size commercial spaces.

~1,197m²/h scrubbing

4.5 hruntime, standard

520 mmcleaning width

55 dBoperating noise

Contact PanPanTech→Compare models

Product views

ACR-0520 photos and configuration views

Selected product images from the latest PanPanTech specification pack and matched supplier materials.

What it solves

Built around real site constraints

/01

6-in-1: one machine replaces a fleet

Sweeping, scrubbing, vacuuming, dust-mopping, self-cleaning and sanitising in one unit. Switch modes from the on-board screen or the app — no modules to swap, a simpler equipment set to operate and maintain.

/02

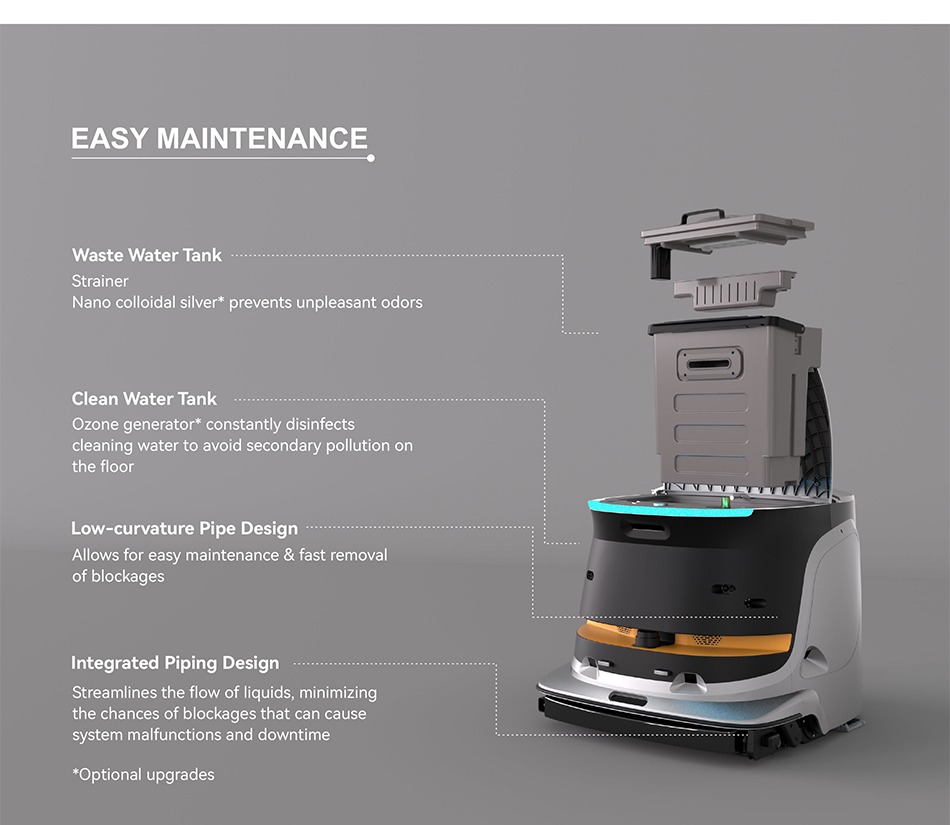

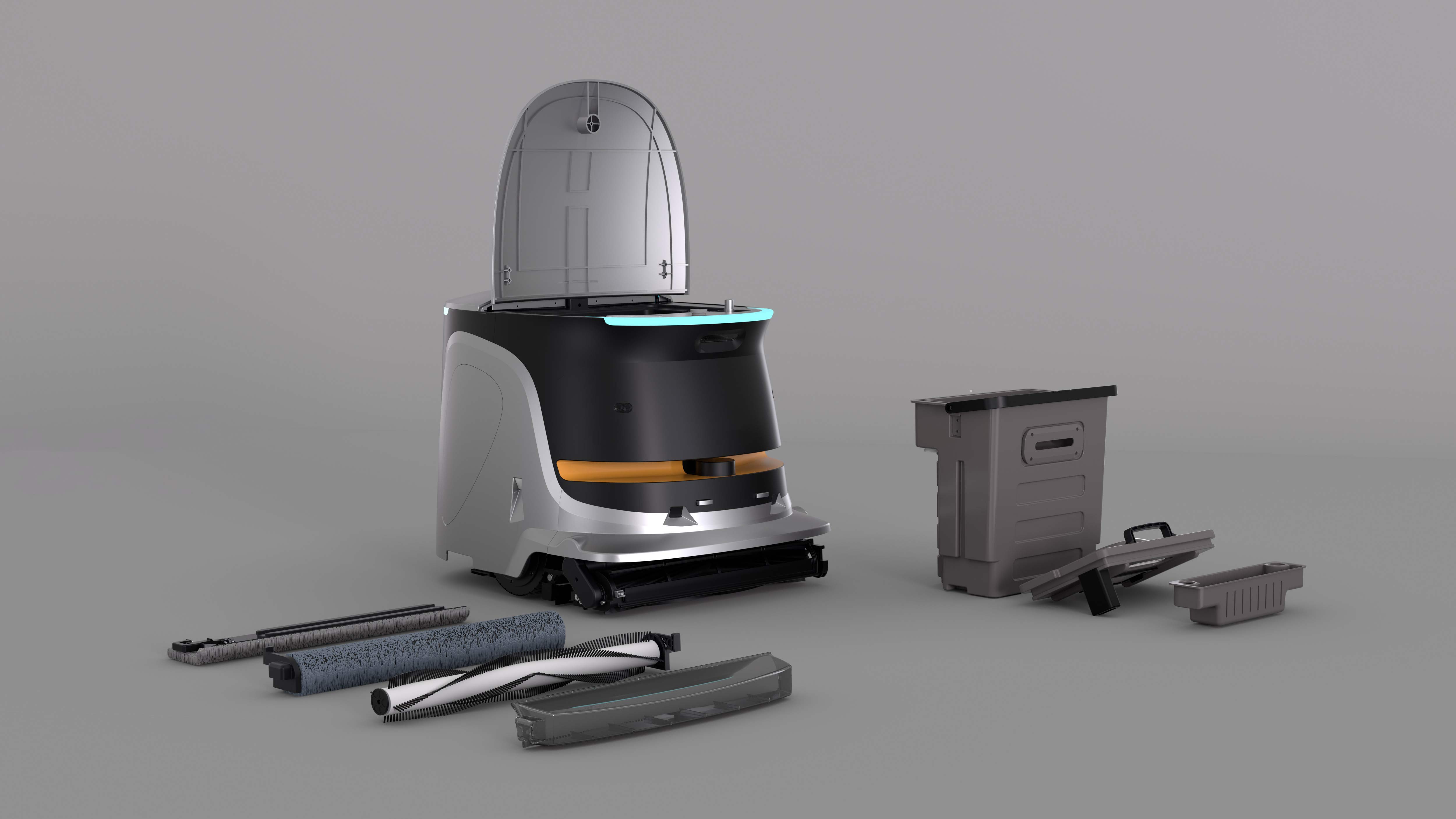

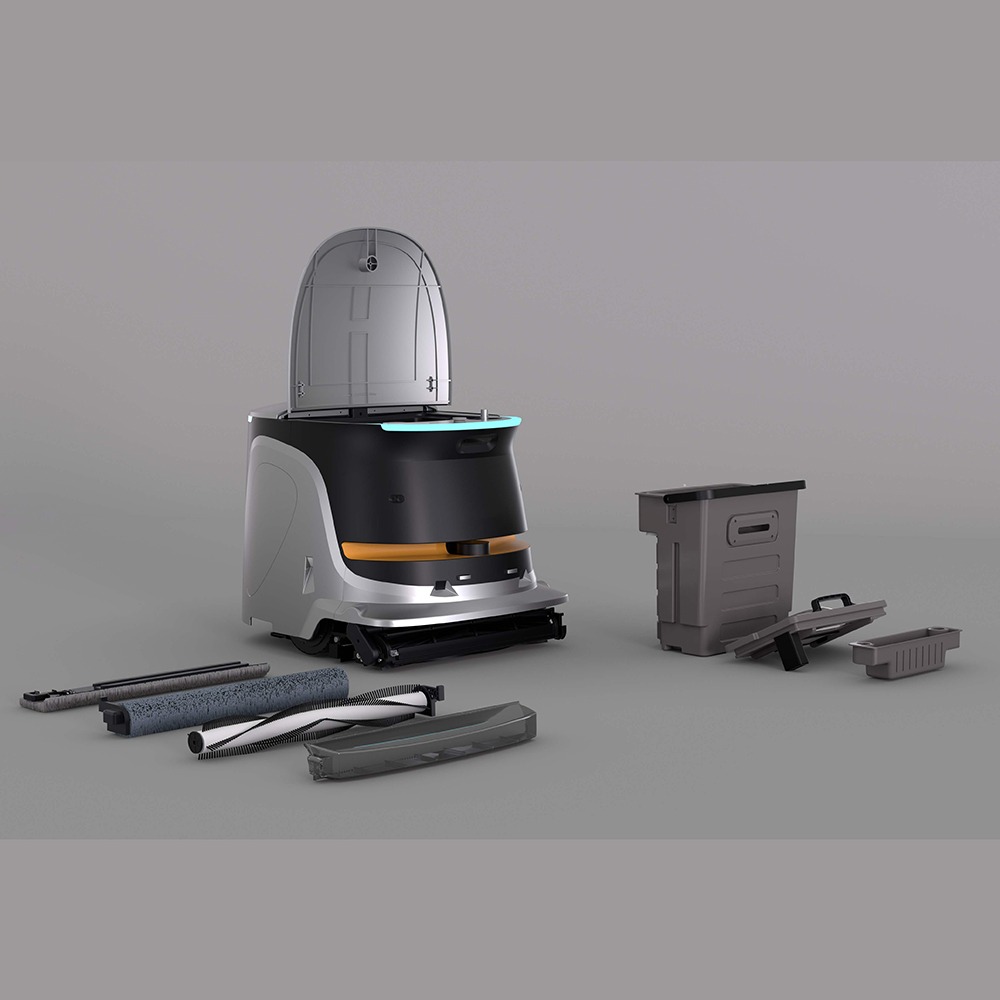

5-second tool-free module release

Scrubbing brush, sweeping brush, dust box and mop pad all release single-handed in about 5 seconds. Daily upkeep needs no tools and no specialist training.

/03

HEPA H13 filtration

Captures 99.97% of fine particles — suitable for offices, healthcare and food-related areas, and prevents dust being recirculated.

/04

55 dB — quiet enough for opening hours

55 dB when scrubbing and 45 dB when dust-mopping, so the robot can work in guest and office areas during the day without disturbing people.

/05

Long-cycle LiFePO₄ battery

25.6 V / 40 Ah lithium iron phosphate pack rated for 2,000 charge cycles, with automatic return-to-dock at 10% and a full charge in under 4 hours.

/06

15 sensors, 360° fused perception

LiDAR, two depth cameras, five line lasers, six ultrasonic sensors and a bumper strip give 0.02–50 m coverage for autonomous mapping, path planning and obstacle avoidance.

Best-fit applications

Use these applications as the first filter, then send your route, floor material and operating schedule for model confirmation.

Offices & commercial buildingsHotels & hospitalityHospitals & clinicsSmall to mid-size retailShowrooms & lobbiesSmall warehouses & workshops

ACR-0520

Technical specifications

Dimensions (L×W×H)650 × 580 × 550 mm

Net weight (excl. water)70 kg

Housing materialABS

Ingress protectionIP43

Cleaning modesScrubbing / sweeping / vacuuming / dust-mopping / self-cleaning / sanitising (6-in-1)

Cleaning capacityScrubbing ~1,197 m²/h; sweep-vacuum & dust-mop ~1,368 m²/h

Mode switchingOne tap on the machine or app — no module change required

Effective cleaning widthScrubbing 520 mm; dust-mopping 540 mm (580 mm optional)

Edge distanceApprox. 3–5 cm

Max. suction15 kPa

Clean / recovery tank22 L / 15 L

Dust box1 L

Tank runtimeStandard scrubbing 4.5 h; heavy-duty scrubbing 2.5 h

FiltrationHEPA H13 (99.97%)

Quick-release modulesYes — approx. 5 s, single-handed

Battery typeLithium iron phosphate (LiFePO₄)

Voltage / capacity25.6 V / 40 Ah

Cycle life2,000 charge cycles

Working time (100%→10%)Standard scrubbing 4.5 h; heavy-duty 2.5 h; sweep-vacuum 4.5 h; dust-mopping 25 h

Charging time< 4 hours

Charging methodAuto return-to-dock at 10%; front contact charging plates

Power input100–240 V AC

NavigationLiDAR + vision fusion; autonomous mapping and path planning

Sensor suite15 units: LiDAR ×1, depth camera ×2, line laser ×5, ultrasonic ×6, bumper strip ×1

Detection range0.02 – 50 m, 360° fused perception

Cleaning pathBoustrophedon (full-coverage)

Max. working speed0.8 m/s in all cleaning modes; 1.2 m/s max.

Min. passage width700 mm

Specifications are based on the latest PanPanTech product specification document. Final configuration should be confirmed through the website contact form.
