Indoor Cleaning

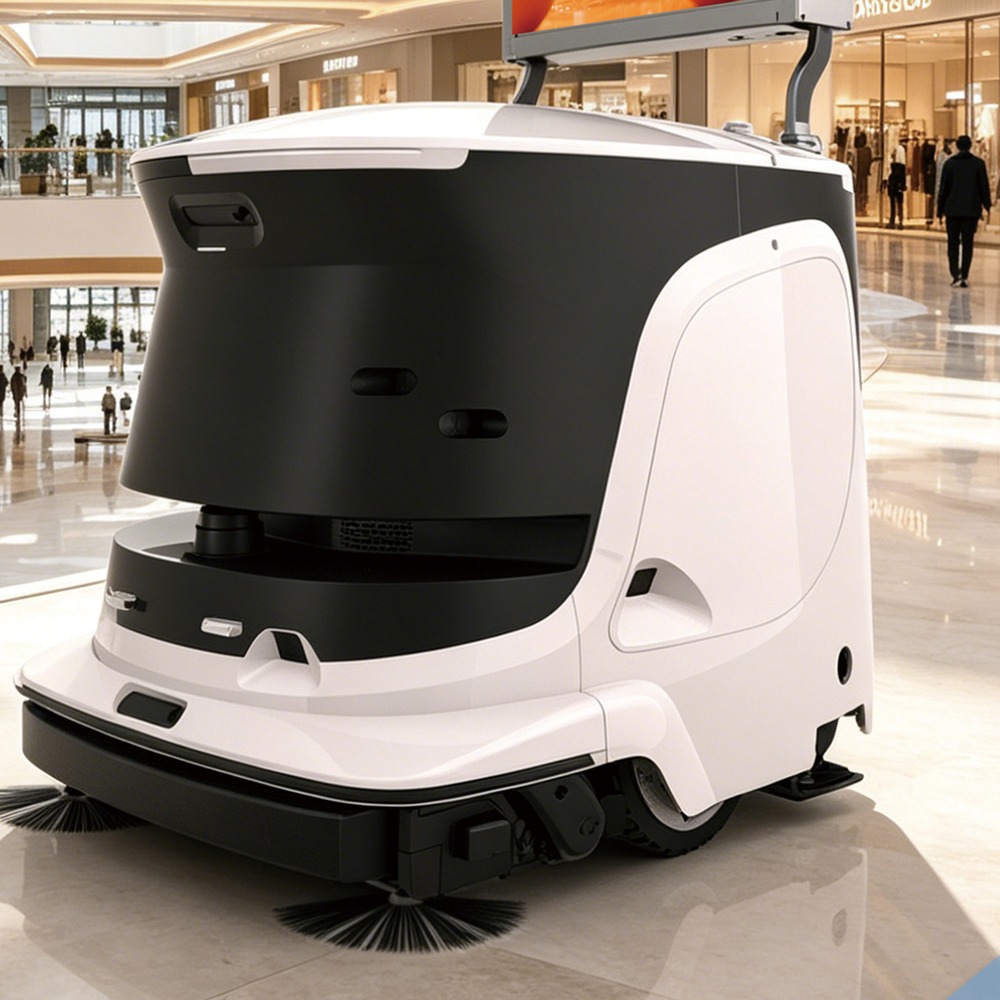

ACR-0520M Cleaning Robot with Advertising Display

Name: ACR-0520M Cleaning Robot with Advertising Display
Brand: PanPanTech
SKU: ACR-0520M

The ACR-0520M adds a 27-inch Full HD advertising display to the ACR-0520 cleaning platform, for shopping centres, supermarkets, airports and exhibition halls with heavy foot traffic. While it scrubs, vacuums and dust-mops, the robot plays video and image content as it moves, extending reach and frequency. The screen detaches quickly and can also run while the robot is parked as a fixed display — turning a cleaning machine into a mobile media asset.

27inch display

1080pFull HD 16:9

2-sidedfront and rear

520mm scrubbing width

Contact PanPanTech→Compare models

Product views

ACR-0520M photos and configuration views

Selected product images from the latest PanPanTech specification pack.

What it solves

Cleaning time that also buys you screen time

/01

Cleaning plus advertising

Floor cleaning and advertising happen at the same time — one machine covers both the cleaning and the media budget.

/02

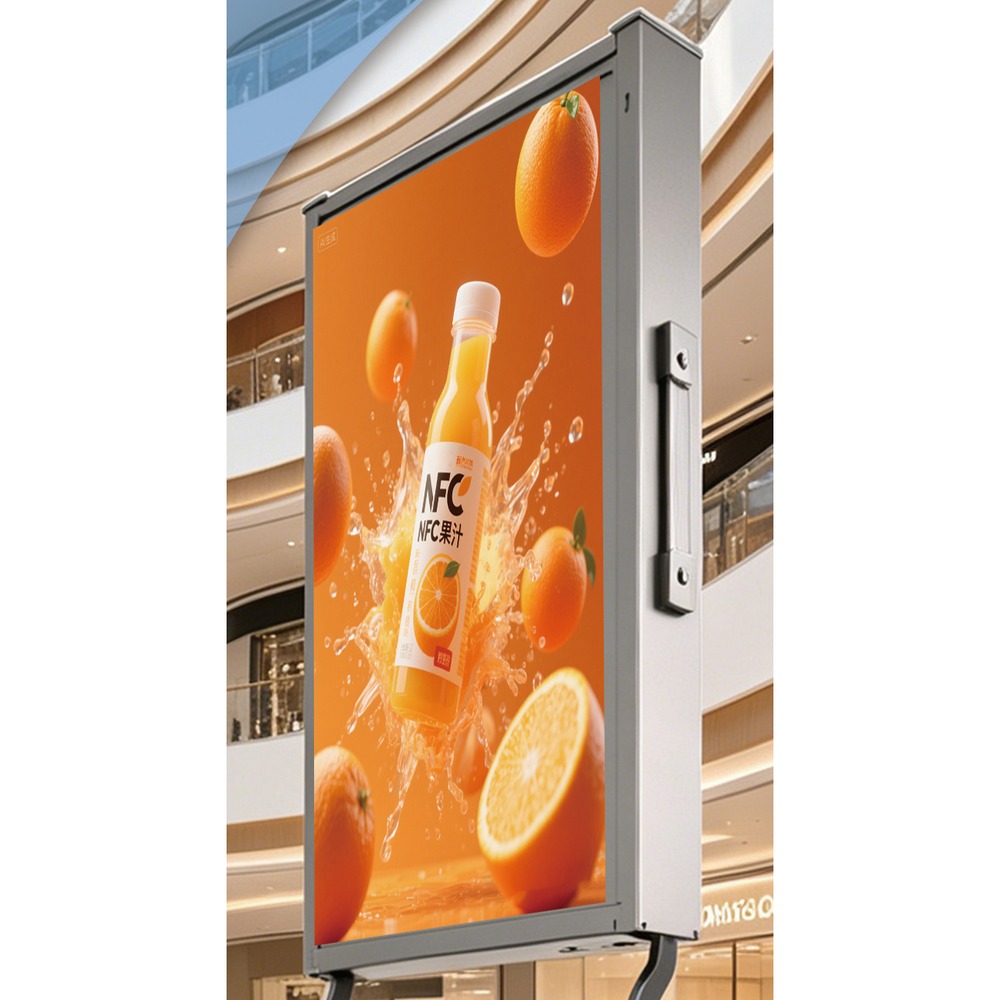

27-inch Full HD screen

1920 × 1080 resolution with 10-bit colour, readable at long distances even in busy crowds.

/03

Double-sided display

Content is shown front and rear, so shoppers in both directions of travel see it.

/04

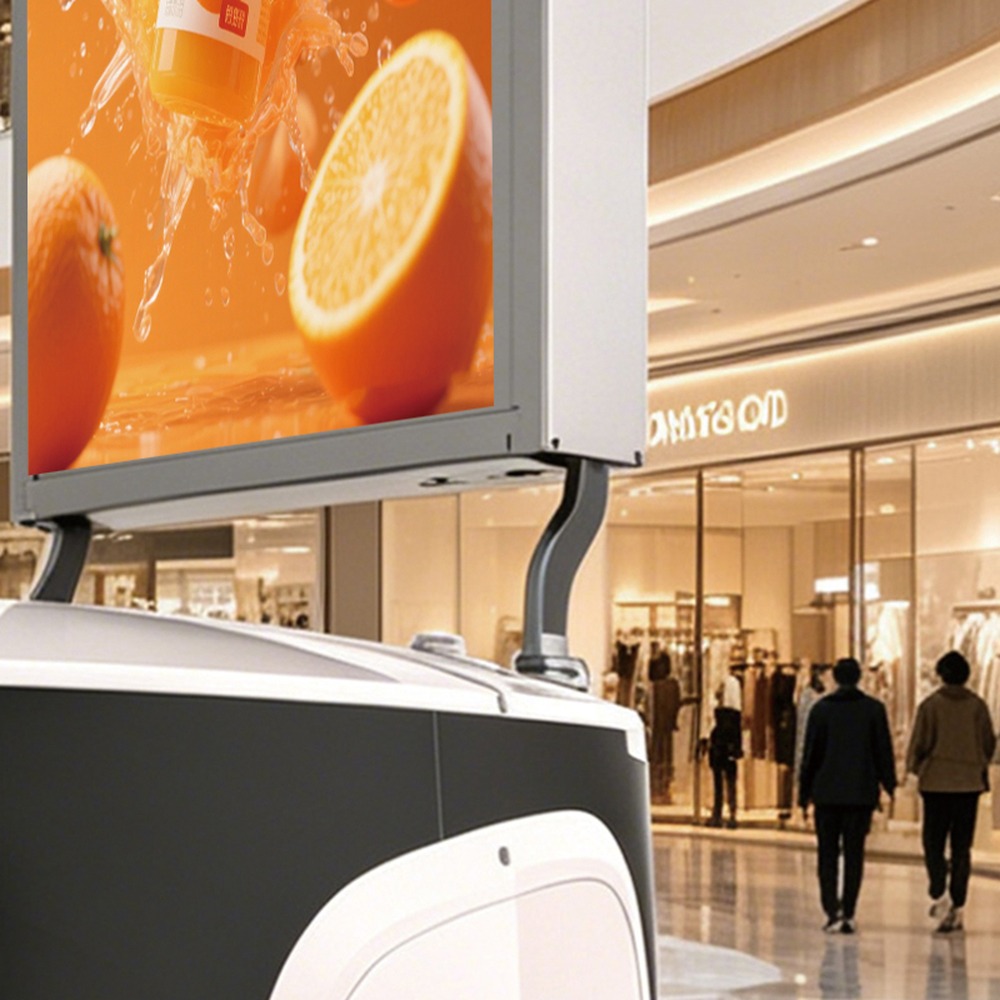

Quick-release screen

The display mounts and detaches quickly; without it the robot is a standard cleaning machine.

/05

Fixed display mode

The screen keeps playing while the robot is parked, doubling as a static advertising point.

/06

Video and image support

Plays multiple formats with video and image rotation for varied campaigns.

Best-fit applications

Use these applications as the first filter, then send your site conditions and operating schedule for model confirmation.

Shopping centresSupermarketsAirport terminalsExhibition centresTransport hubsFlagship stores

ACR-0520M

Technical specifications

Cleaning Platform

PlatformACR-0520 six-in-one platform (scrub / sweep / vacuum / dust-mop / self-clean / sanitise)

Cleaning capacityScrubbing ~1,197 m²/h; sweep-vacuum and dust-mop ~1,368 m²/h

Effective cleaning width520 mm scrubbing

Overall dimensions and weight (with screen)Confirmed per configuration sheet

Display Module

Screen size27 inch

Viewable area598 × 336.5 mm

Resolution / aspect1920 × 1080 (Full HD) / 16:9

Colour10-bit, 16.7 million colours

Screen weight9 kg

Stand dimensions407 × 426 × 126.5 mm

Power consumption (screen)20 W

Power inputAC 90–240 V, 50/60 Hz

OperationConnected to the robot

ControlRemote control

ContentVideo and images

Specifications are based on the manufacturer's technical confirmation sheet. Performance figures are obtained under defined test conditions; actual results depend on site conditions and operating mode. Products are continuously improved; specifications are subject to change without notice. Final configuration should be confirmed through the website contact form.
