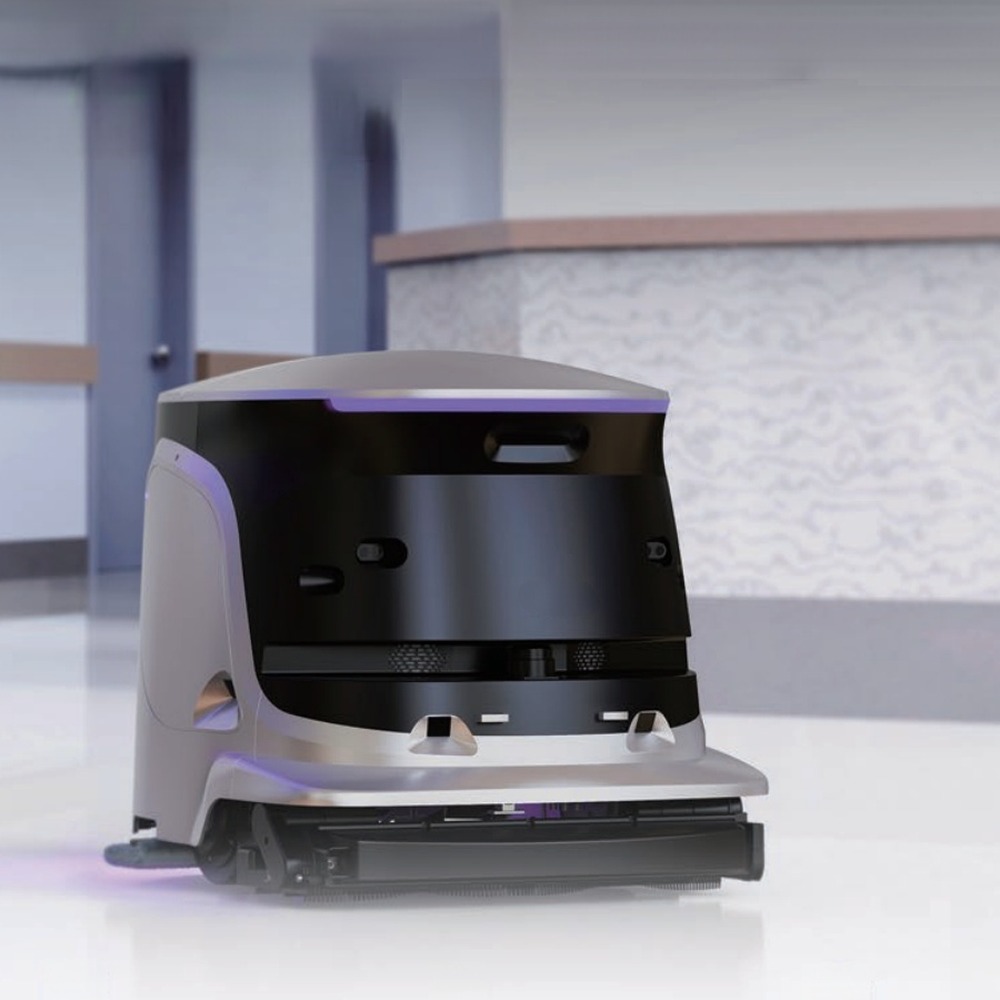

ACR-0520V Cleaning Robot with 222 nm Far-UVC Module

Indoor Cleaning

ACR-0520V Cleaning Robot with 222 nm Far-UVC Module

The ACR-0520V adds a 222 nm far-UVC light module to the ACR-0520 six-in-one cleaning platform, for hospital corridors, care homes and clinic reception areas where hygiene standards are high. While it sweeps, vacuums, scrubs and dries, sensors switch the UV light on only along the robot's travel path, adding a supplementary hygiene step after routine cleaning. Operating noise below 55 dB lets it work quietly while patients, residents and staff are present.

222nm far-UVC
<55dB noise
~3,000h lamp life
520mm scrubbing width

What it solves

Cleaning and surface treatment in one managed pass

/01
One machine, full cleaning cycle

Sweeping, vacuuming, scrubbing, drying, UVC exposure and self-cleaning in one pass; modular cleaning parts switch in one step.

/02
222 nm supplementary hygiene

Short-wavelength 222 nm light is applied to the floor surface after cleaning as a supplementary hygiene measure.

/03
Automatic exposure control

Sensors limit exposure to the robot's travel path and switch the lamp on and off automatically.

/04
Quiet operation

Below 55 dB, minimising disturbance to patients, residents and care staff.

/05
Durable and efficient

Expected lamp life of about 3,000 hours with a low-power supply module.

Best-fit applications

Use these applications as the first filter, then send your site conditions and operating schedule for model confirmation.

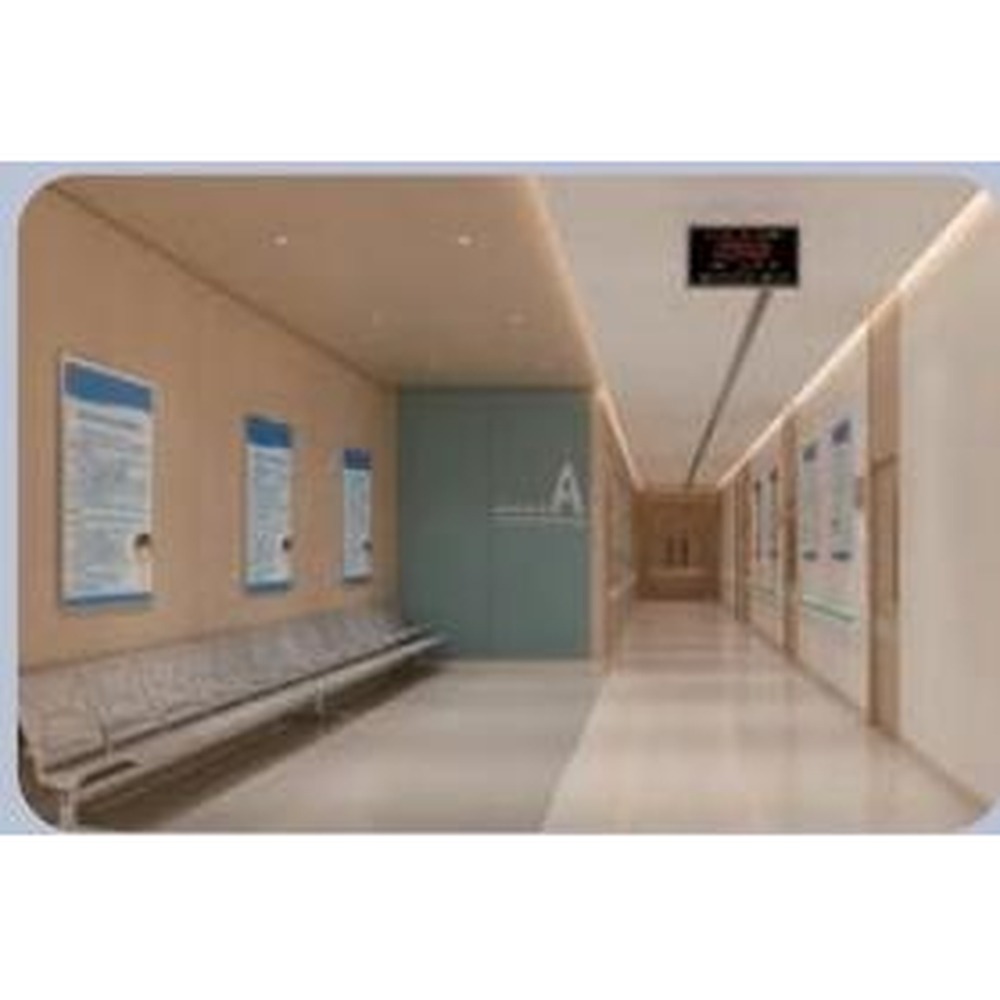

Hospital corridorsCare homesClinic reception areasRehabilitation centresOutpatient hallsCare facility public areas

ACR-0520V

Technical specifications

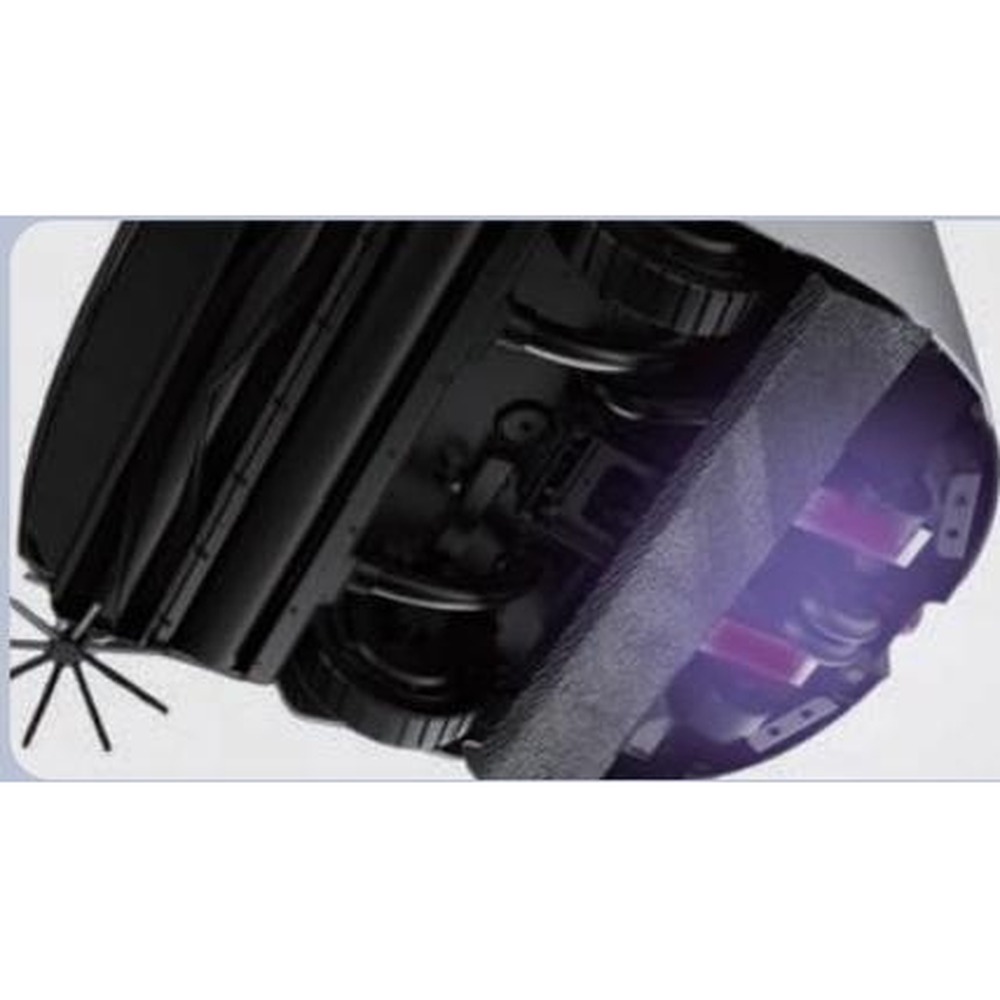

Far-UVC Module
Light source222 nm far-UVC
Exposure controlSensor-controlled, travel path only, automatic on/off
Expected lamp lifeapprox. 3,000 h
PowerLow-power supply module
Cleaning Platform (ACR-0520)
Cleaning functionsSweep / vacuum / scrub / dry / UVC / self-clean
Cleaning capacityScrubbing ~1,197 m²/h; sweep-vacuum and dust-mop ~1,368 m²/h
Effective cleaning width520 mm scrubbing
Clean / recovery tank22 L / 15 L
Runtime (scrubbing)approx. 4.5 h
Battery25.6 V / 40 Ah LiFePO₄
FiltrationHEPA H13
Operating noise< 55 dB
Dimensions & Weight
Dimensions / weightACR-0520 platform: 650 × 580 × 550 mm / 70 kg; UVC version confirmed per configuration sheet

Specifications are based on the manufacturer's technical confirmation sheet. Performance figures are obtained under defined test conditions; actual results depend on site conditions and operating mode. Products are continuously improved; specifications are subject to change without notice. Final configuration should be confirmed through the website contact form.
